| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003382_22915cztM0_level2.evt | modeM0/AS1A08_009T01_9000003382_22915cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,826,560 | 87,361,920 |
| Size | 429.9 MB | 83.3 MB |
| Events in quadrant A | 2,797,732 | 574,079 |
| Events in quadrant B | 2,896,934 | 582,309 |
| Events in quadrant C | 2,745,517 | 550,683 |
| Events in quadrant D | 4,815,795 | 529,757 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11956 | 1 |
| B | 0 | 12293 | 1 |
| C | 0 | 11945 | 1 |
| D | 0 | 18378 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5844 | 32 | 0.547570% |
| B | 5845 | 54 | 0.923867% |
| C | 5845 | 50 | 0.855432% |
| D | 5845 | 314 | 5.372113% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6979 | 5844 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6980 | 5845 | 2 | 2 | 0.03% | 0.03% |  |
| C | 6980 | 5845 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6980 | 5845 | 264 | 264 | 3.78% | 4.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 51231 | 354.62 | 712 | 698 | 142.5 |
| A | 13 | 254 | 9664 | 62.92 | 712 | 698 | 142.5 |
| A | 0 | 226 | 6314 | 39.41 | 712 | 698 | 142.5 |
| B | 0 | 190 | 74224 | 552.74 | 704 | 687 | 133.0 |
| B | 0 | 197 | 21239 | 154.48 | 704 | 687 | 133.0 |
| B | 10 | 247 | 16034 | 115.36 | 704 | 687 | 133.0 |
| C | 14 | 238 | 108556 | 698.93 | 668 | 670 | 154.4 |
| C | 7 | 247 | 21183 | 132.89 | 668 | 670 | 154.4 |
| C | 6 | 80 | 9439 | 56.81 | 668 | 670 | 154.4 |
| D | 1 | 52 | 814213 | 4918.04 | 676 | 654 | 165.4 |
| D | 13 | 172 | 801906 | 4843.64 | 676 | 654 | 165.4 |
| D | 13 | 174 | 409631 | 2472.3 | 676 | 654 | 165.4 |

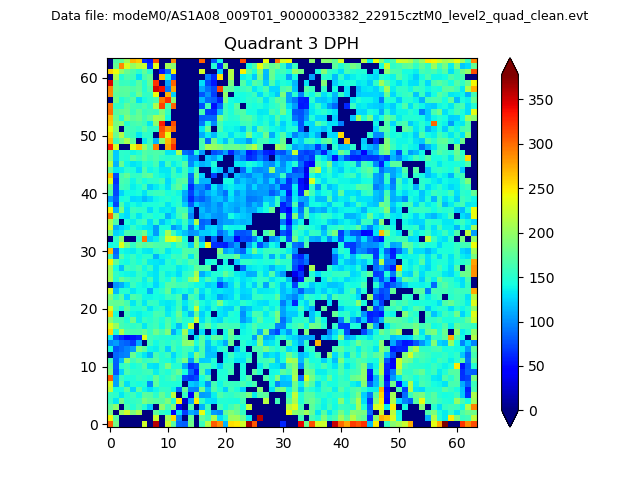

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

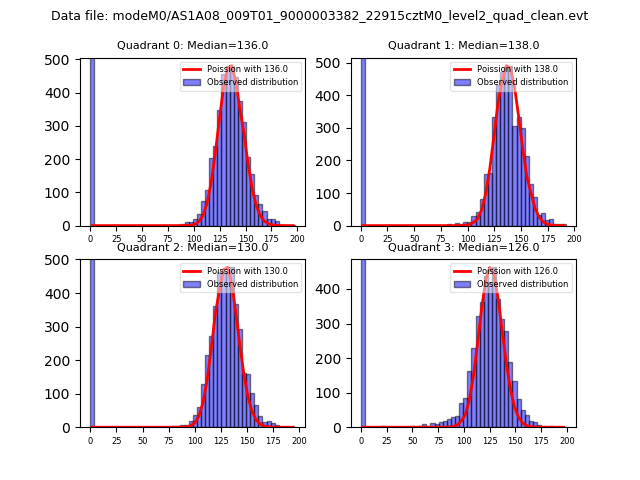

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

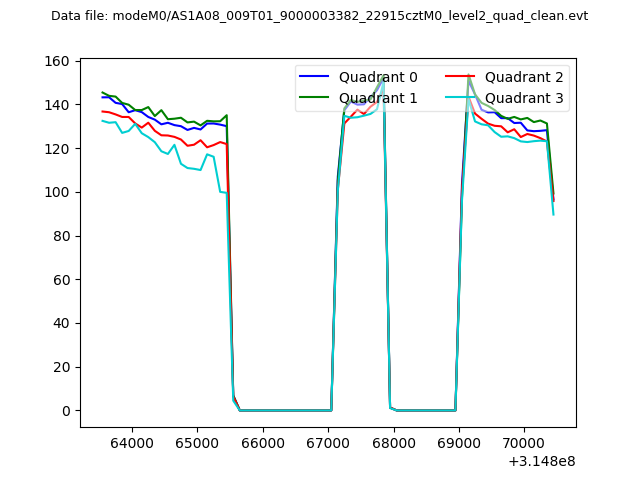

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

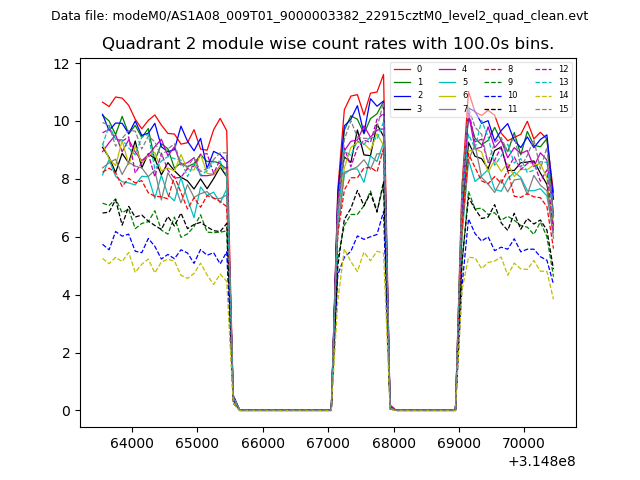

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

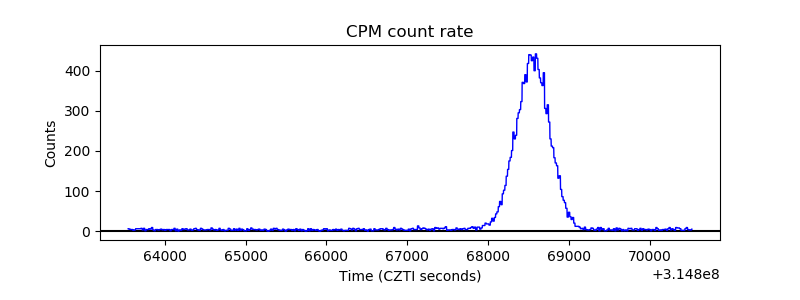

| _CPM_Rate |  |

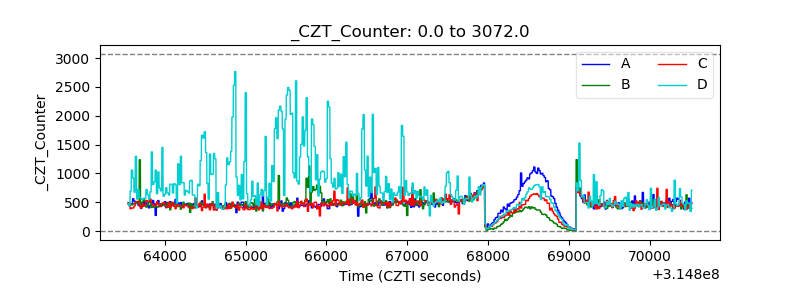

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

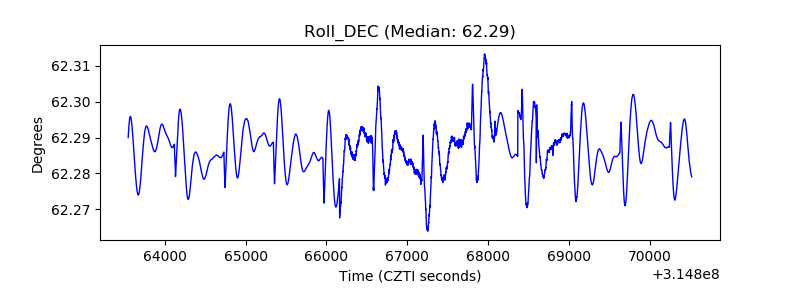

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
