| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_047T08_9000003384_22918cztM0_level2.evt | modeM0/AS1A07_047T08_9000003384_22918cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,449,600 | 119,370,240 |
| Size | 536.4 MB | 113.8 MB |
| Events in quadrant A | 3,487,344 | 798,404 |
| Events in quadrant B | 3,617,113 | 802,180 |
| Events in quadrant C | 3,438,807 | 766,988 |
| Events in quadrant D | 5,986,552 | 730,485 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15453 | 1 |
| B | 0 | 15564 | 1 |
| C | 0 | 15277 | 1 |
| D | 0 | 22921 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7421 | 151 | 2.034766% |
| B | 7422 | 180 | 2.425222% |
| C | 7422 | 172 | 2.317435% |
| D | 7421 | 502 | 6.764587% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

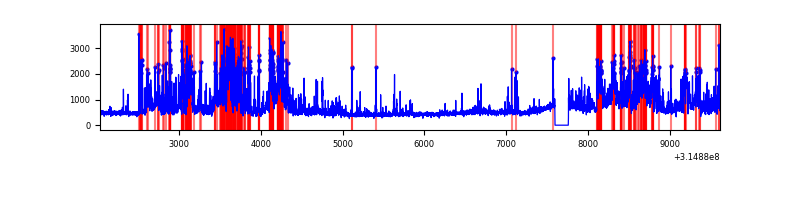

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 7422 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7587 | 7423 | 8 | 8 | 0.11% | 0.11% |  |
| C | 7587 | 7423 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7586 | 7422 | 363 | 363 | 4.79% | 4.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 61382 | 337.13 | 881 | 859 | 179.5 |
| A | 0 | 23 | 21071 | 112.59 | 881 | 859 | 179.5 |
| A | 13 | 254 | 13080 | 68.07 | 881 | 859 | 179.5 |
| B | 3 | 64 | 70515 | 417.9 | 873 | 850 | 166.7 |
| B | 0 | 228 | 31534 | 184.06 | 873 | 850 | 166.7 |
| B | 0 | 190 | 31520 | 183.98 | 873 | 850 | 166.7 |
| C | 14 | 238 | 130677 | 660.67 | 838 | 840 | 196.5 |
| C | 6 | 80 | 21698 | 106.13 | 838 | 840 | 196.5 |
| C | 7 | 247 | 8600 | 39.48 | 838 | 840 | 196.5 |
| D | 13 | 172 | 1393404 | 6818.63 | 842 | 817 | 204.2 |
| D | 1 | 52 | 609993 | 2982.75 | 842 | 817 | 204.2 |
| D | 12 | 233 | 250624 | 1223.15 | 842 | 817 | 204.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

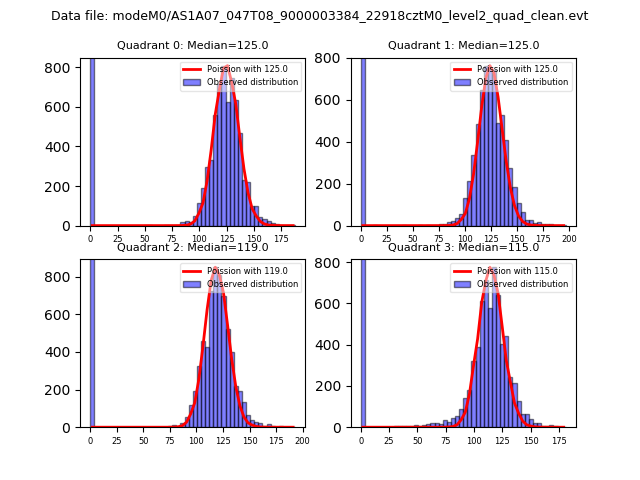

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

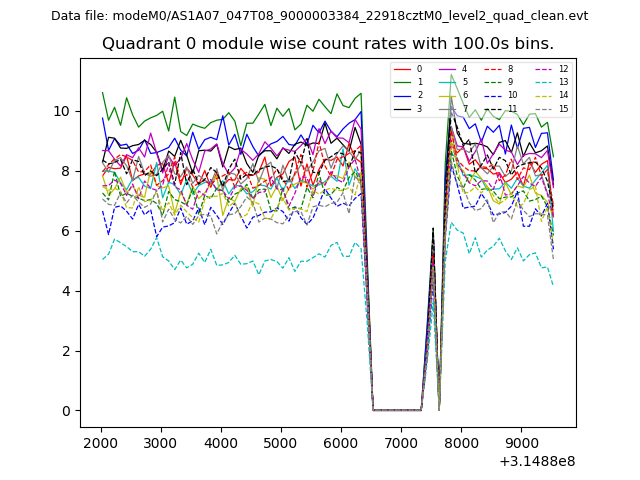

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

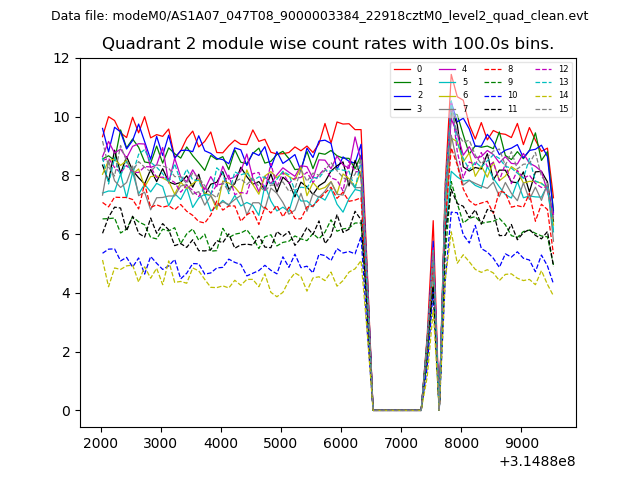

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

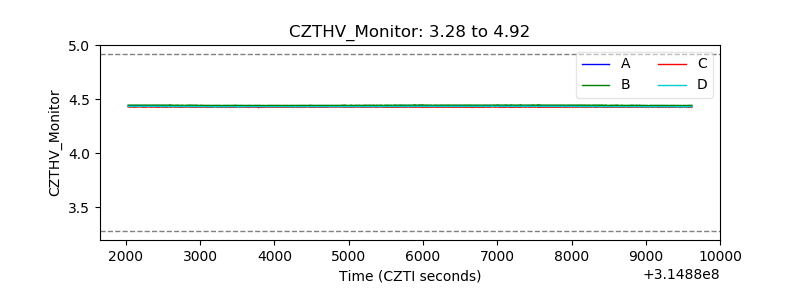

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

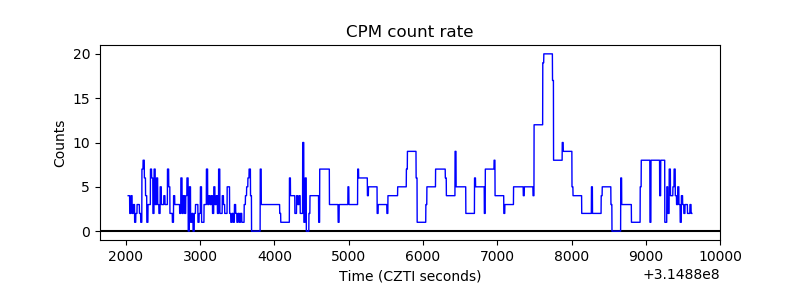

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

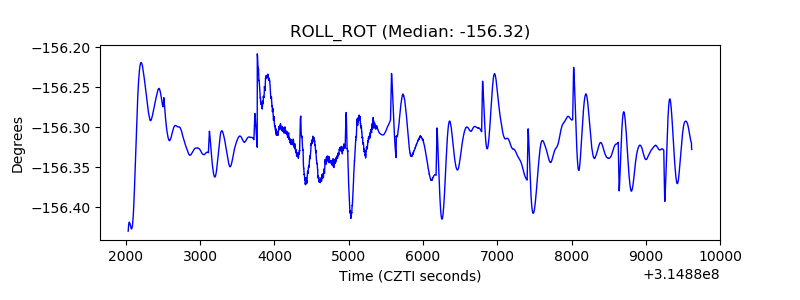

| _ROLL_ROT |  |
| _Roll_DEC |  |

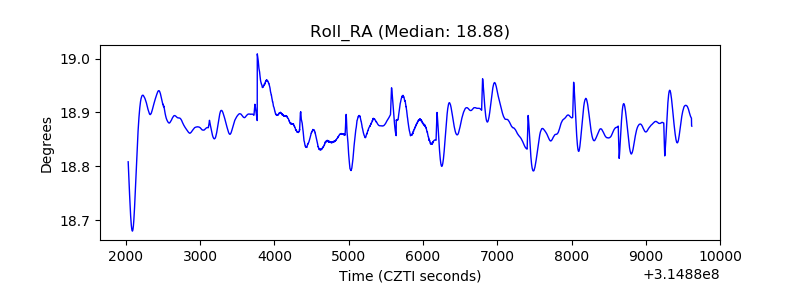

| _Roll_RA |  |
| Veto Counter |  |
