| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_170T01_9000003388_22927cztM0_level2.evt | modeM0/AS1T03_170T01_9000003388_22927cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,148,160 | 86,814,720 |
| Size | 496.1 MB | 82.8 MB |
| Events in quadrant A | 3,246,791 | 560,000 |
| Events in quadrant B | 3,395,428 | 577,767 |
| Events in quadrant C | 3,404,034 | 555,665 |
| Events in quadrant D | 5,280,867 | 497,262 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13297 | 2 |
| B | 0 | 13806 | 2 |
| C | 0 | 13829 | 2 |
| D | 0 | 19799 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6277 | 28 | 0.446073% |
| B | 6277 | 47 | 0.748765% |
| C | 6276 | 86 | 1.370300% |
| D | 6276 | 501 | 7.982792% |

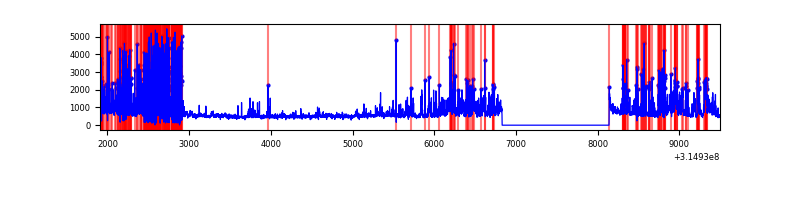

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6278 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7587 | 6278 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7586 | 6277 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7586 | 6277 | 367 | 367 | 4.84% | 5.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10496 | 58.45 | 842 | 827 | 165.4 |
| A | 0 | 226 | 7225 | 38.68 | 842 | 827 | 165.4 |
| A | 3 | 137 | 6553 | 34.61 | 842 | 827 | 165.4 |
| B | 0 | 190 | 29615 | 184.95 | 851 | 834 | 155.6 |
| B | 12 | 111 | 17900 | 109.67 | 851 | 834 | 155.6 |
| B | 11 | 111 | 15877 | 96.67 | 851 | 834 | 155.6 |
| C | 14 | 238 | 133927 | 704.0 | 830 | 840 | 189.0 |
| C | 7 | 247 | 26575 | 136.13 | 830 | 840 | 189.0 |
| C | 13 | 61 | 5926 | 26.9 | 830 | 840 | 189.0 |
| D | 1 | 52 | 1910370 | 9993.82 | 800 | 779 | 191.1 |
| D | 13 | 153 | 254852 | 1329.69 | 800 | 779 | 191.1 |
| D | 12 | 233 | 28193 | 143.47 | 800 | 779 | 191.1 |

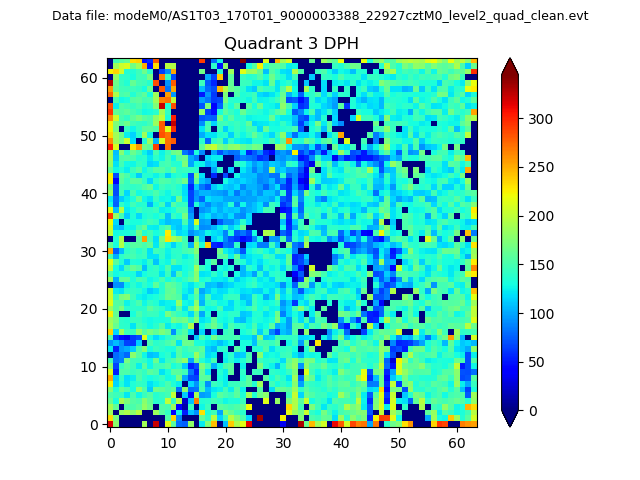

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

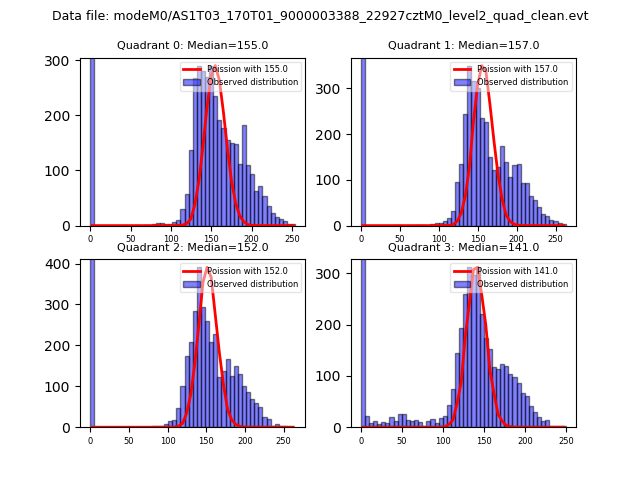

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

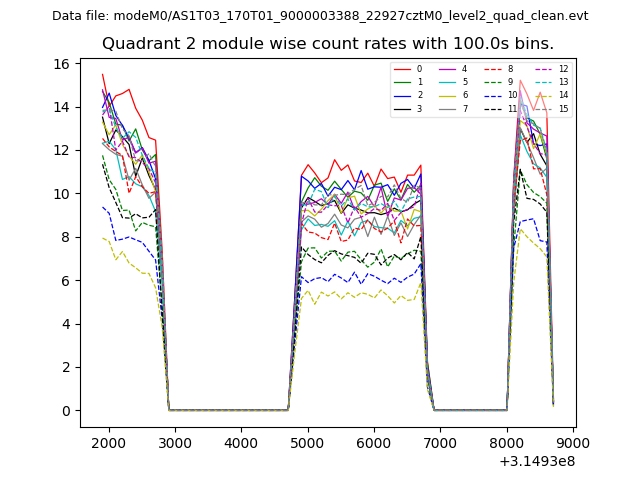

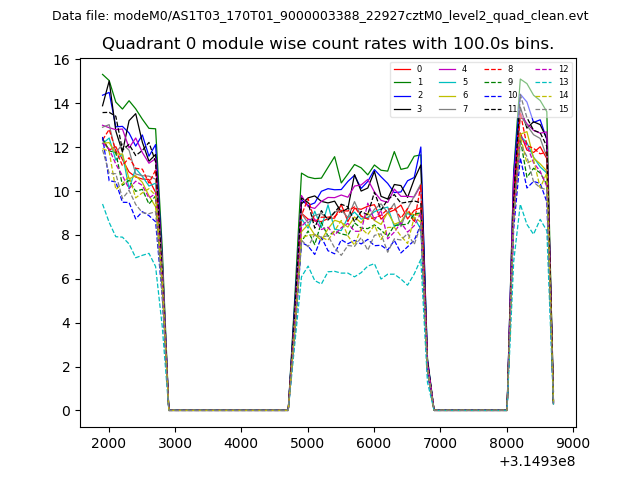

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

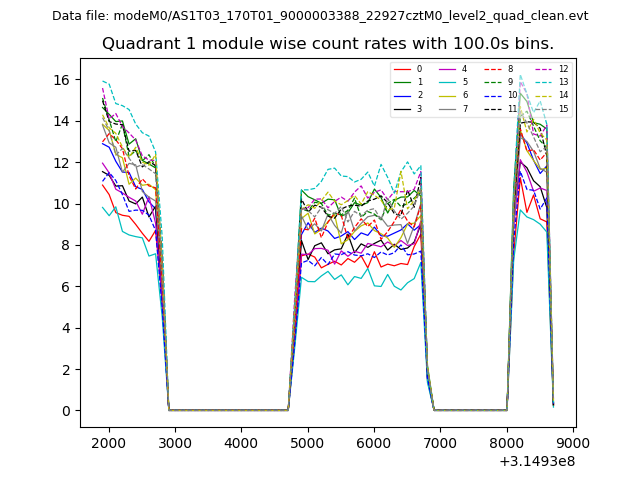

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

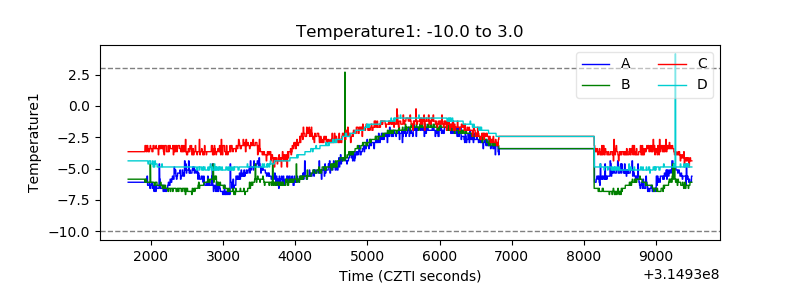

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

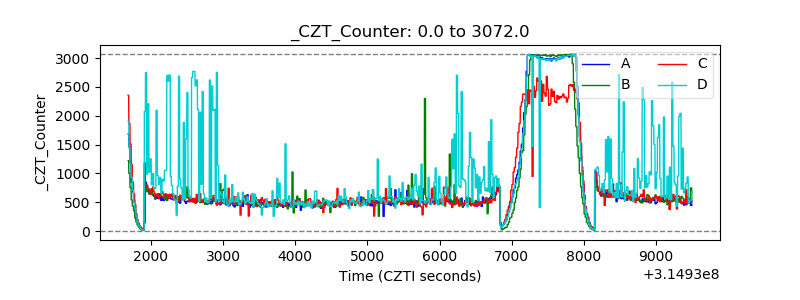

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
