| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_170T01_9000003388_22932cztM0_level2.evt | modeM0/AS1T03_170T01_9000003388_22932cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,288,640 | 95,860,800 |
| Size | 548.6 MB | 91.4 MB |
| Events in quadrant A | 3,536,204 | 605,093 |
| Events in quadrant B | 3,692,481 | 611,924 |
| Events in quadrant C | 3,609,494 | 592,889 |
| Events in quadrant D | 6,074,731 | 570,130 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15411 | 2 |
| B | 0 | 15720 | 2 |
| C | 0 | 15575 | 2 |
| D | 0 | 23180 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7516 | 128 | 1.703034% |
| B | 7517 | 147 | 1.955567% |
| C | 7517 | 156 | 2.075296% |
| D | 7517 | 444 | 5.906612% |

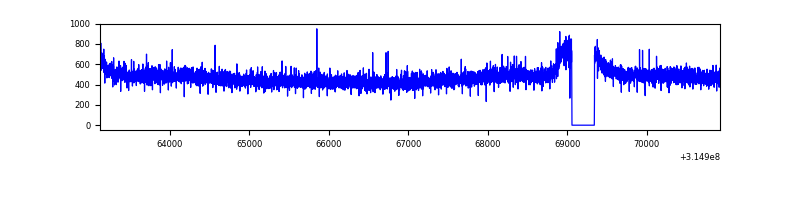

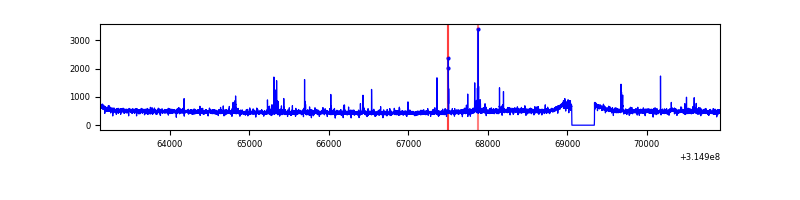

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7801 | 7517 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7802 | 7518 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7802 | 7518 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7802 | 7518 | 195 | 195 | 2.50% | 2.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12795 | 64.55 | 915 | 895 | 184.3 |
| A | 3 | 137 | 8056 | 38.85 | 915 | 895 | 184.3 |
| A | 0 | 226 | 7670 | 36.75 | 915 | 895 | 184.3 |
| B | 3 | 64 | 34272 | 191.39 | 910 | 886 | 174.4 |
| B | 0 | 190 | 23272 | 128.33 | 910 | 886 | 174.4 |
| B | 12 | 111 | 21100 | 115.88 | 910 | 886 | 174.4 |
| C | 14 | 238 | 138627 | 677.76 | 878 | 883 | 203.2 |
| C | 7 | 247 | 29133 | 139.0 | 878 | 883 | 203.2 |
| C | 6 | 80 | 15476 | 71.8 | 878 | 883 | 203.2 |
| D | 13 | 174 | 971296 | 4546.43 | 879 | 854 | 213.5 |
| D | 1 | 52 | 804655 | 3765.74 | 879 | 854 | 213.5 |
| D | 7 | 238 | 484486 | 2265.77 | 879 | 854 | 213.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

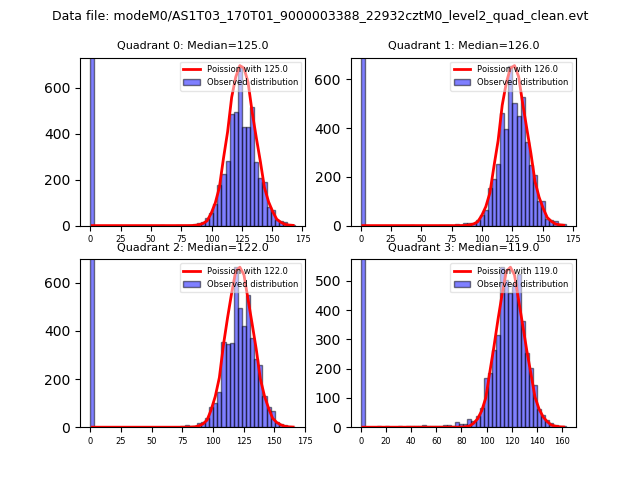

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

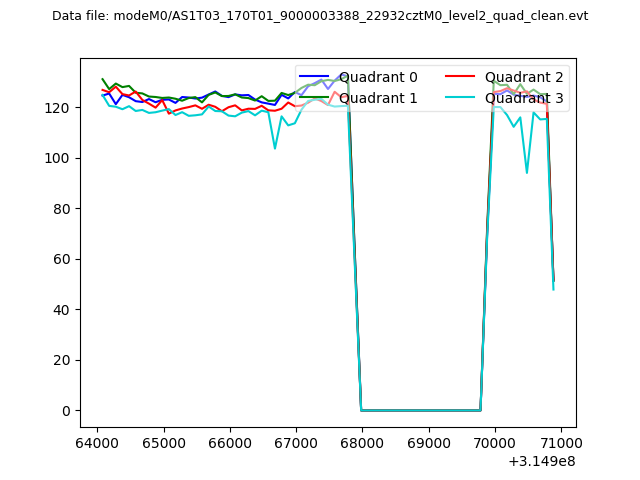

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

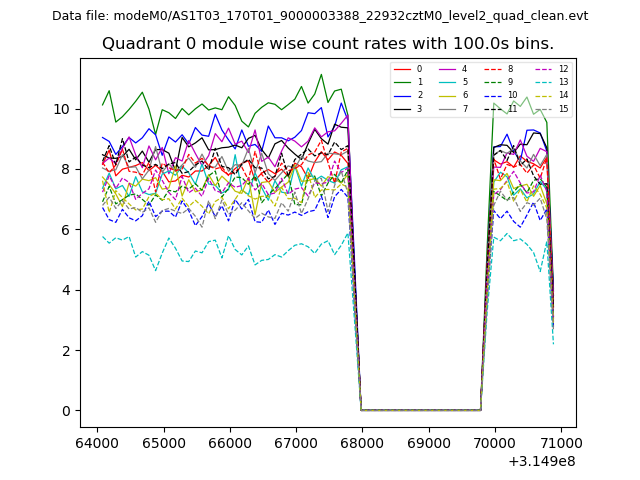

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

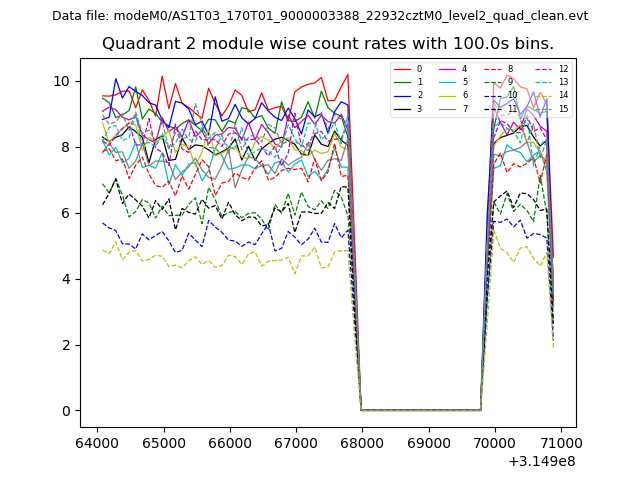

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

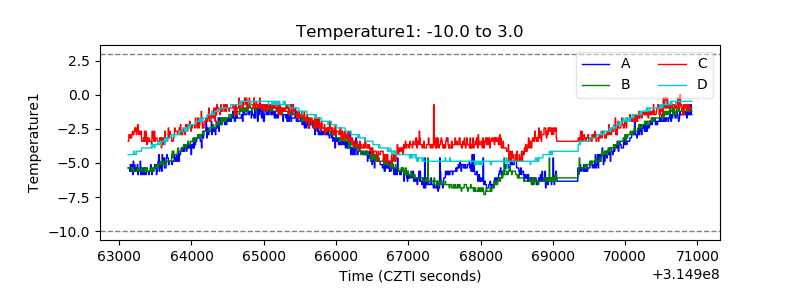

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

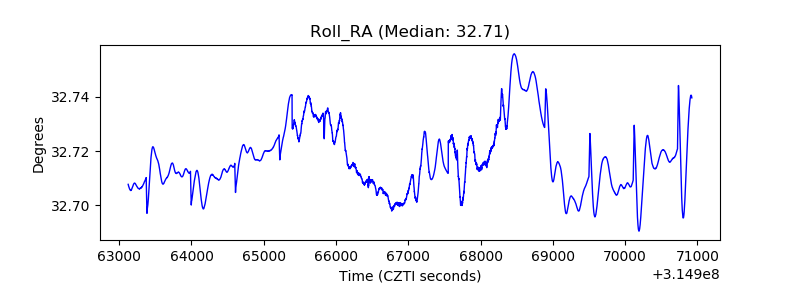

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
