| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003390_22940cztM0_level2.evt | modeM0/AS1A08_009T01_9000003390_22940cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,195,840 | 110,401,920 |
| Size | 498.0 MB | 105.3 MB |
| Events in quadrant A | 2,970,513 | 744,591 |
| Events in quadrant B | 3,068,031 | 769,128 |
| Events in quadrant C | 3,167,356 | 733,750 |
| Events in quadrant D | 6,187,910 | 663,062 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12987 | 2 |
| B | 0 | 13211 | 3 |
| C | 0 | 13547 | 2 |
| D | 0 | 22688 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6196 | 32 | 0.516462% |
| B | 6195 | 34 | 0.548830% |
| C | 6195 | 124 | 2.001614% |
| D | 6195 | 946 | 15.270379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7421 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7420 | 6196 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7420 | 6196 | 31 | 31 | 0.42% | 0.50% |  |
| D | 7420 | 6195 | 756 | 756 | 10.19% | 12.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10345 | 62.53 | 770 | 753 | 153.4 |
| A | 0 | 226 | 6631 | 38.32 | 770 | 753 | 153.4 |
| A | 3 | 137 | 6386 | 36.72 | 770 | 753 | 153.4 |
| B | 12 | 111 | 17172 | 113.5 | 776 | 759 | 144.6 |
| B | 11 | 111 | 14716 | 96.52 | 776 | 759 | 144.6 |
| B | 14 | 111 | 13301 | 86.73 | 776 | 759 | 144.6 |
| C | 14 | 238 | 119745 | 695.75 | 747 | 752 | 171.0 |
| C | 0 | 10 | 91605 | 531.22 | 747 | 752 | 171.0 |
| C | 10 | 22 | 36645 | 209.87 | 747 | 752 | 171.0 |
| D | 1 | 239 | 1813238 | 10606.81 | 703 | 683 | 170.9 |
| D | 1 | 52 | 900701 | 5266.78 | 703 | 683 | 170.9 |
| D | 13 | 172 | 373034 | 2178.94 | 703 | 683 | 170.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

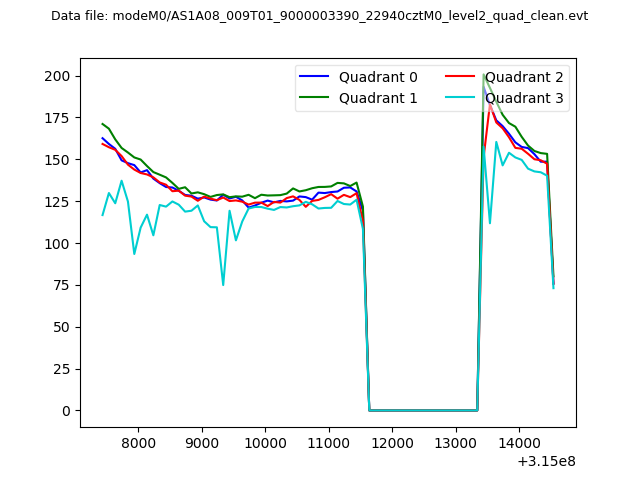

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

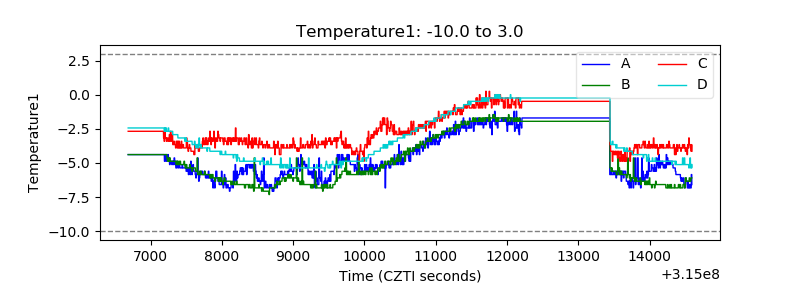

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

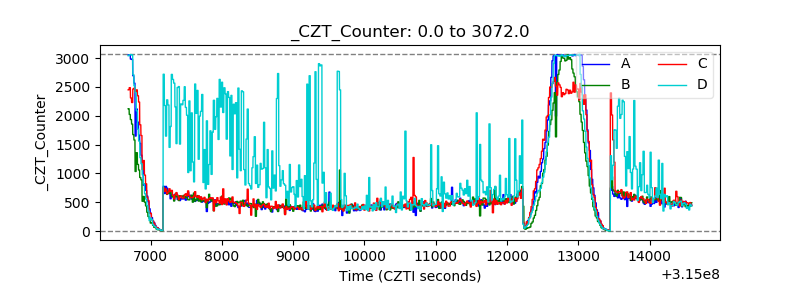

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
