| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003390_22955cztM0_level2.evt | modeM0/AS1A08_009T01_9000003390_22955cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,276,480 | 114,563,520 |
| Size | 438.0 MB | 109.3 MB |
| Events in quadrant A | 3,007,034 | 767,899 |
| Events in quadrant B | 3,177,342 | 794,431 |
| Events in quadrant C | 3,097,580 | 760,254 |
| Events in quadrant D | 4,208,540 | 716,980 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13007 | 2 |
| B | 0 | 13508 | 2 |
| C | 0 | 13315 | 2 |
| D | 0 | 16743 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 26 | 0.421872% |
| B | 6163 | 50 | 0.811293% |
| C | 6163 | 85 | 1.379198% |
| D | 6163 | 319 | 5.176051% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7433 | 6164 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7433 | 6164 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7433 | 6164 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7433 | 6164 | 223 | 223 | 3.00% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 13196 | 80.79 | 774 | 759 | 153.9 |
| A | 13 | 254 | 10622 | 64.07 | 774 | 759 | 153.9 |
| A | 6 | 16 | 9080 | 54.05 | 774 | 759 | 153.9 |
| B | 0 | 190 | 79738 | 548.29 | 781 | 763 | 144.0 |
| B | 4 | 216 | 18360 | 122.17 | 781 | 763 | 144.0 |
| B | 12 | 111 | 16932 | 112.25 | 781 | 763 | 144.0 |
| C | 14 | 238 | 122597 | 705.02 | 754 | 759 | 172.8 |
| C | 0 | 10 | 23294 | 130.4 | 754 | 759 | 172.8 |
| C | 2 | 16 | 10929 | 58.85 | 754 | 759 | 172.8 |
| D | 1 | 52 | 950583 | 5375.24 | 737 | 717 | 176.7 |
| D | 13 | 153 | 136397 | 767.81 | 737 | 717 | 176.7 |
| D | 13 | 174 | 102594 | 576.52 | 737 | 717 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

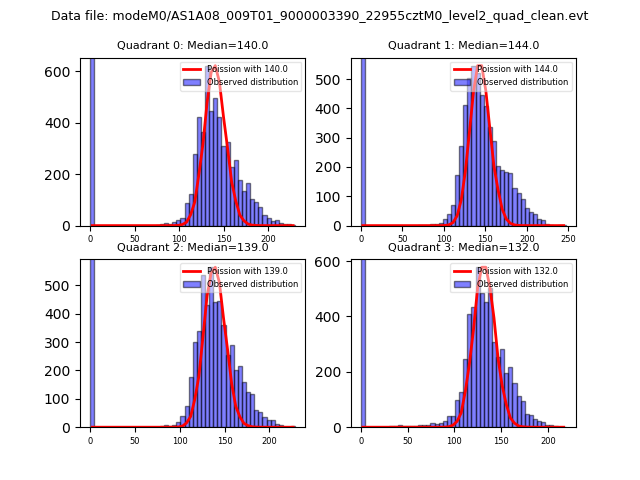

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
