| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003390_22956cztM0_level2.evt | modeM0/AS1A08_009T01_9000003390_22956cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,628,480 | 114,042,240 |
| Size | 471.7 MB | 108.8 MB |
| Events in quadrant A | 3,043,206 | 773,565 |
| Events in quadrant B | 3,163,680 | 800,805 |
| Events in quadrant C | 3,295,922 | 753,163 |
| Events in quadrant D | 5,056,092 | 693,487 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12983 | 2 |
| B | 0 | 13322 | 2 |
| C | 0 | 13780 | 2 |
| D | 0 | 19351 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6203 | 21 | 0.338546% |
| B | 6203 | 36 | 0.580364% |
| C | 6203 | 114 | 1.837820% |
| D | 6203 | 498 | 8.028373% |

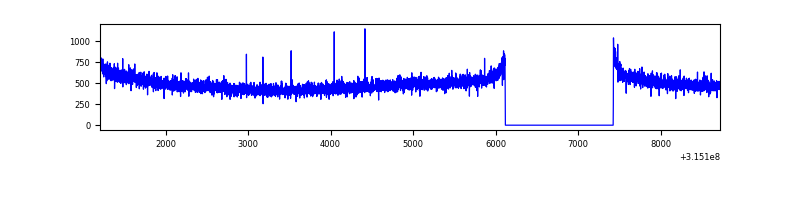

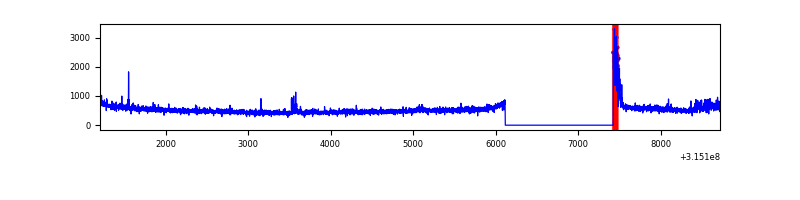

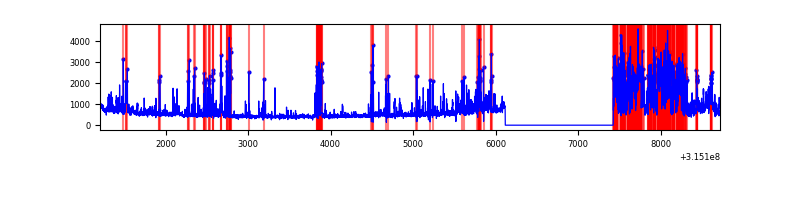

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7513 | 6204 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7513 | 6204 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7513 | 6204 | 20 | 20 | 0.27% | 0.32% |  |
| D | 7513 | 6204 | 464 | 464 | 6.18% | 7.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10643 | 62.64 | 789 | 776 | 157.5 |
| A | 0 | 226 | 6700 | 37.61 | 789 | 776 | 157.5 |
| A | 3 | 137 | 6199 | 34.43 | 789 | 776 | 157.5 |
| B | 0 | 190 | 24084 | 158.6 | 795 | 777 | 147.0 |
| B | 12 | 111 | 17062 | 110.82 | 795 | 777 | 147.0 |
| B | 11 | 111 | 14983 | 96.67 | 795 | 777 | 147.0 |
| C | 0 | 10 | 184893 | 1060.58 | 759 | 766 | 173.6 |
| C | 14 | 238 | 124359 | 711.9 | 759 | 766 | 173.6 |
| C | 2 | 16 | 21392 | 118.81 | 759 | 766 | 173.6 |
| D | 1 | 52 | 1867706 | 10542.61 | 738 | 719 | 177.1 |
| D | 13 | 153 | 119939 | 673.22 | 738 | 719 | 177.1 |
| D | 13 | 172 | 108192 | 606.88 | 738 | 719 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

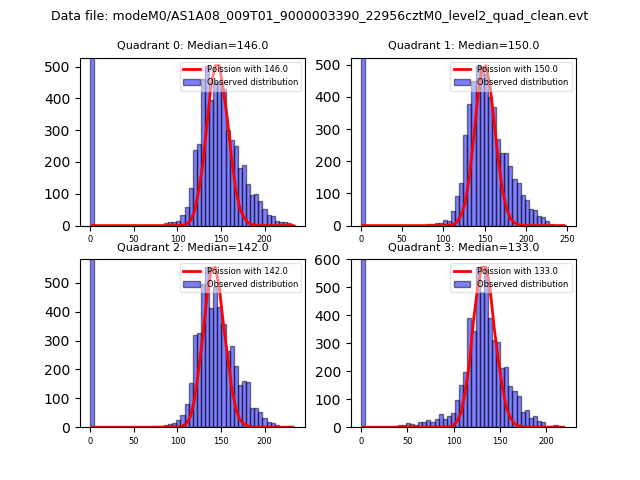

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

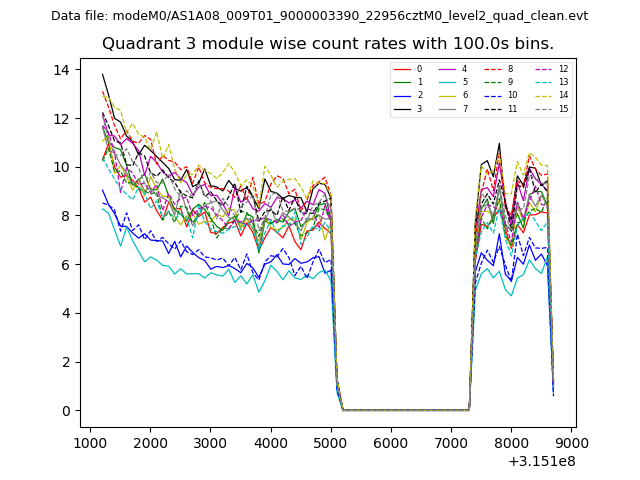

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

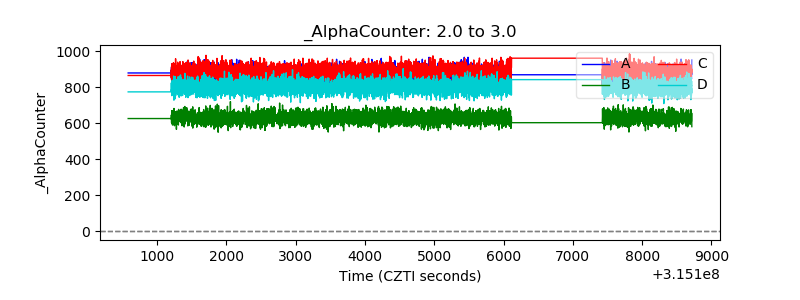

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

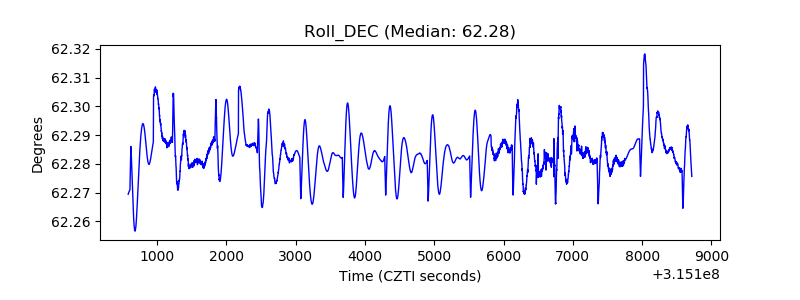

| _Roll_DEC |  |

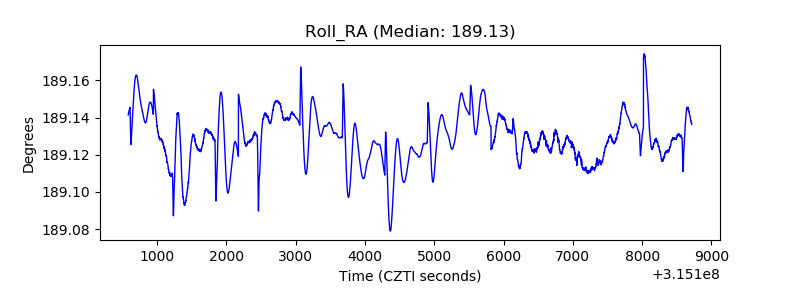

| _Roll_RA |  |
| Veto Counter |  |
