| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003390_22957cztM0_level2.evt | modeM0/AS1A08_009T01_9000003390_22957cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,142,080 | 105,647,040 |
| Size | 526.6 MB | 100.8 MB |
| Events in quadrant A | 3,040,873 | 715,025 |
| Events in quadrant B | 3,164,533 | 737,967 |
| Events in quadrant C | 3,653,509 | 682,966 |
| Events in quadrant D | 6,440,189 | 628,204 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12941 | 2 |
| B | 0 | 13313 | 2 |
| C | 0 | 15046 | 2 |
| D | 0 | 23381 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 21 | 0.337025% |
| B | 6231 | 50 | 0.802439% |
| C | 6231 | 181 | 2.904831% |
| D | 6230 | 830 | 13.322632% |

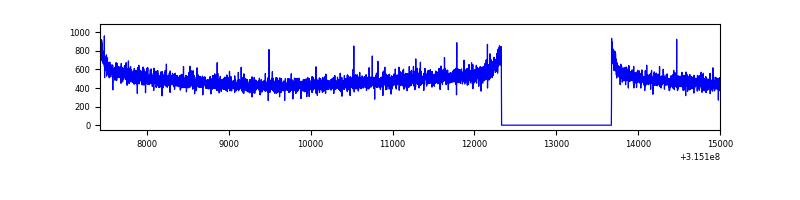

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6232 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7576 | 6232 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7576 | 6232 | 48 | 48 | 0.63% | 0.77% |  |
| D | 7575 | 6231 | 766 | 766 | 10.11% | 12.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10489 | 62.4 | 787 | 775 | 155.7 |
| A | 0 | 226 | 6779 | 38.57 | 787 | 775 | 155.7 |
| A | 3 | 137 | 6277 | 35.34 | 787 | 775 | 155.7 |
| B | 0 | 190 | 57420 | 387.47 | 789 | 771 | 146.2 |
| B | 12 | 111 | 17102 | 111.7 | 789 | 771 | 146.2 |
| B | 0 | 245 | 15395 | 100.03 | 789 | 771 | 146.2 |
| C | 0 | 10 | 604746 | 3556.65 | 742 | 747 | 169.8 |
| C | 14 | 238 | 122566 | 717.33 | 742 | 747 | 169.8 |
| C | 2 | 16 | 14009 | 78.09 | 742 | 747 | 169.8 |
| D | 1 | 52 | 3369390 | 19548.25 | 716 | 696 | 172.3 |
| D | 13 | 153 | 211690 | 1224.38 | 716 | 696 | 172.3 |
| D | 13 | 172 | 64217 | 368.6 | 716 | 696 | 172.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

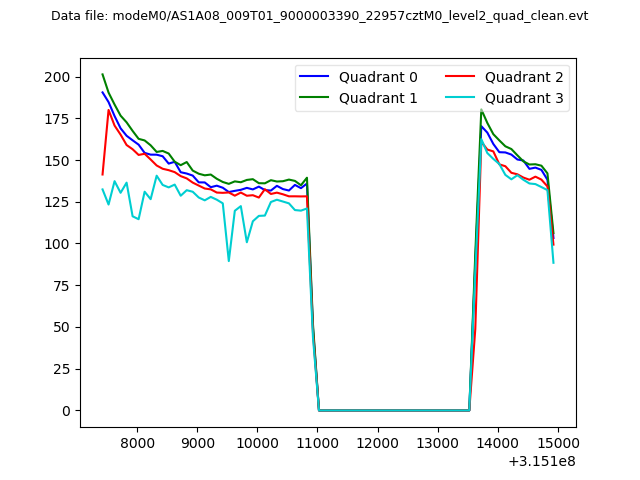

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

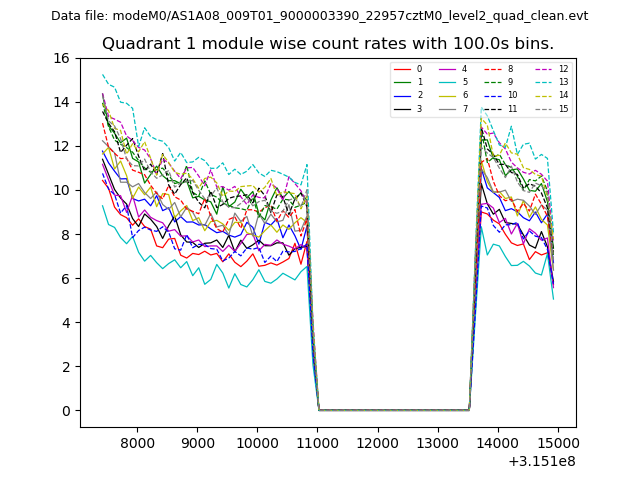

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

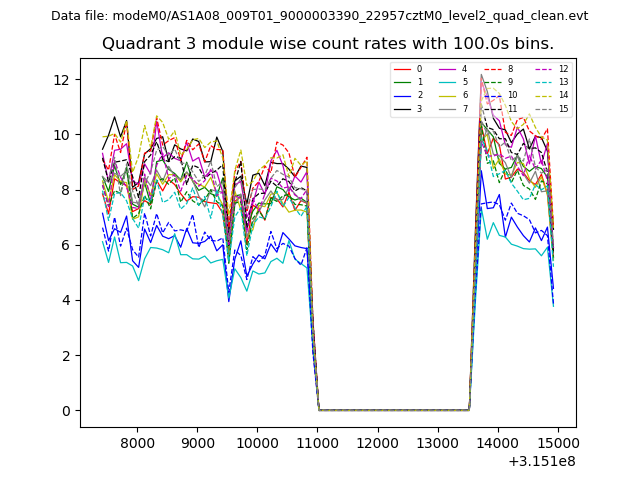

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

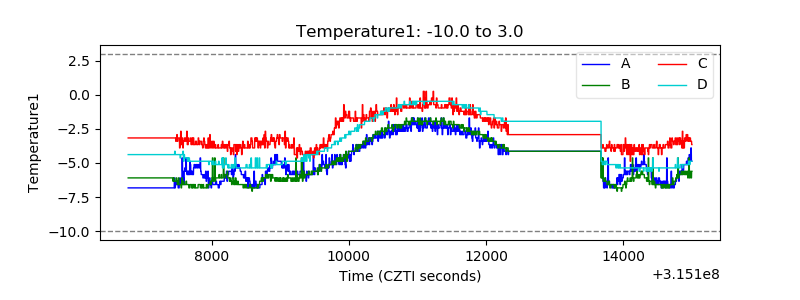

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

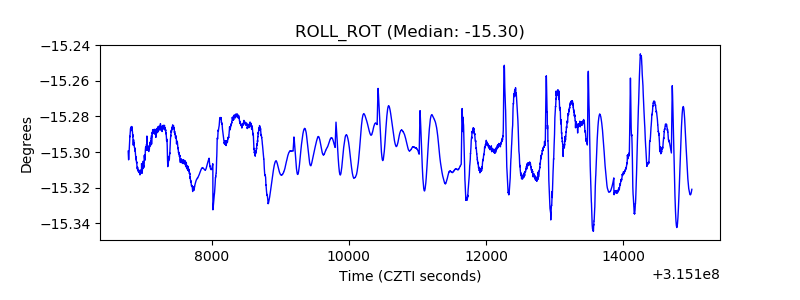

| _ROLL_ROT |  |
| _Roll_DEC |  |

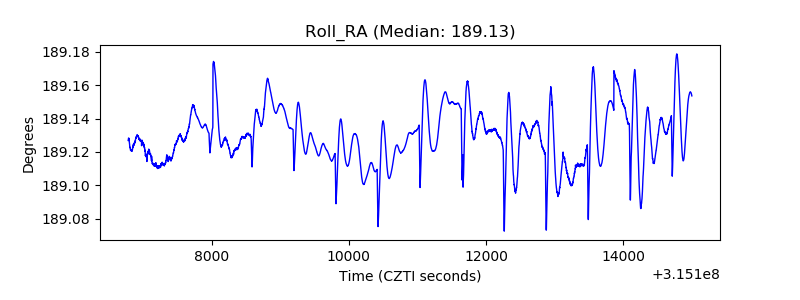

| _Roll_RA |  |
| Veto Counter |  |
