| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_062T01_9000003392_22966cztM0_level2.evt | modeM0/AS1A07_062T01_9000003392_22966cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,816,960 | 91,866,240 |
| Size | 444.2 MB | 87.6 MB |
| Events in quadrant A | 3,170,349 | 597,169 |
| Events in quadrant B | 3,121,353 | 599,543 |
| Events in quadrant C | 3,178,722 | 571,368 |
| Events in quadrant D | 4,193,734 | 558,907 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13819 | 2 |
| B | 0 | 13503 | 2 |
| C | 0 | 13629 | 2 |
| D | 0 | 17020 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6525 | 35 | 0.536398% |
| B | 6525 | 31 | 0.475096% |
| C | 6525 | 71 | 1.088123% |
| D | 6525 | 162 | 2.482759% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

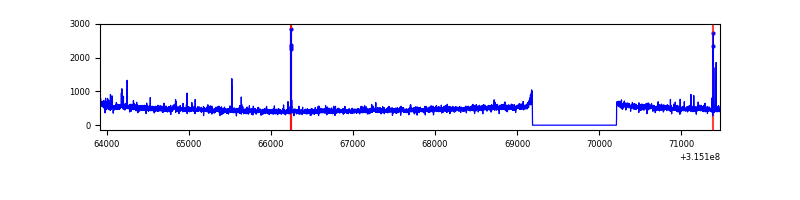

| A | 7550 | 6526 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7550 | 6526 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7550 | 6526 | 8 | 8 | 0.11% | 0.12% |  |

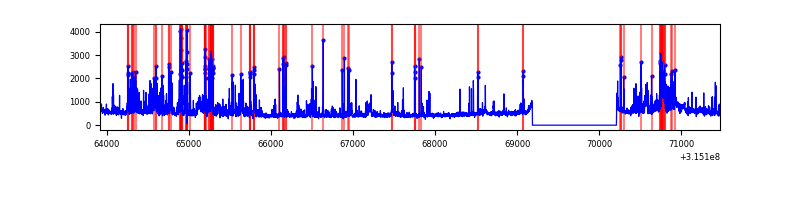

| D | 7550 | 6526 | 114 | 114 | 1.51% | 1.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 127918 | 806.47 | 779 | 763 | 157.7 |
| A | 13 | 170 | 37310 | 231.8 | 779 | 763 | 157.7 |
| A | 13 | 254 | 11031 | 65.12 | 779 | 763 | 157.7 |
| B | 0 | 189 | 21730 | 142.18 | 776 | 757 | 147.5 |
| B | 4 | 216 | 18415 | 119.71 | 776 | 757 | 147.5 |
| B | 12 | 111 | 17608 | 114.24 | 776 | 757 | 147.5 |
| C | 14 | 238 | 118746 | 674.26 | 748 | 751 | 175.0 |
| C | 0 | 10 | 77420 | 438.11 | 748 | 751 | 175.0 |
| C | 7 | 247 | 37779 | 211.59 | 748 | 751 | 175.0 |
| D | 1 | 52 | 620449 | 3403.21 | 759 | 738 | 182.1 |
| D | 13 | 153 | 173955 | 951.24 | 759 | 738 | 182.1 |
| D | 13 | 172 | 115088 | 627.97 | 759 | 738 | 182.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

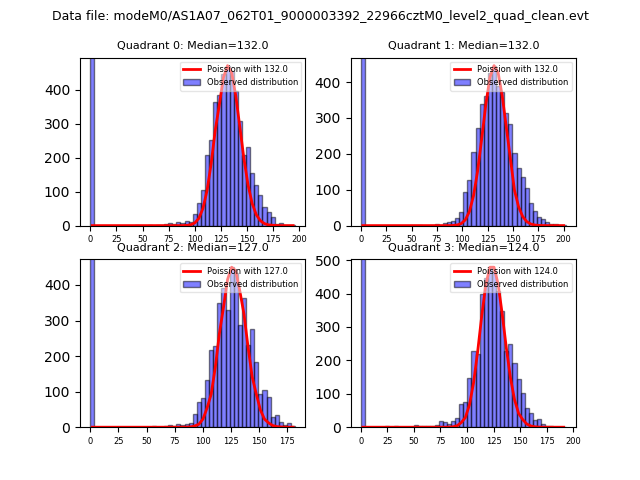

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

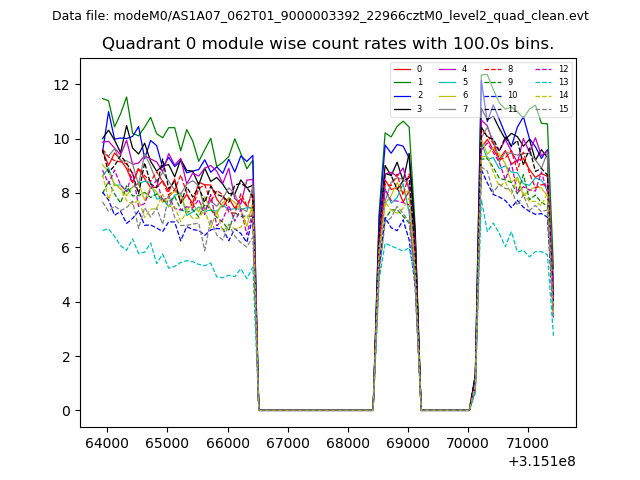

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

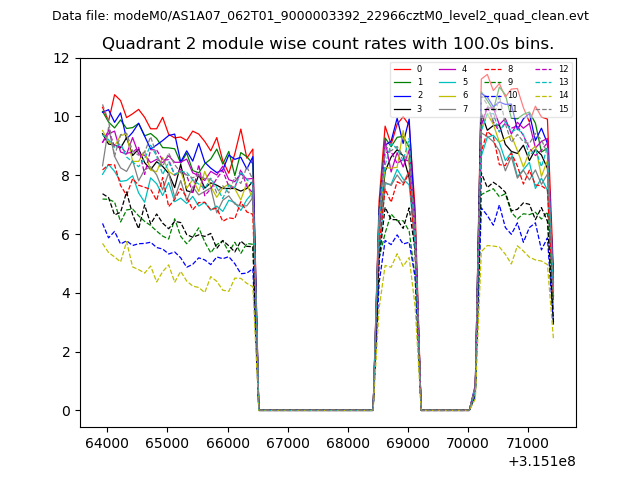

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

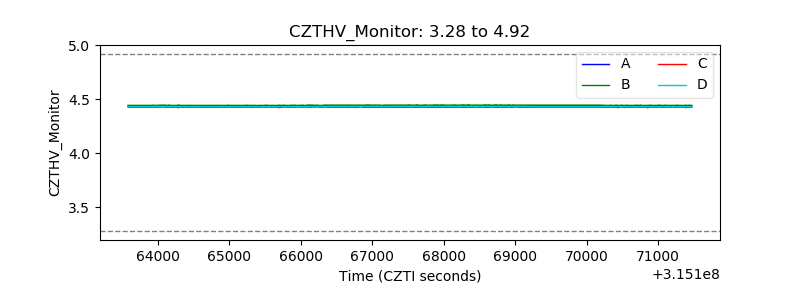

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

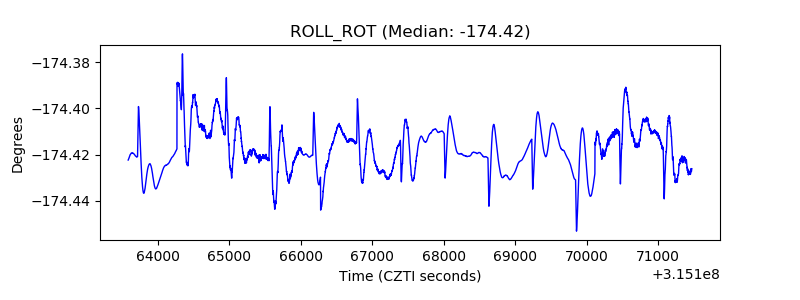

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

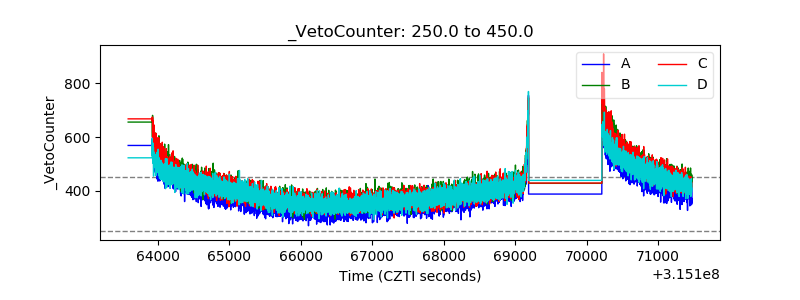

| Veto Counter |  |
