| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_062T01_9000003392_22970cztM0_level2.evt | modeM0/AS1A07_062T01_9000003392_22970cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,756,160 | 91,313,280 |
| Size | 423.2 MB | 87.1 MB |
| Events in quadrant A | 3,146,767 | 598,455 |
| Events in quadrant B | 3,171,115 | 616,755 |
| Events in quadrant C | 3,294,104 | 570,762 |
| Events in quadrant D | 3,413,683 | 554,443 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13175 | 2 |
| B | 0 | 13205 | 2 |
| C | 0 | 13520 | 3 |
| D | 0 | 14118 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6086 | 27 | 0.443641% |
| B | 6086 | 36 | 0.591522% |
| C | 6085 | 139 | 2.284306% |
| D | 6085 | 69 | 1.133936% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7411 | 6087 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7411 | 6087 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7410 | 6086 | 41 | 41 | 0.55% | 0.67% |  |
| D | 7410 | 6086 | 37 | 37 | 0.50% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 106283 | 666.66 | 786 | 771 | 158.3 |
| A | 13 | 254 | 11205 | 65.93 | 786 | 771 | 158.3 |
| A | 13 | 170 | 8984 | 51.89 | 786 | 771 | 158.3 |
| B | 3 | 209 | 18440 | 119.67 | 796 | 780 | 147.6 |
| B | 12 | 111 | 17411 | 112.7 | 796 | 780 | 147.6 |
| B | 0 | 190 | 16273 | 104.99 | 796 | 780 | 147.6 |
| C | 0 | 10 | 164714 | 933.02 | 759 | 766 | 175.7 |
| C | 14 | 238 | 121861 | 689.15 | 759 | 766 | 175.7 |
| C | 10 | 9 | 30154 | 167.25 | 759 | 766 | 175.7 |
| D | 1 | 52 | 360201 | 1933.42 | 764 | 741 | 185.9 |
| D | 13 | 153 | 64448 | 342.66 | 764 | 741 | 185.9 |
| D | 9 | 85 | 35296 | 185.86 | 764 | 741 | 185.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

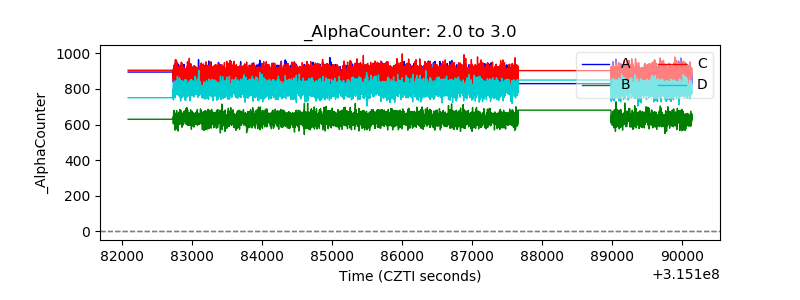

| Alpha Counter |  |

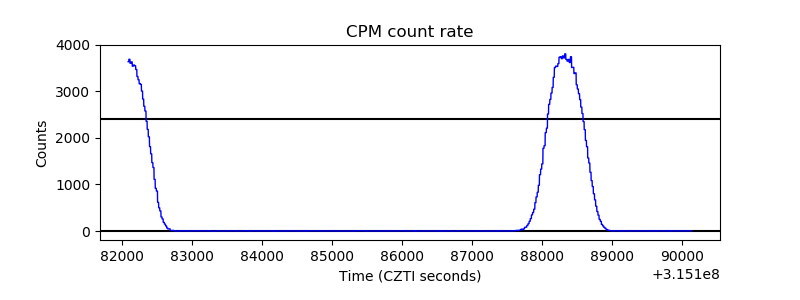

| _CPM_Rate |  |

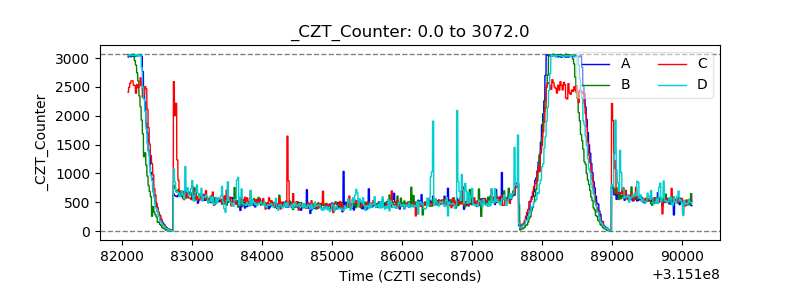

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

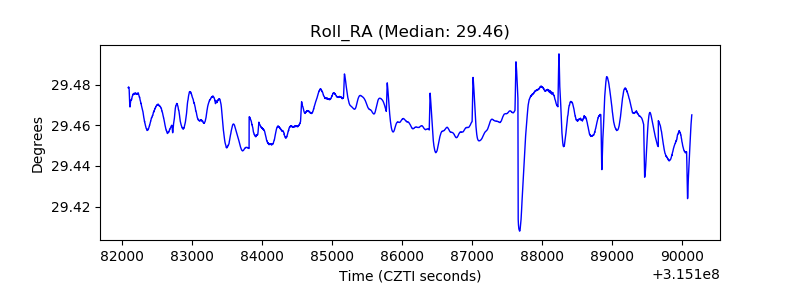

| _Roll_RA |  |
| Veto Counter |  |
