| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_047T09_9000003396_22986cztM0_level2.evt | modeM0/AS1A07_047T09_9000003396_22986cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,296,320 | 109,226,880 |
| Size | 494.3 MB | 104.2 MB |
| Events in quadrant A | 3,299,617 | 724,682 |
| Events in quadrant B | 3,479,041 | 745,762 |
| Events in quadrant C | 3,505,460 | 715,412 |
| Events in quadrant D | 4,975,272 | 672,497 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13515 | 2 |
| B | 0 | 14102 | 2 |
| C | 0 | 14073 | 2 |
| D | 0 | 18933 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6442 | 43 | 0.667495% |
| B | 6442 | 73 | 1.133188% |
| C | 6442 | 112 | 1.738590% |
| D | 6442 | 411 | 6.380006% |

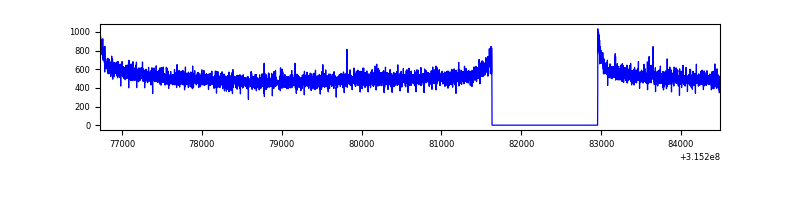

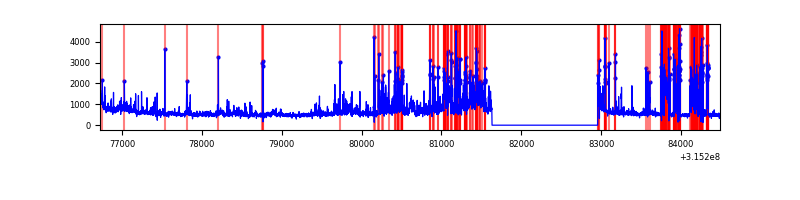

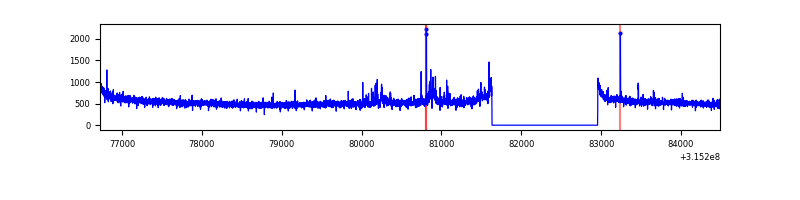

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 6443 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7767 | 6443 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7767 | 6443 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7767 | 6443 | 263 | 263 | 3.39% | 4.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10418 | 57.12 | 856 | 841 | 167.7 |
| A | 0 | 226 | 7400 | 39.12 | 856 | 841 | 167.7 |
| A | 3 | 137 | 6479 | 33.63 | 856 | 841 | 167.7 |
| B | 0 | 190 | 38252 | 236.64 | 863 | 845 | 158.1 |
| B | 0 | 189 | 24575 | 150.12 | 863 | 845 | 158.1 |
| B | 3 | 209 | 24496 | 149.62 | 863 | 845 | 158.1 |
| C | 14 | 238 | 138060 | 719.21 | 840 | 849 | 190.8 |
| C | 7 | 247 | 68471 | 354.45 | 840 | 849 | 190.8 |
| C | 0 | 10 | 23380 | 118.1 | 840 | 849 | 190.8 |
| D | 1 | 52 | 926498 | 4623.31 | 825 | 802 | 200.2 |
| D | 12 | 227 | 317246 | 1580.45 | 825 | 802 | 200.2 |
| D | 13 | 153 | 216073 | 1075.15 | 825 | 802 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

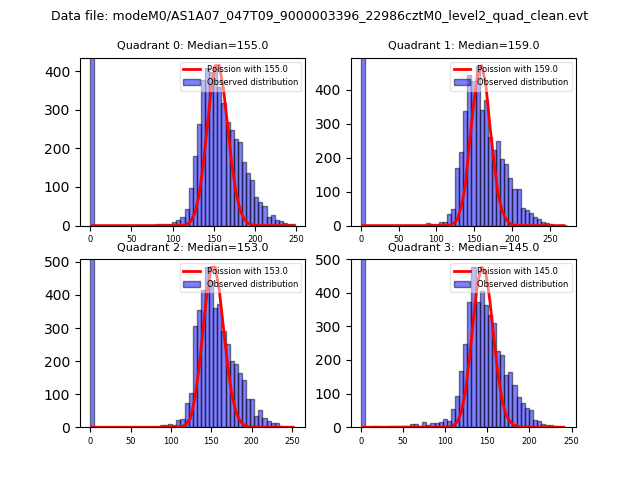

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

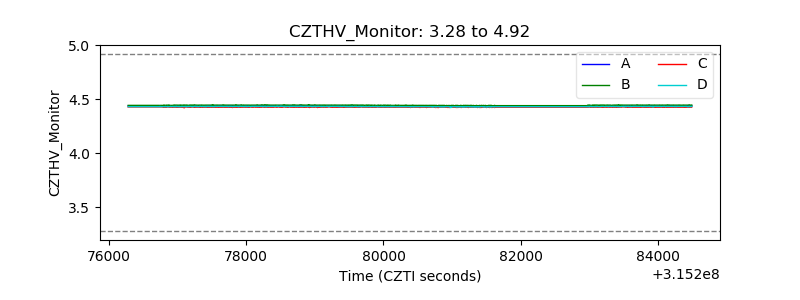

| CZT HV Monitor |  |
| D_VDD |  |

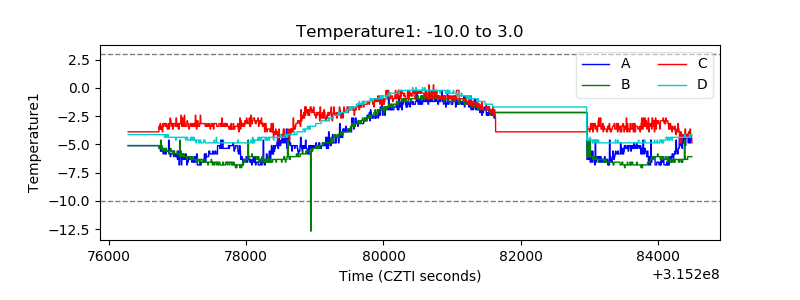

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

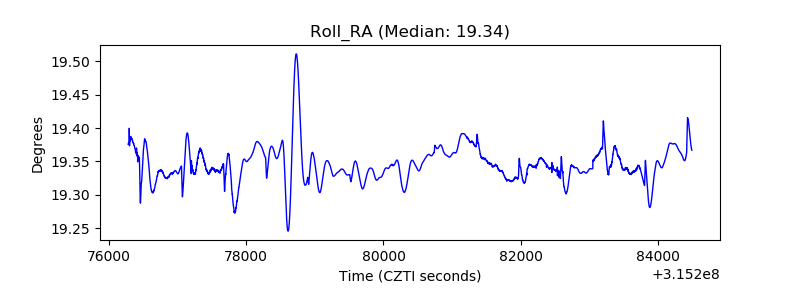

| _Roll_RA |  |

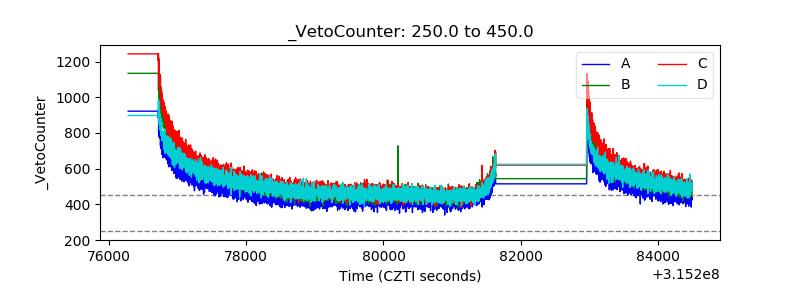

| Veto Counter |  |
