| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_091T04_9000003394_22977cztM0_level2.evt | modeM0/AS1A07_091T04_9000003394_22977cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,182,720 | 84,196,800 |
| Size | 487.5 MB | 80.3 MB |
| Events in quadrant A | 3,279,968 | 520,128 |
| Events in quadrant B | 4,608,870 | 531,766 |
| Events in quadrant C | 3,311,331 | 507,195 |
| Events in quadrant D | 3,800,889 | 498,239 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14332 | 1 |
| B | 0 | 18260 | 5 |
| C | 0 | 14448 | 1 |
| D | 0 | 16058 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7067 | 58 | 0.820716% |
| B | 7066 | 653 | 9.241438% |
| C | 7067 | 90 | 1.273525% |
| D | 7067 | 166 | 2.348946% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 7068 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7466 | 7067 | 459 | 459 | 6.15% | 6.49% |  |
| C | 7467 | 7068 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7467 | 7068 | 74 | 74 | 0.99% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 170 | 37300 | 214.22 | 840 | 820 | 170.3 |
| A | 13 | 254 | 11500 | 62.71 | 840 | 820 | 170.3 |
| A | 3 | 137 | 7543 | 39.48 | 840 | 820 | 170.3 |
| B | 5 | 31 | 1073363 | 6956.55 | 804 | 785 | 154.2 |
| B | 5 | 15 | 207314 | 1339.51 | 804 | 785 | 154.2 |
| B | 5 | 14 | 98444 | 633.4 | 804 | 785 | 154.2 |
| C | 14 | 238 | 124389 | 654.9 | 801 | 805 | 188.7 |
| C | 7 | 247 | 37642 | 195.21 | 801 | 805 | 188.7 |
| C | 0 | 239 | 16508 | 83.21 | 801 | 805 | 188.7 |
| D | 1 | 52 | 219070 | 1096.9 | 810 | 785 | 199.0 |
| D | 12 | 233 | 210920 | 1055.95 | 810 | 785 | 199.0 |
| D | 13 | 153 | 78601 | 391.03 | 810 | 785 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

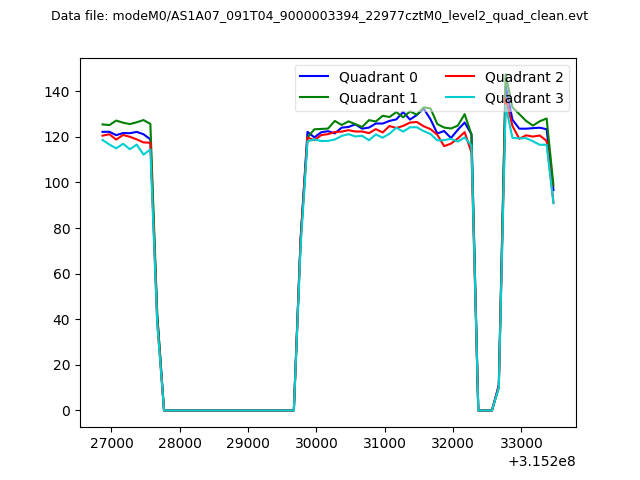

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

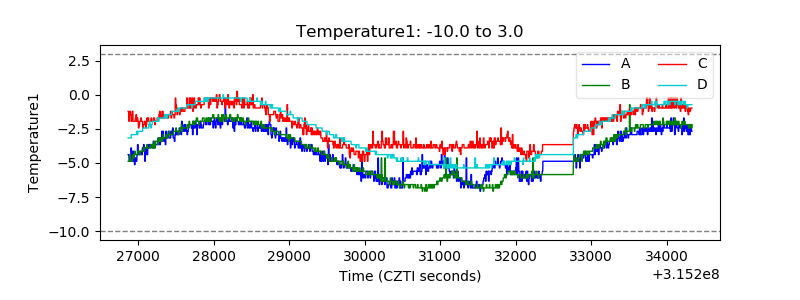

| Temperature 1 |  |

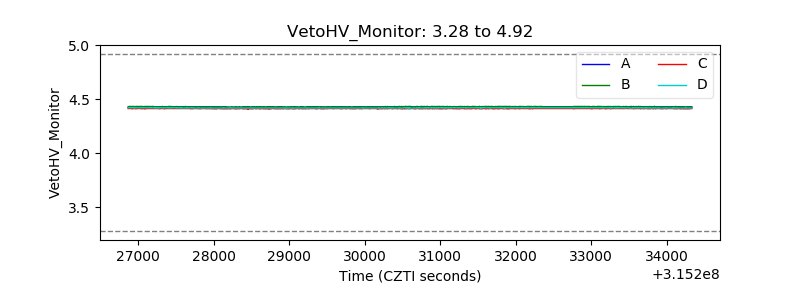

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

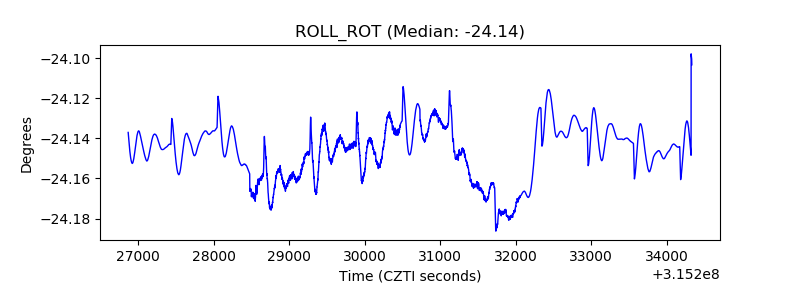

| _ROLL_ROT |  |

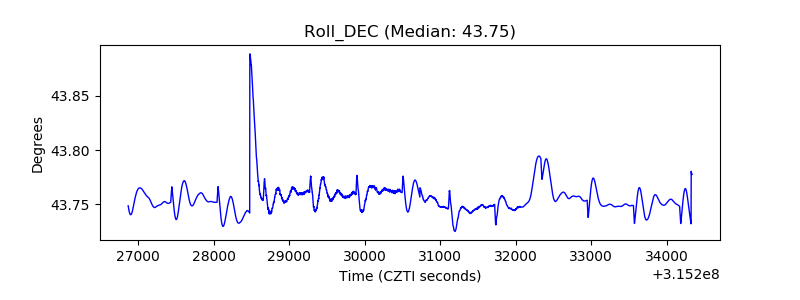

| _Roll_DEC |  |
| _Roll_RA |  |

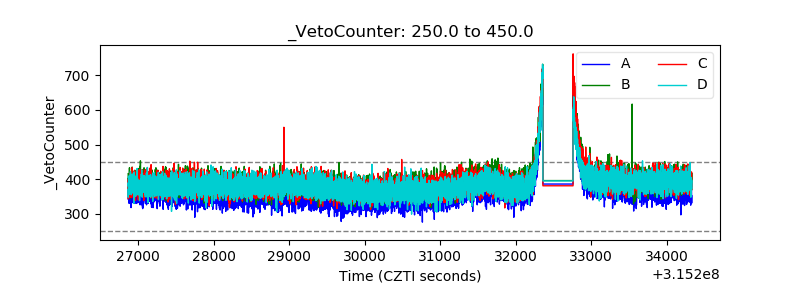

| Veto Counter |  |
