| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_091T04_9000003394_22981cztM0_level2.evt | modeM0/AS1A07_091T04_9000003394_22981cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,632,000 | 78,194,880 |
| Size | 445.0 MB | 74.6 MB |
| Events in quadrant A | 2,965,969 | 490,306 |
| Events in quadrant B | 3,077,667 | 499,887 |
| Events in quadrant C | 3,051,243 | 482,632 |
| Events in quadrant D | 4,615,883 | 462,023 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12922 | 1 |
| B | 0 | 13257 | 1 |
| C | 0 | 13156 | 1 |
| D | 0 | 18106 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6192 | 41 | 0.662145% |
| B | 6192 | 59 | 0.952842% |
| C | 6192 | 82 | 1.324289% |
| D | 6192 | 461 | 7.445090% |

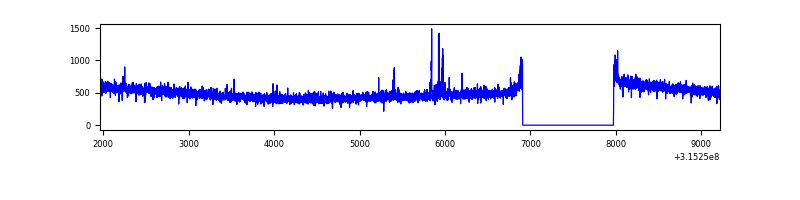

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

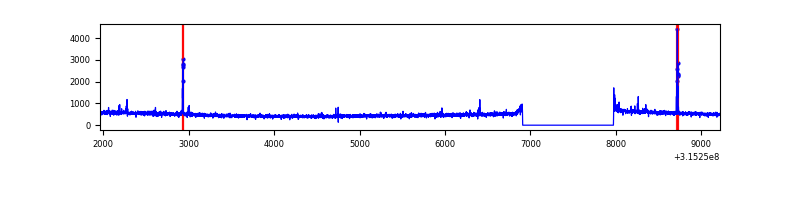

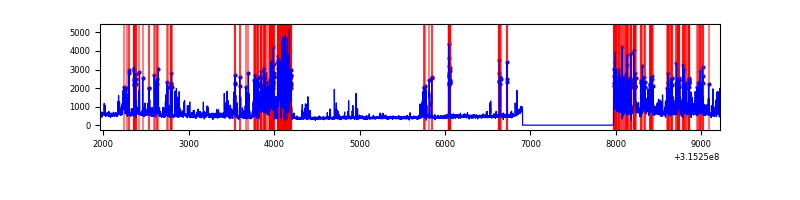

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7257 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7257 | 6193 | 12 | 12 | 0.17% | 0.19% |  |
| C | 7257 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7257 | 6193 | 339 | 339 | 4.67% | 5.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9676 | 57.61 | 767 | 752 | 154.9 |
| A | 0 | 226 | 6691 | 38.34 | 767 | 752 | 154.9 |
| A | 3 | 137 | 6634 | 37.97 | 767 | 752 | 154.9 |
| B | 4 | 216 | 45555 | 306.77 | 765 | 743 | 146.1 |
| B | 0 | 190 | 21594 | 142.74 | 765 | 743 | 146.1 |
| B | 12 | 111 | 17646 | 115.71 | 765 | 743 | 146.1 |
| C | 14 | 238 | 117817 | 667.96 | 744 | 750 | 175.3 |
| C | 7 | 247 | 27697 | 153.75 | 744 | 750 | 175.3 |
| C | 0 | 10 | 5656 | 27.99 | 744 | 750 | 175.3 |
| D | 1 | 52 | 1542404 | 8583.58 | 731 | 711 | 179.6 |
| D | 13 | 153 | 101621 | 561.83 | 731 | 711 | 179.6 |
| D | 12 | 233 | 92298 | 509.92 | 731 | 711 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

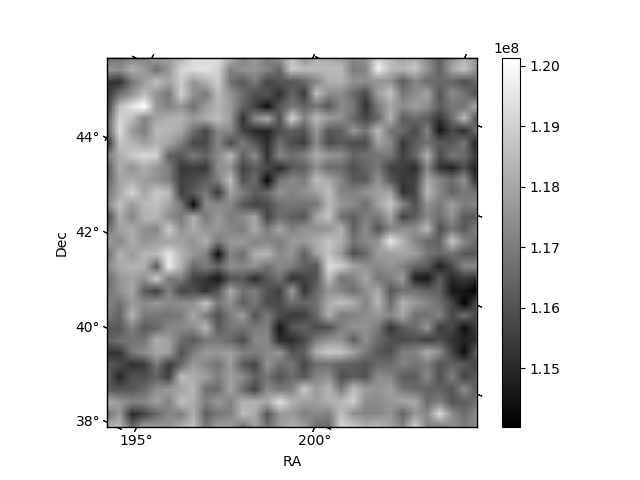

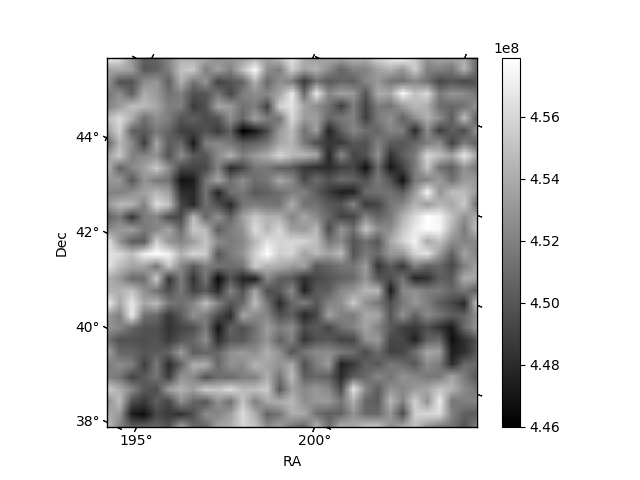

| Plot type | Count rate plots | Images |
|---|---|---|

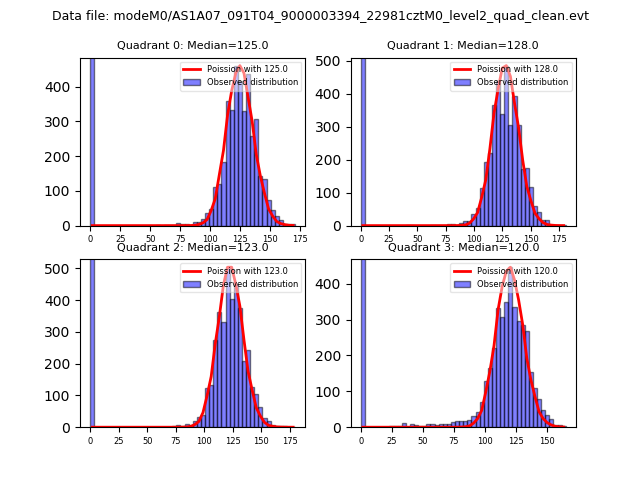

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

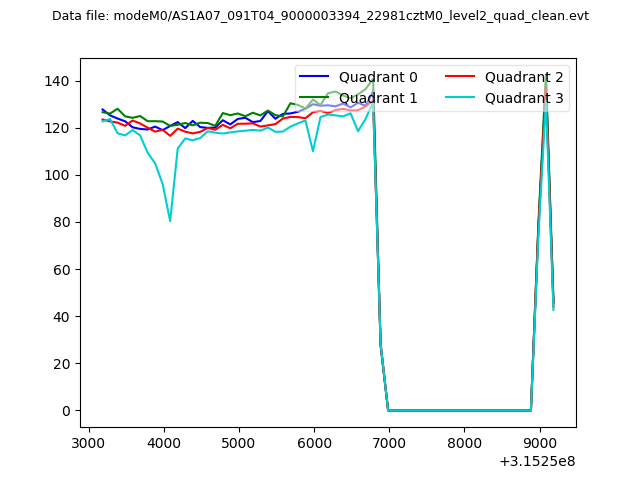

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

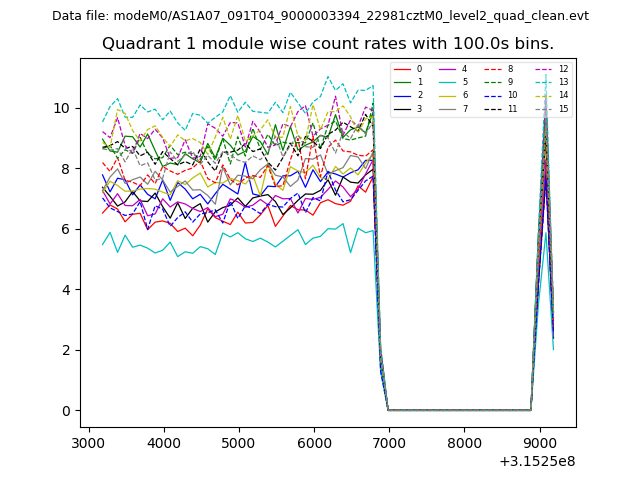

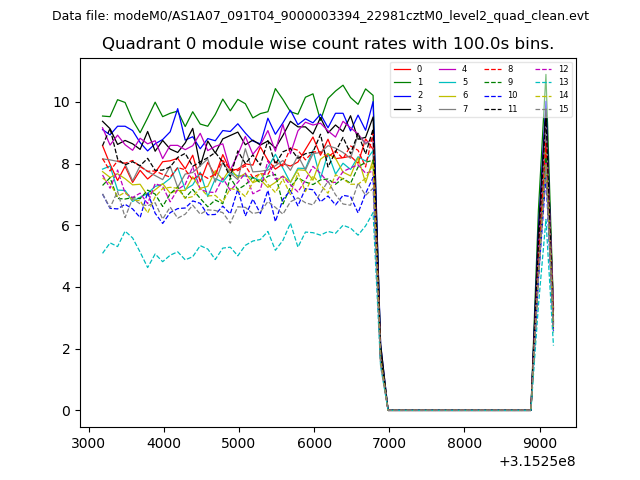

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

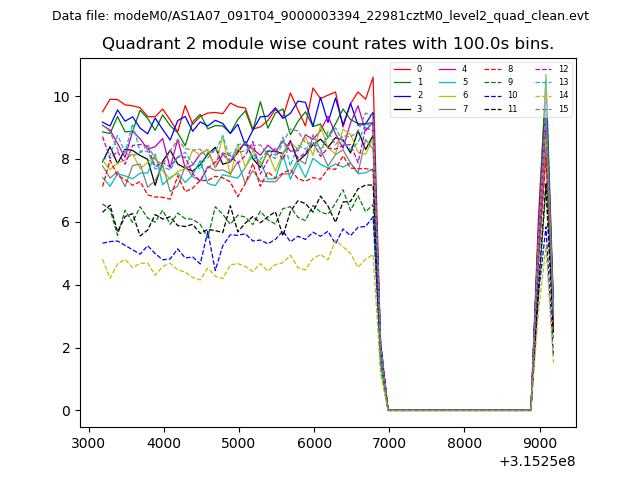

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

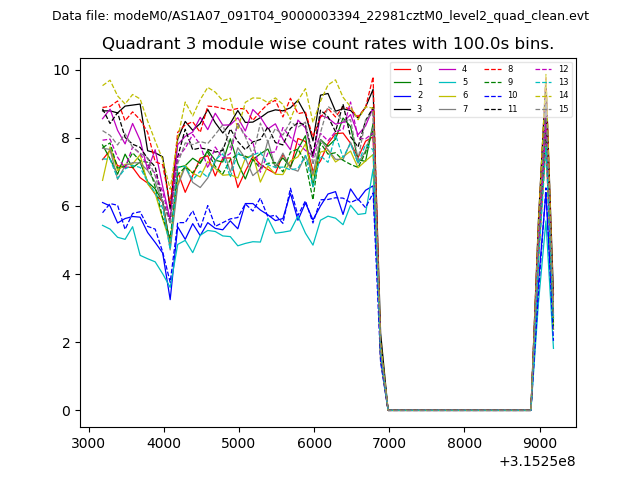

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

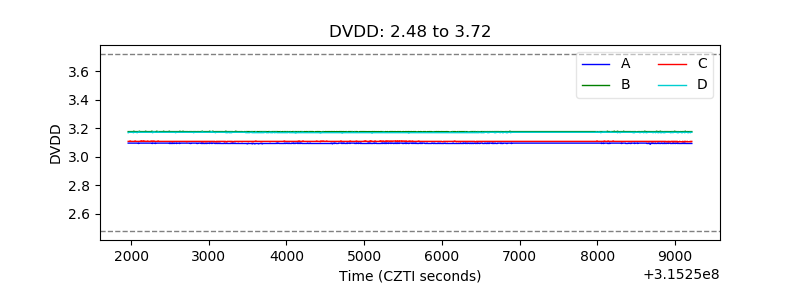

| CZT HV Monitor |  |
| D_VDD |  |

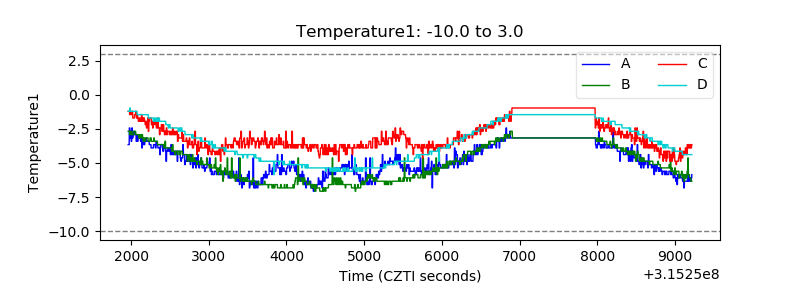

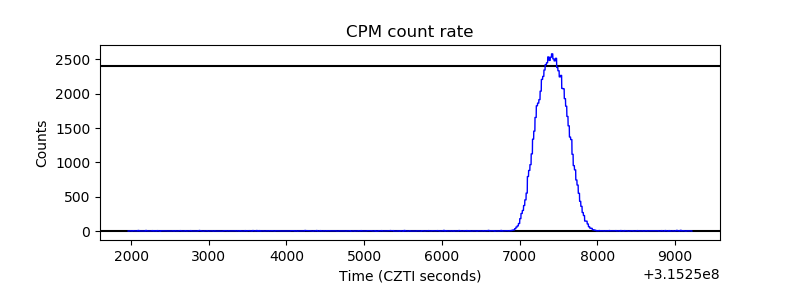

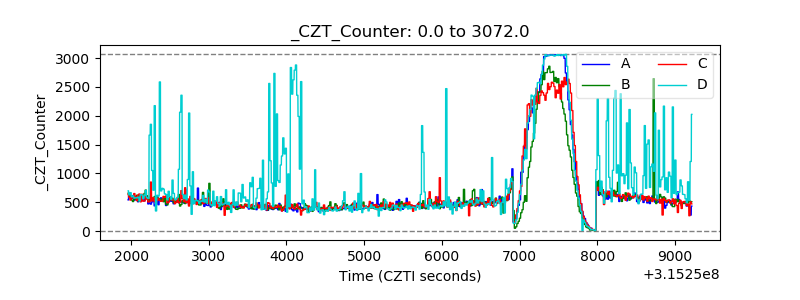

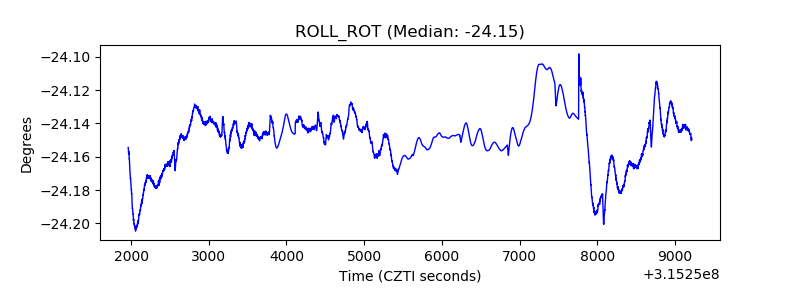

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

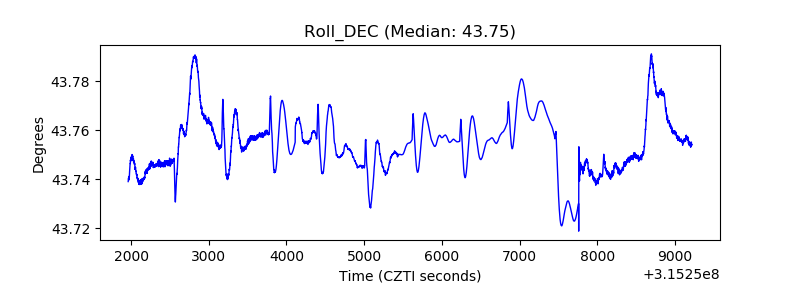

| _Roll_DEC |  |

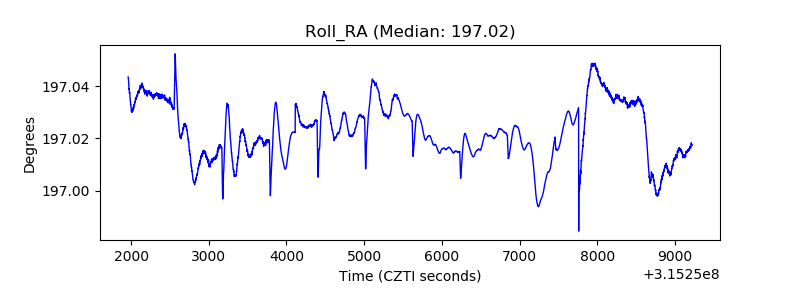

| _Roll_RA |  |

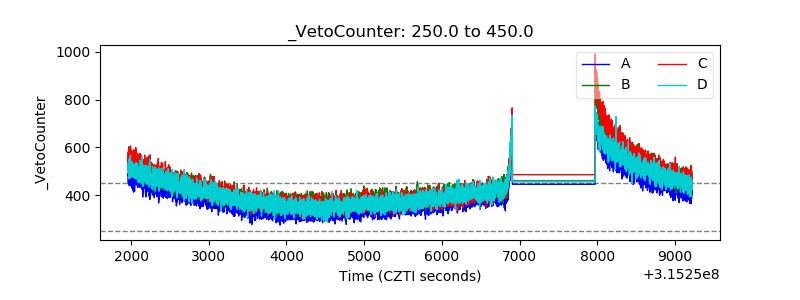

| Veto Counter |  |
