| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003400_22999cztM0_level2.evt | modeM0/AS1A08_004T03_9000003400_22999cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,486,720 | 83,586,240 |
| Size | 498.3 MB | 79.7 MB |
| Events in quadrant A | 3,221,978 | 537,367 |
| Events in quadrant B | 3,462,532 | 552,483 |
| Events in quadrant C | 3,277,125 | 520,615 |
| Events in quadrant D | 5,440,894 | 486,830 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13324 | 2 |
| B | 0 | 14048 | 2 |
| C | 0 | 13478 | 2 |
| D | 0 | 20393 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6215 | 29 | 0.466613% |
| B | 6215 | 81 | 1.303298% |
| C | 6215 | 73 | 1.174578% |
| D | 6215 | 327 | 5.261464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6216 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7545 | 6216 | 31 | 31 | 0.41% | 0.50% |  |
| C | 7545 | 6216 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7545 | 6216 | 265 | 265 | 3.51% | 4.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 24639 | 143.59 | 828 | 814 | 165.9 |
| A | 13 | 254 | 9596 | 52.93 | 828 | 814 | 165.9 |
| A | 0 | 226 | 7106 | 37.92 | 828 | 814 | 165.9 |
| B | 4 | 216 | 119712 | 768.57 | 834 | 816 | 154.7 |
| B | 0 | 189 | 82948 | 530.92 | 834 | 816 | 154.7 |
| B | 12 | 111 | 18395 | 113.64 | 834 | 816 | 154.7 |
| C | 14 | 238 | 129578 | 694.97 | 802 | 812 | 185.3 |
| C | 0 | 10 | 10848 | 54.17 | 802 | 812 | 185.3 |
| C | 7 | 247 | 8797 | 43.1 | 802 | 812 | 185.3 |
| D | 13 | 174 | 1980697 | 10314.42 | 793 | 774 | 192.0 |
| D | 1 | 52 | 334111 | 1736.52 | 793 | 774 | 192.0 |
| D | 13 | 153 | 71170 | 366.73 | 793 | 774 | 192.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

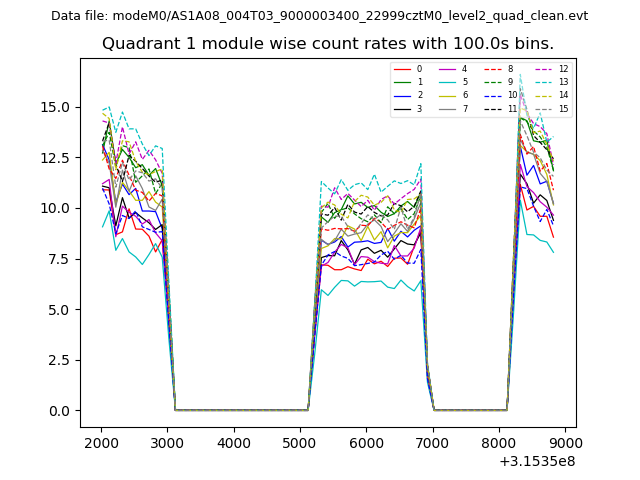

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

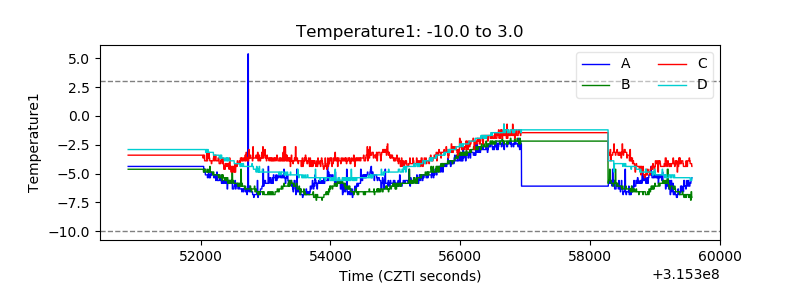

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

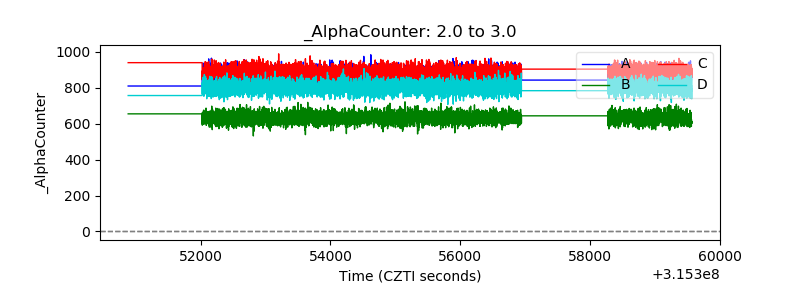

| Alpha Counter |  |

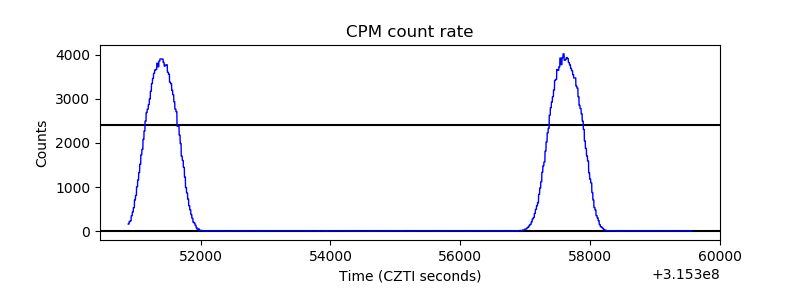

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

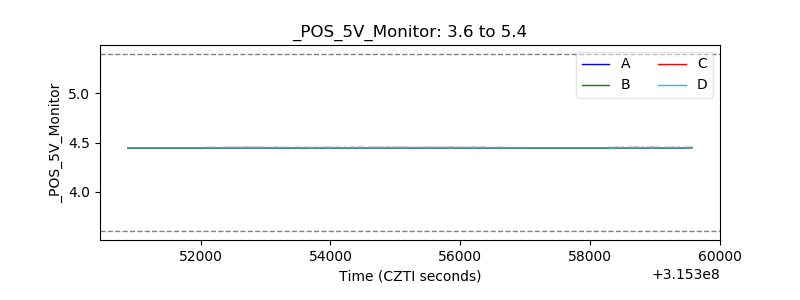

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

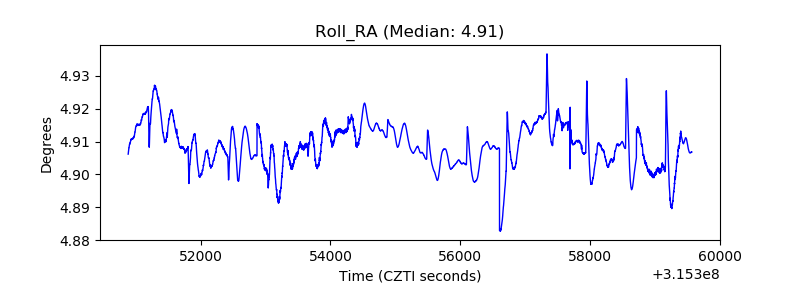

| _Roll_RA |  |
| Veto Counter |  |
