| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003400_23000cztM0_level2.evt | modeM0/AS1A08_004T03_9000003400_23000cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,830,080 | 74,384,640 |
| Size | 463.3 MB | 70.9 MB |
| Events in quadrant A | 3,368,453 | 459,407 |
| Events in quadrant B | 3,508,845 | 475,554 |
| Events in quadrant C | 3,474,319 | 441,184 |
| Events in quadrant D | 3,924,760 | 426,713 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13768 | 2 |
| B | 0 | 14220 | 2 |
| C | 0 | 14115 | 3 |
| D | 0 | 15693 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6438 | 14 | 0.217459% |
| B | 6438 | 40 | 0.621311% |
| C | 6437 | 82 | 1.273885% |
| D | 6437 | 82 | 1.273885% |

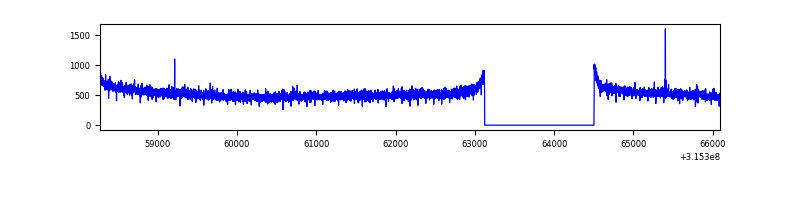

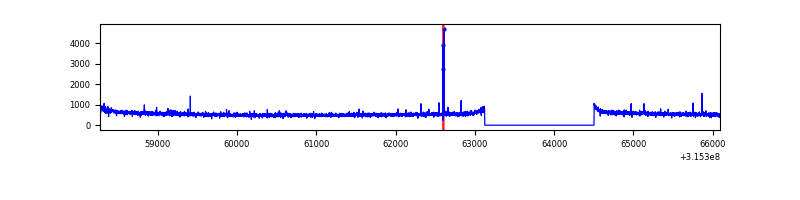

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7818 | 6439 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7818 | 6439 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7817 | 6438 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7817 | 6438 | 31 | 31 | 0.40% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 9883 | 52.16 | 871 | 857 | 173.0 |
| A | 13 | 254 | 9635 | 50.73 | 871 | 857 | 173.0 |
| A | 0 | 226 | 7383 | 37.72 | 871 | 857 | 173.0 |
| B | 0 | 189 | 46415 | 280.15 | 879 | 864 | 162.6 |
| B | 4 | 216 | 23302 | 138.0 | 879 | 864 | 162.6 |
| B | 12 | 111 | 18906 | 110.96 | 879 | 864 | 162.6 |
| C | 14 | 238 | 136431 | 699.82 | 838 | 846 | 193.7 |
| C | 7 | 247 | 38825 | 196.03 | 838 | 846 | 193.7 |
| C | 0 | 10 | 28877 | 144.68 | 838 | 846 | 193.7 |
| D | 1 | 52 | 494683 | 2436.87 | 838 | 815 | 202.7 |
| D | 13 | 153 | 120369 | 589.91 | 838 | 815 | 202.7 |
| D | 2 | 152 | 47811 | 231.89 | 838 | 815 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

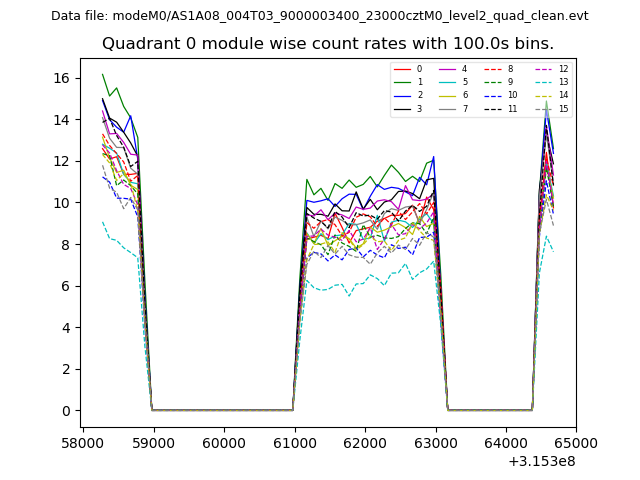

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

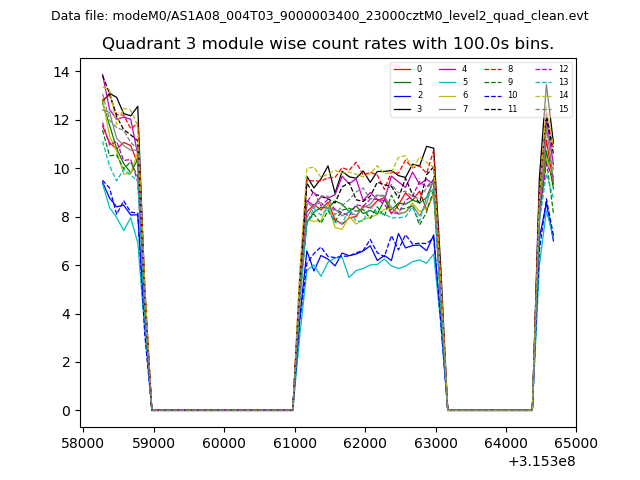

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

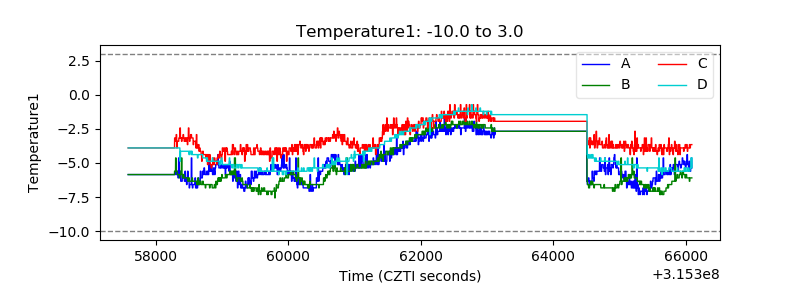

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

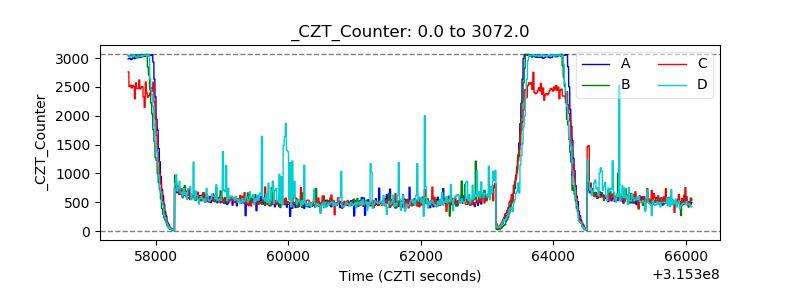

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

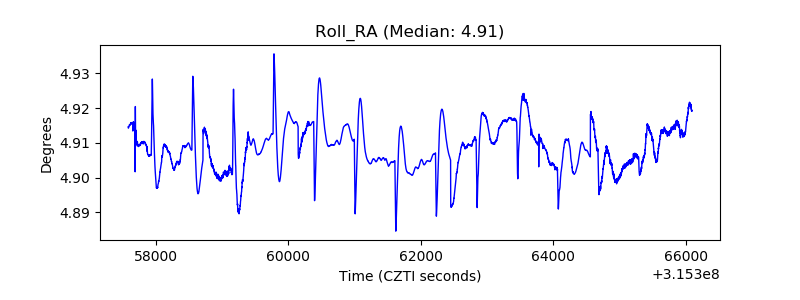

| _Roll_RA |  |

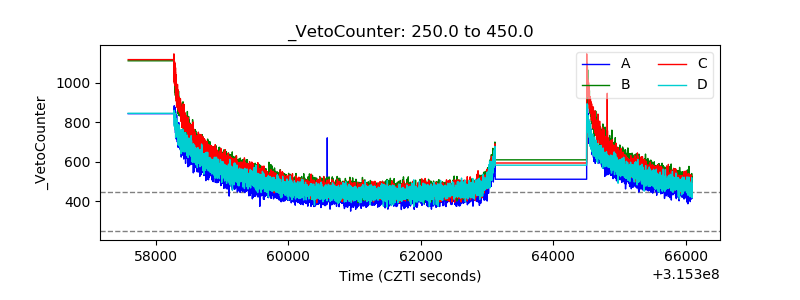

| Veto Counter |  |
