| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003400_23010cztM0_level2.evt | modeM0/AS1A08_004T03_9000003400_23010cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,676,160 | 91,272,960 |
| Size | 482.3 MB | 87.0 MB |
| Events in quadrant A | 3,080,617 | 595,137 |
| Events in quadrant B | 3,262,120 | 605,713 |
| Events in quadrant C | 3,282,102 | 571,646 |
| Events in quadrant D | 5,246,262 | 535,943 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13422 | 2 |
| B | 0 | 13857 | 2 |
| C | 0 | 13870 | 2 |
| D | 0 | 19941 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6524 | 29 | 0.444513% |
| B | 6524 | 72 | 1.103617% |
| C | 6524 | 130 | 1.992643% |
| D | 6524 | 602 | 9.227468% |

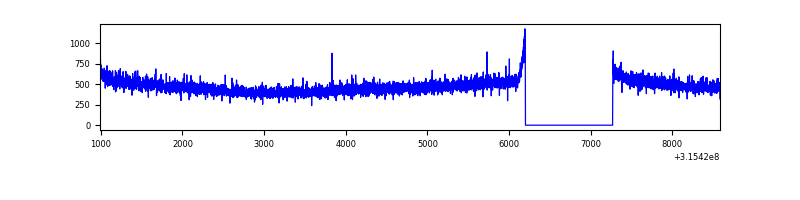

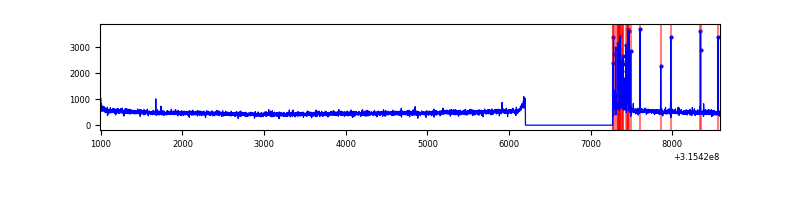

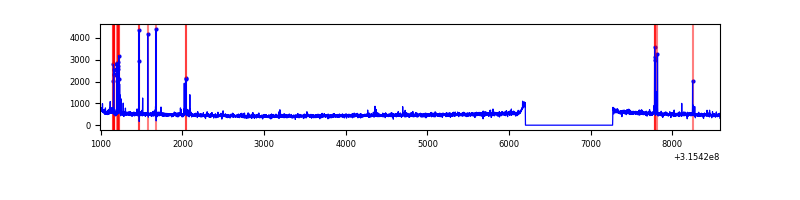

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

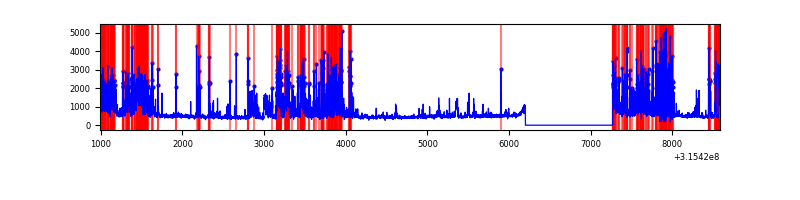

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6525 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7594 | 6525 | 24 | 24 | 0.32% | 0.37% |  |
| C | 7594 | 6525 | 37 | 37 | 0.49% | 0.57% |  |
| D | 7594 | 6525 | 443 | 443 | 5.83% | 6.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8964 | 51.0 | 797 | 780 | 160.5 |
| A | 3 | 137 | 7038 | 39.0 | 797 | 780 | 160.5 |
| A | 0 | 226 | 6920 | 38.26 | 797 | 780 | 160.5 |
| B | 4 | 216 | 105366 | 689.38 | 794 | 773 | 151.7 |
| B | 0 | 189 | 21386 | 135.86 | 794 | 773 | 151.7 |
| B | 0 | 190 | 18666 | 117.93 | 794 | 773 | 151.7 |
| C | 10 | 9 | 160939 | 892.38 | 766 | 770 | 179.5 |
| C | 14 | 238 | 121655 | 673.51 | 766 | 770 | 179.5 |
| C | 0 | 10 | 13505 | 70.95 | 766 | 770 | 179.5 |
| D | 1 | 52 | 1327220 | 7230.06 | 755 | 733 | 183.5 |
| D | 13 | 174 | 799597 | 4354.23 | 755 | 733 | 183.5 |
| D | 2 | 152 | 122181 | 661.96 | 755 | 733 | 183.5 |

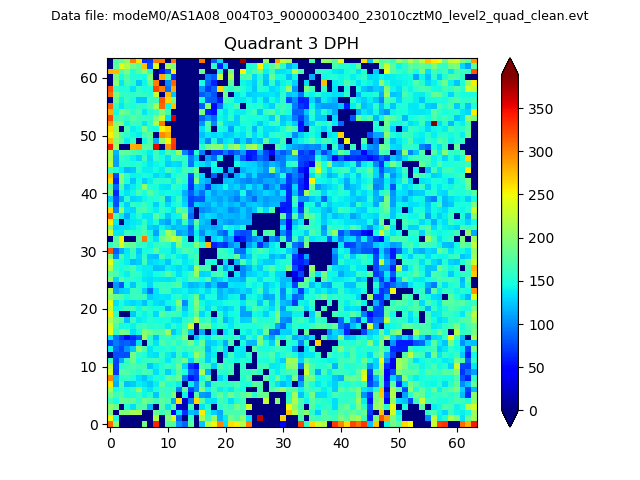

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

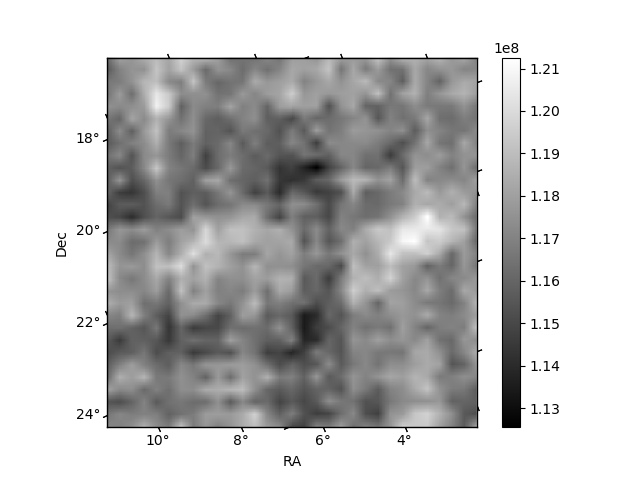

| Plot type | Count rate plots | Images |
|---|---|---|

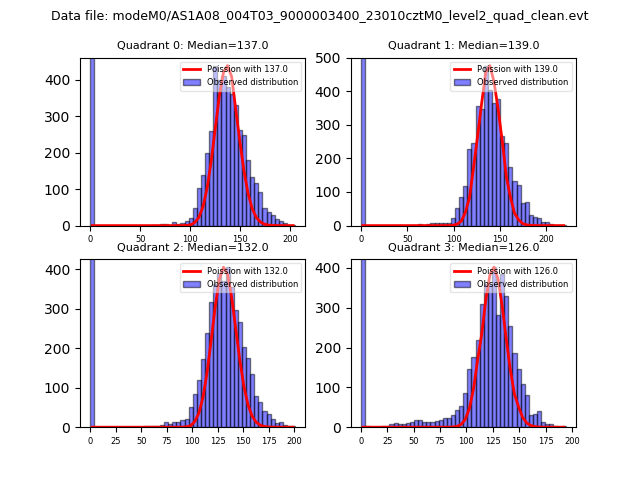

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

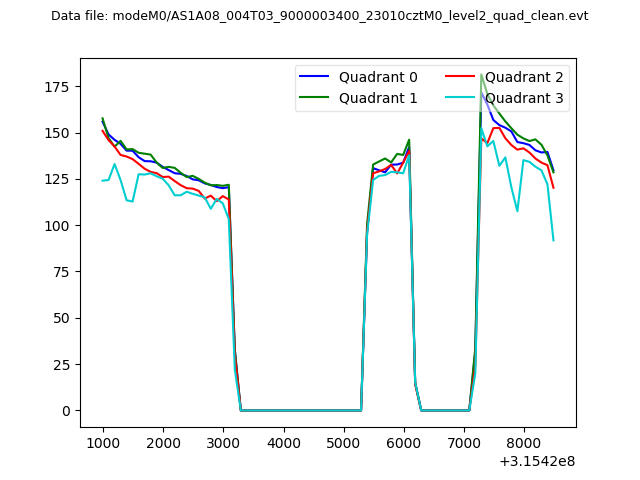

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

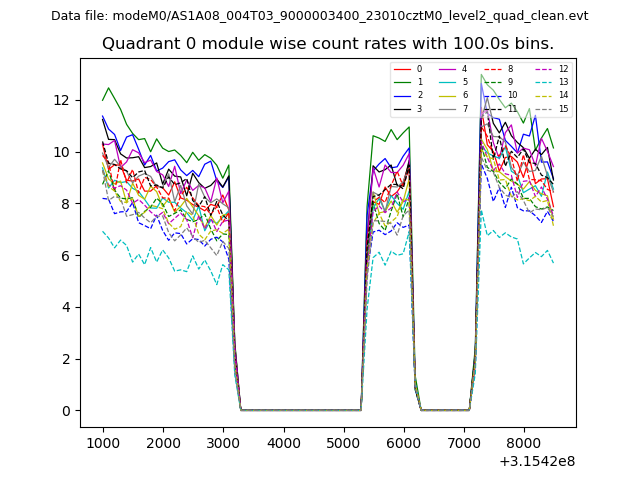

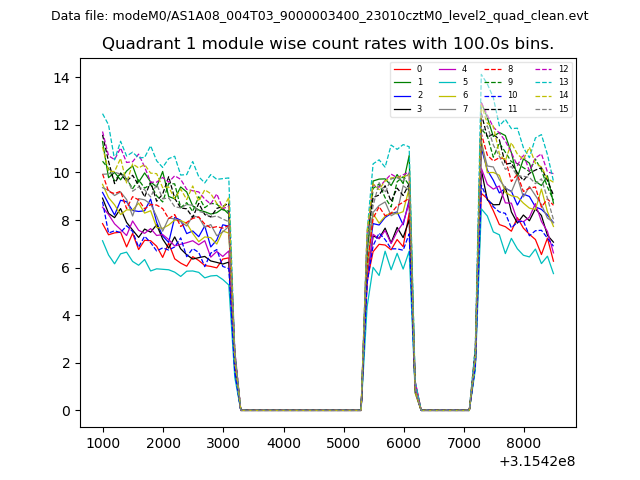

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

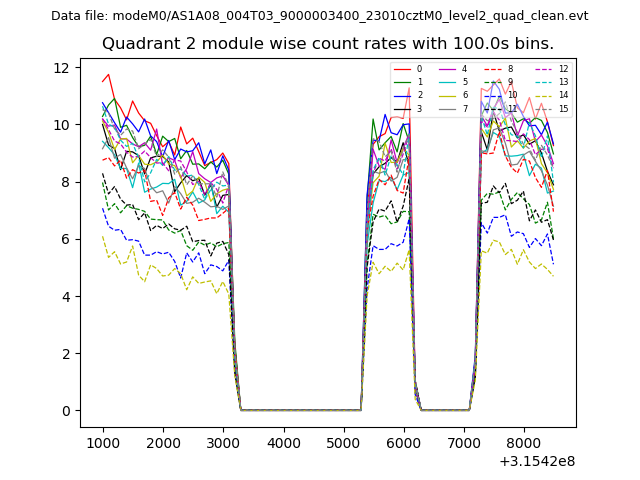

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

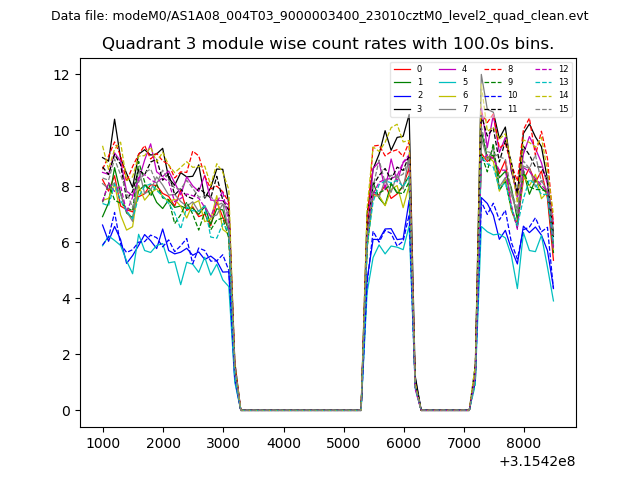

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

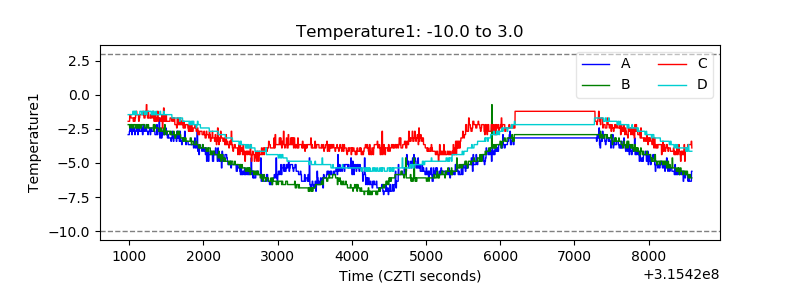

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

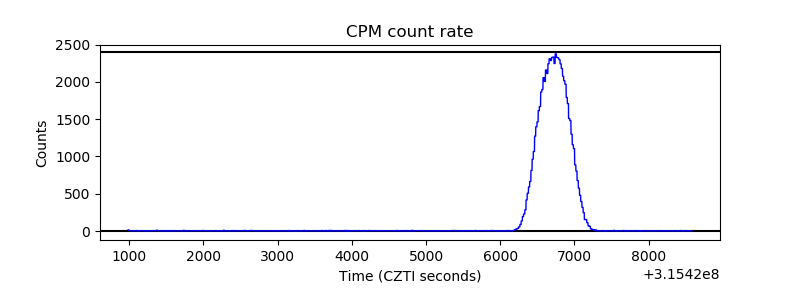

| _CPM_Rate |  |

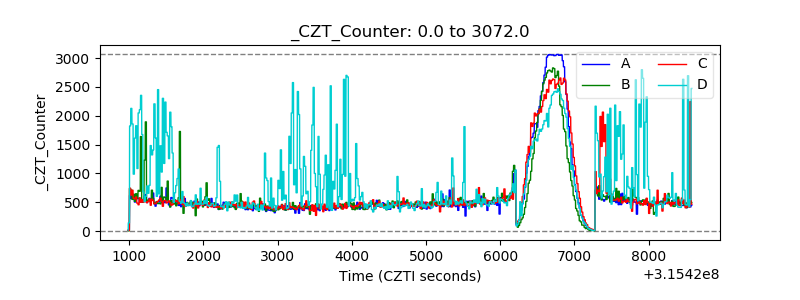

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

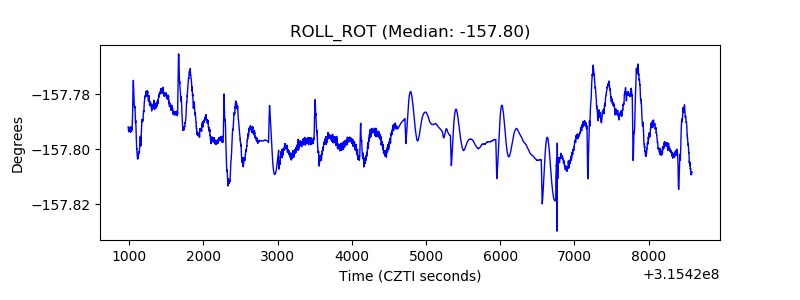

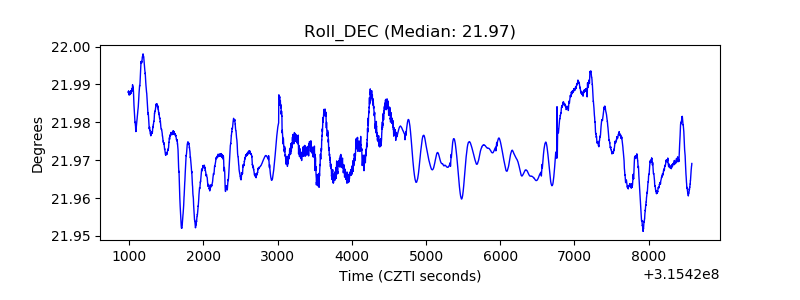

| _ROLL_ROT |  |
| _Roll_DEC |  |

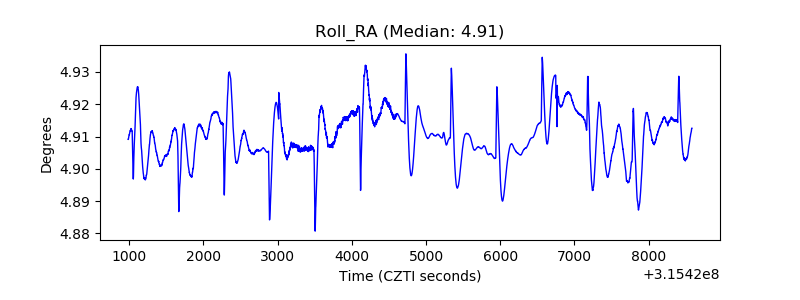

| _Roll_RA |  |

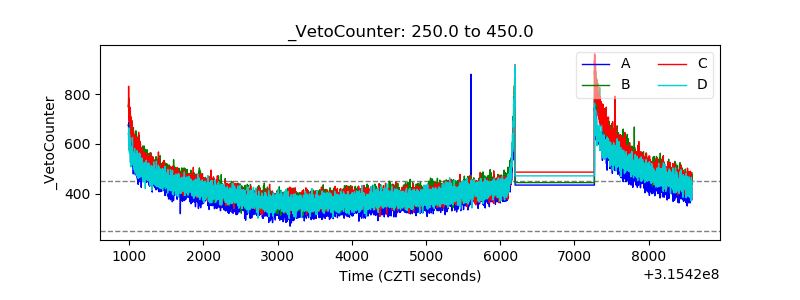

| Veto Counter |  |
