| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_013T01_9000003398_22989cztM0_level2.evt | modeM0/AS1C05_013T01_9000003398_22989cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,944,000 | 124,908,480 |
| Size | 413.8 MB | 119.1 MB |
| Events in quadrant A | 2,978,121 | 842,717 |
| Events in quadrant B | 3,104,673 | 859,431 |
| Events in quadrant C | 3,003,511 | 825,093 |
| Events in quadrant D | 3,608,314 | 797,333 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13378 | 1 |
| B | 0 | 13575 | 1 |
| C | 0 | 13358 | 1 |
| D | 0 | 15262 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 63 | 0.958321% |
| B | 6575 | 69 | 1.049430% |
| C | 6574 | 76 | 1.156069% |
| D | 6574 | 149 | 2.266504% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7074 | 6575 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7075 | 6576 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7074 | 6575 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7074 | 6575 | 84 | 84 | 1.19% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 237 | 10431 | 62.52 | 768 | 752 | 154.8 |
| A | 13 | 254 | 9532 | 56.72 | 768 | 752 | 154.8 |
| A | 0 | 226 | 6664 | 38.19 | 768 | 752 | 154.8 |
| B | 0 | 190 | 60211 | 411.37 | 767 | 748 | 144.5 |
| B | 0 | 189 | 33722 | 228.12 | 767 | 748 | 144.5 |
| B | 12 | 111 | 17091 | 113.06 | 767 | 748 | 144.5 |
| C | 14 | 238 | 119521 | 700.45 | 736 | 738 | 169.6 |
| C | 0 | 10 | 6540 | 34.21 | 736 | 738 | 169.6 |
| C | 7 | 247 | 5873 | 30.28 | 736 | 738 | 169.6 |
| D | 13 | 104 | 253163 | 1419.78 | 741 | 720 | 177.8 |
| D | 1 | 52 | 152590 | 854.14 | 741 | 720 | 177.8 |
| D | 12 | 233 | 104723 | 584.93 | 741 | 720 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

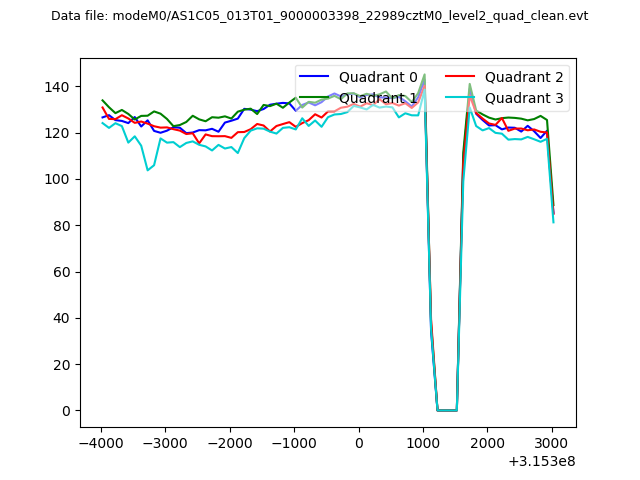

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

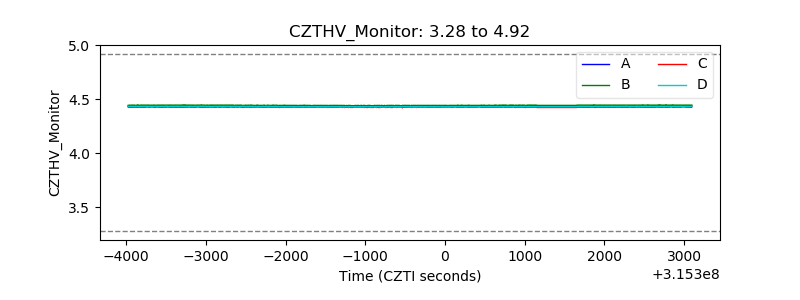

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

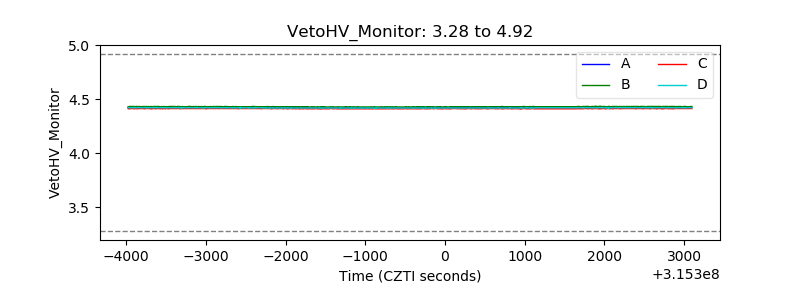

| Veto HV Monitor |  |

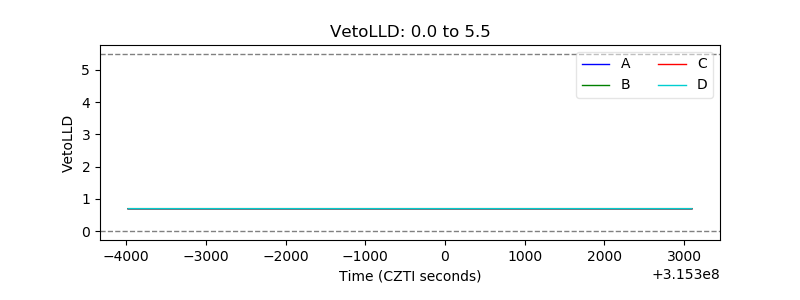

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

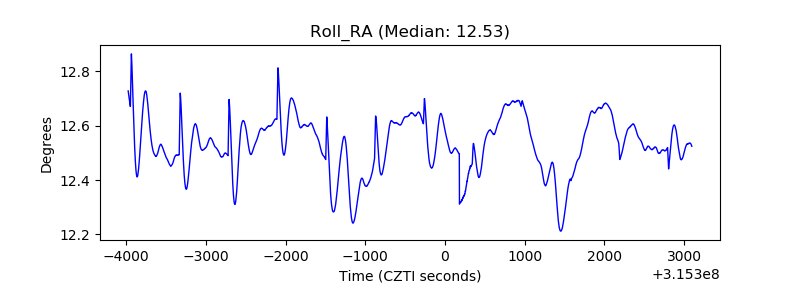

| _Roll_RA |  |
| Veto Counter |  |
