| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_004T01_9000003404_23034cztM0_level2.evt | modeM0/AS1C05_004T01_9000003404_23034cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,771,513,920 | 361,152,000 |
| Size | 1.6 GB | 344.4 MB |
| Events in quadrant A | 10,902,961 | 2,384,419 |
| Events in quadrant B | 11,830,535 | 2,417,405 |
| Events in quadrant C | 11,100,378 | 2,316,642 |
| Events in quadrant D | 18,231,062 | 2,204,556 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48277 | 4 |
| B | 0 | 50618 | 4 |
| C | 0 | 48708 | 4 |
| D | 0 | 70755 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 472 | 0 |
| B | 0 | 472 | 0 |
| C | 0 | 472 | 0 |
| D | 0 | 472 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23504 | 488 | 2.076242% |
| B | 23505 | 697 | 2.965327% |
| C | 23505 | 498 | 2.118698% |
| D | 23505 | 1280 | 5.445650% |

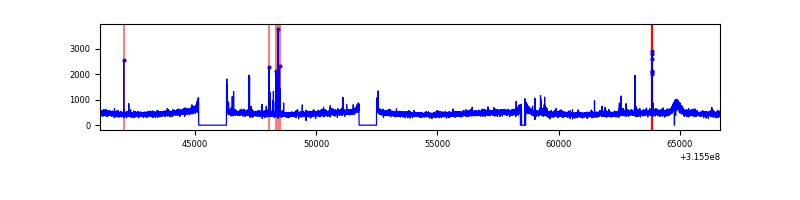

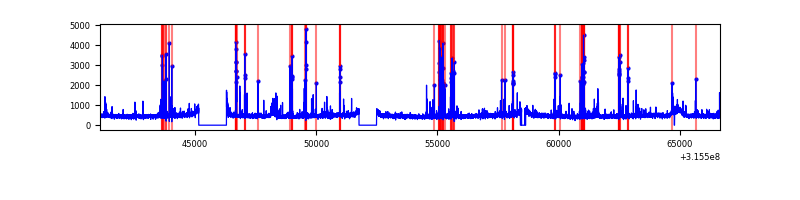

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25569 | 23510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 25570 | 23511 | 108 | 108 | 0.42% | 0.46% |  |
| C | 25570 | 23511 | 11 | 11 | 0.04% | 0.05% |  |
| D | 25570 | 23510 | 689 | 689 | 2.69% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 52181 | 87.97 | 2811 | 2744 | 562.0 |
| A | 13 | 254 | 33144 | 54.09 | 2811 | 2744 | 562.0 |
| A | 3 | 137 | 25278 | 40.1 | 2811 | 2744 | 562.0 |
| B | 3 | 64 | 329945 | 620.43 | 2787 | 2709 | 527.4 |
| B | 4 | 216 | 323815 | 608.8 | 2787 | 2709 | 527.4 |
| B | 0 | 189 | 152898 | 284.75 | 2787 | 2709 | 527.4 |
| C | 14 | 238 | 428880 | 685.0 | 2690 | 2709 | 622.1 |
| C | 0 | 207 | 62604 | 96.27 | 2690 | 2709 | 622.1 |
| C | 7 | 247 | 54631 | 83.46 | 2690 | 2709 | 622.1 |
| D | 1 | 52 | 4572936 | 7054.27 | 2688 | 2609 | 647.9 |
| D | 9 | 85 | 1297747 | 1999.04 | 2688 | 2609 | 647.9 |
| D | 5 | 222 | 991117 | 1525.76 | 2688 | 2609 | 647.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

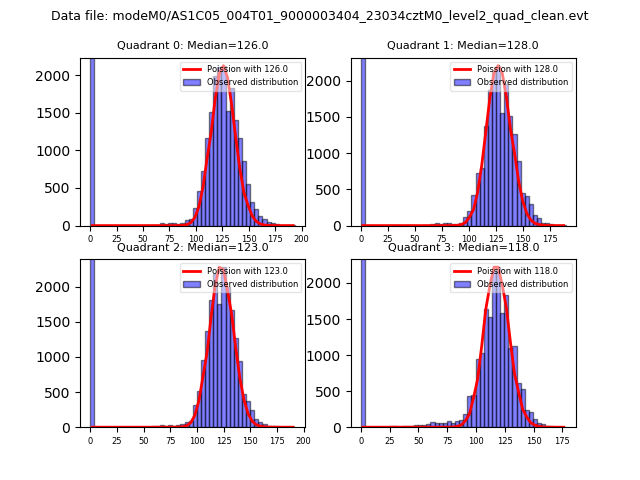

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

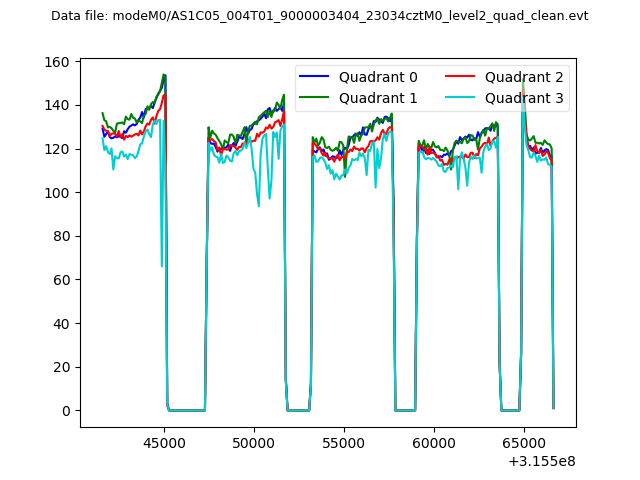

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

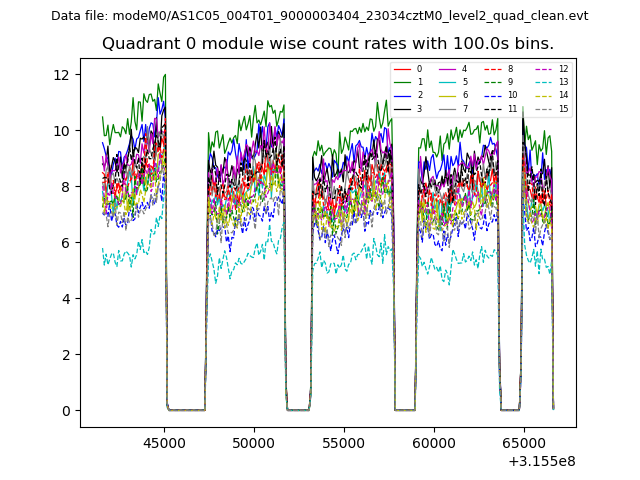

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

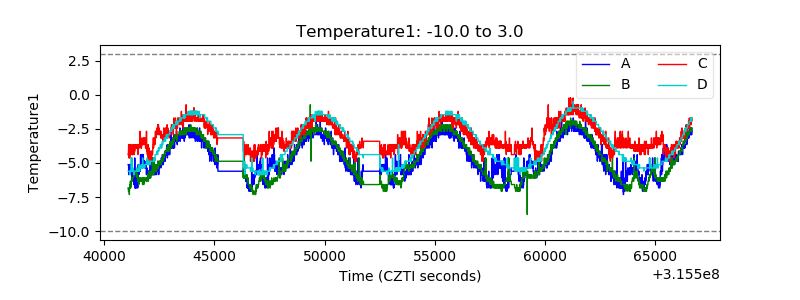

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

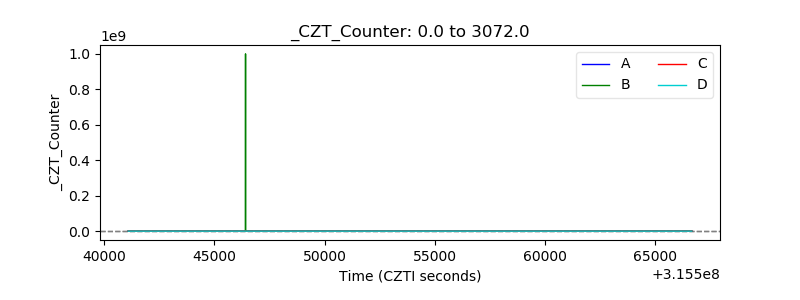

| CZT Counter |  |

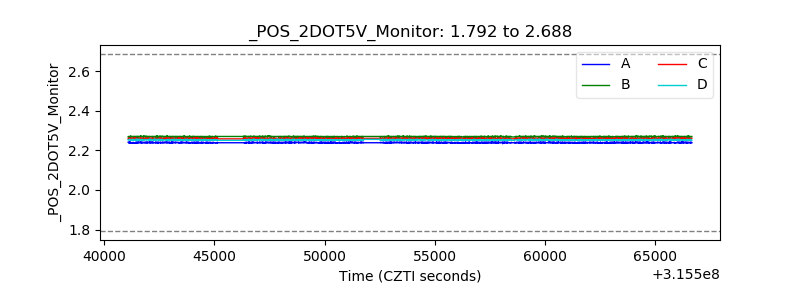

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
