| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23059cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23059cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,429,760 | 65,666,880 |
| Size | 531.6 MB | 62.6 MB |
| Events in quadrant A | 3,241,336 | 392,892 |
| Events in quadrant B | 5,691,479 | 386,604 |
| Events in quadrant C | 3,413,940 | 389,289 |
| Events in quadrant D | 4,104,119 | 375,934 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13402 | 2 |
| B | 0 | 20854 | 2 |
| C | 0 | 13940 | 2 |
| D | 0 | 16386 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6358 | 48 | 0.754954% |
| B | 6358 | 1034 | 16.262976% |
| C | 6358 | 140 | 2.201950% |
| D | 6358 | 89 | 1.399811% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7733 | 6359 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7733 | 6359 | 770 | 770 | 9.96% | 12.11% |  |
| C | 7733 | 6359 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7733 | 6359 | 38 | 38 | 0.49% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9367 | 51.13 | 840 | 826 | 167.0 |
| A | 0 | 226 | 7175 | 38.01 | 840 | 826 | 167.0 |
| A | 3 | 137 | 7028 | 37.13 | 840 | 826 | 167.0 |
| B | 3 | 64 | 2559341 | 17520.76 | 778 | 760 | 146.0 |
| B | 4 | 216 | 48366 | 326.0 | 778 | 760 | 146.0 |
| B | 12 | 111 | 17250 | 112.92 | 778 | 760 | 146.0 |
| C | 14 | 238 | 132600 | 702.52 | 816 | 824 | 187.6 |
| C | 0 | 10 | 69322 | 365.17 | 816 | 824 | 187.6 |
| C | 0 | 207 | 17517 | 88.99 | 816 | 824 | 187.6 |
| D | 1 | 52 | 789484 | 3992.51 | 820 | 798 | 197.5 |
| D | 13 | 153 | 97320 | 488.61 | 820 | 798 | 197.5 |
| D | 13 | 174 | 85964 | 431.13 | 820 | 798 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

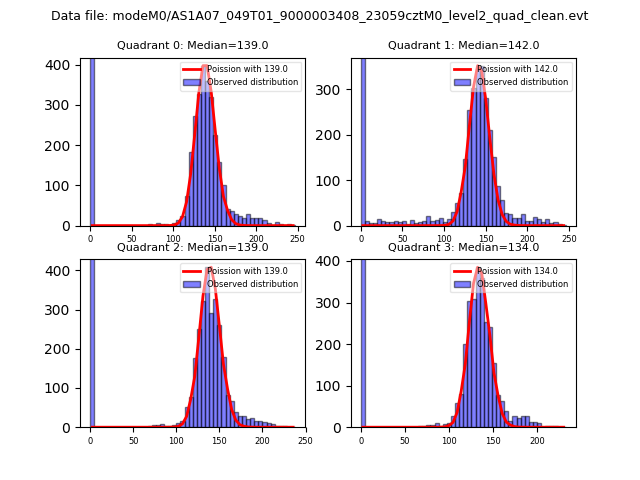

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

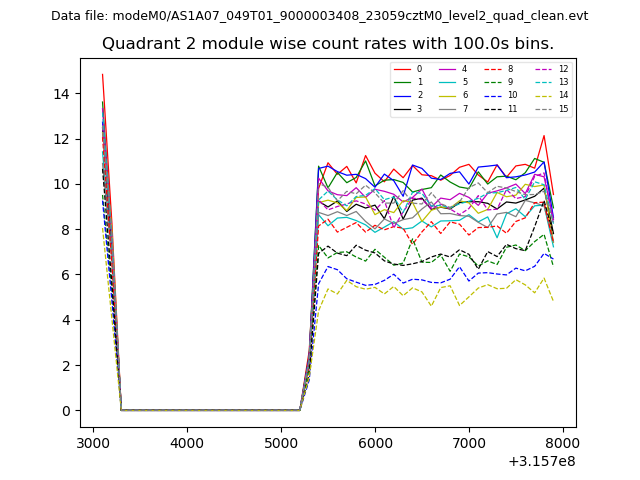

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

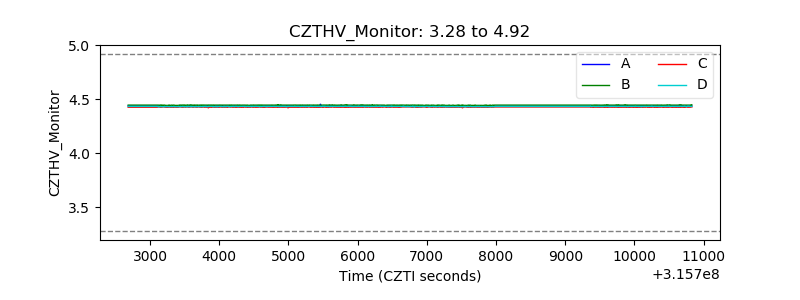

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

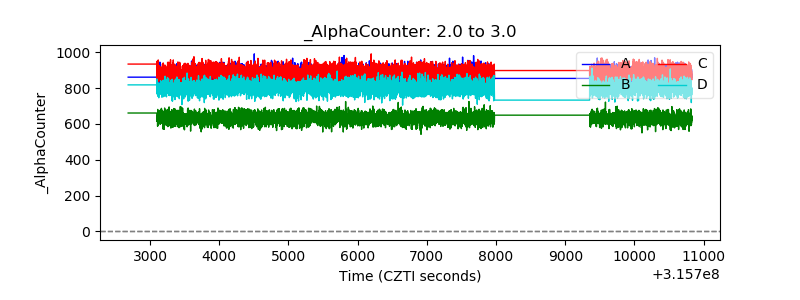

| Alpha Counter |  |
| _CPM_Rate |  |

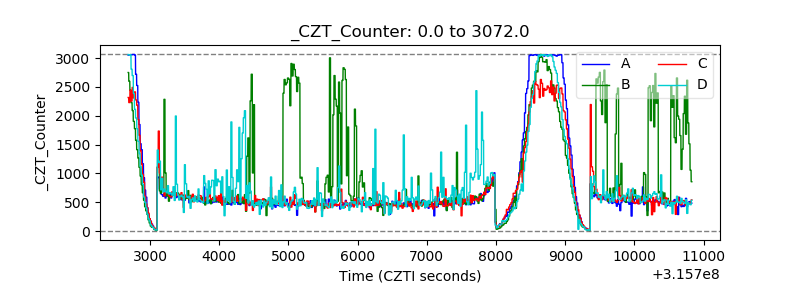

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

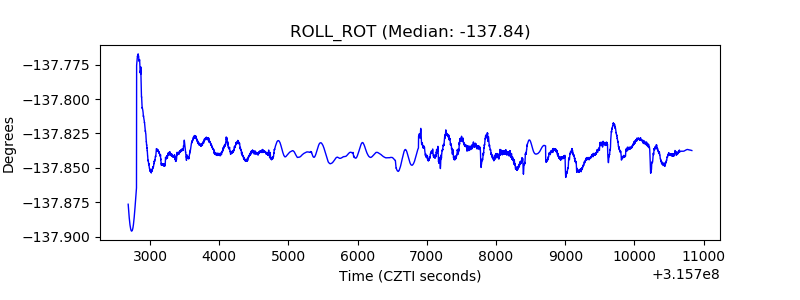

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
