| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23070cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23070cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,356,160 | 95,155,200 |
| Size | 478.1 MB | 90.7 MB |
| Events in quadrant A | 3,147,917 | 619,500 |
| Events in quadrant B | 3,302,017 | 640,494 |
| Events in quadrant C | 3,388,493 | 612,981 |
| Events in quadrant D | 4,907,046 | 558,307 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13435 | 2 |
| B | 0 | 13849 | 2 |
| C | 0 | 14056 | 2 |
| D | 0 | 18864 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 20 | 0.310029% |
| B | 6451 | 54 | 0.837080% |
| C | 6451 | 107 | 1.658658% |
| D | 6451 | 577 | 8.944350% |

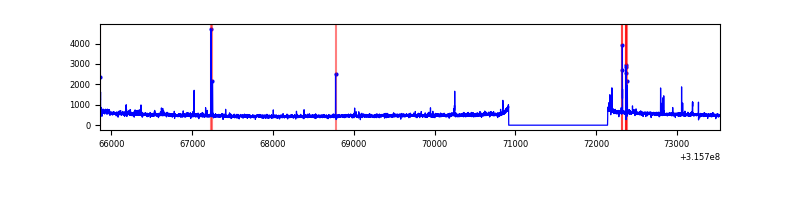

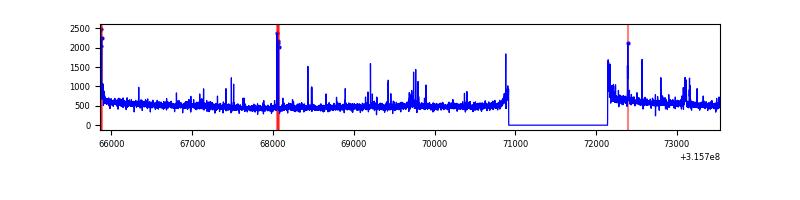

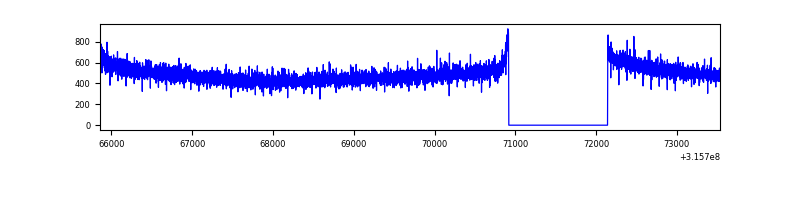

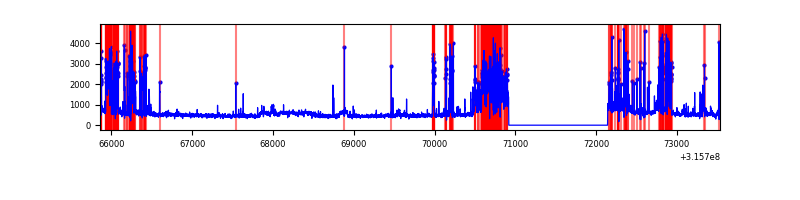

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7676 | 6452 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7676 | 6452 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7676 | 6452 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7676 | 6452 | 423 | 423 | 5.51% | 6.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11554 | 65.94 | 814 | 798 | 163.1 |
| A | 0 | 226 | 7133 | 38.84 | 814 | 798 | 163.1 |
| A | 3 | 137 | 7009 | 38.08 | 814 | 798 | 163.1 |
| B | 4 | 216 | 56955 | 367.86 | 816 | 796 | 152.7 |
| B | 12 | 111 | 18263 | 114.41 | 816 | 796 | 152.7 |
| B | 0 | 189 | 16925 | 105.65 | 816 | 796 | 152.7 |
| C | 14 | 238 | 128272 | 683.4 | 796 | 802 | 186.5 |
| C | 0 | 207 | 80981 | 429.86 | 796 | 802 | 186.5 |
| C | 0 | 10 | 66398 | 351.68 | 796 | 802 | 186.5 |
| D | 1 | 52 | 1355682 | 7181.46 | 776 | 755 | 188.7 |
| D | 1 | 239 | 352972 | 1866.84 | 776 | 755 | 188.7 |
| D | 13 | 172 | 111501 | 586.98 | 776 | 755 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

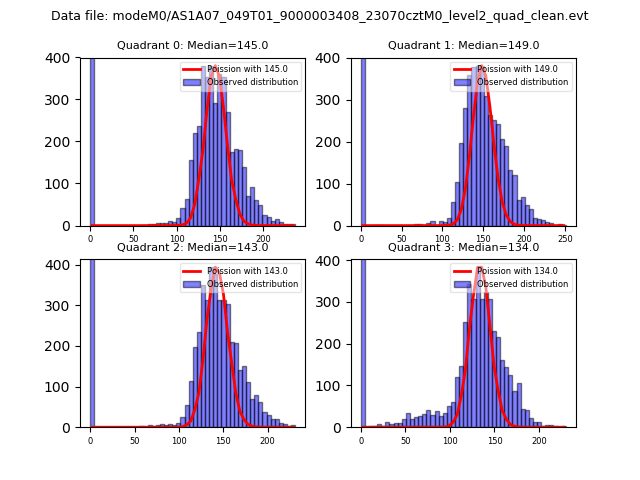

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

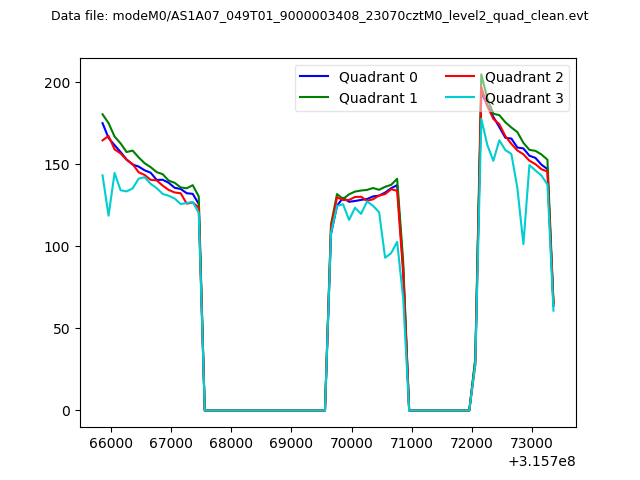

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

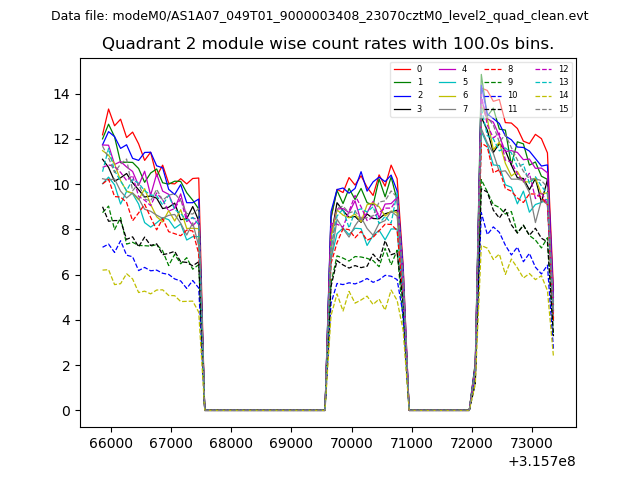

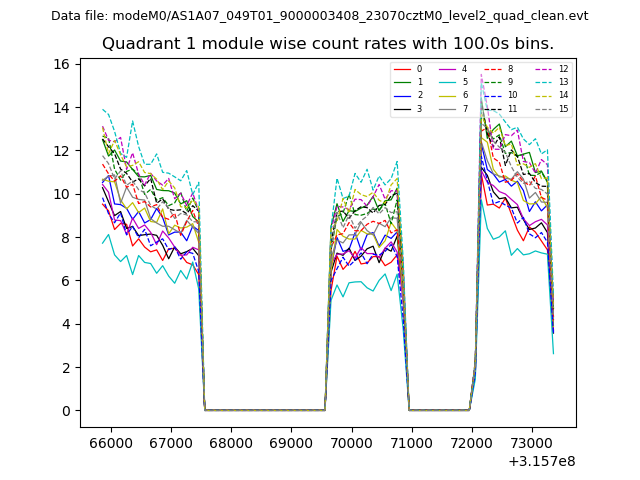

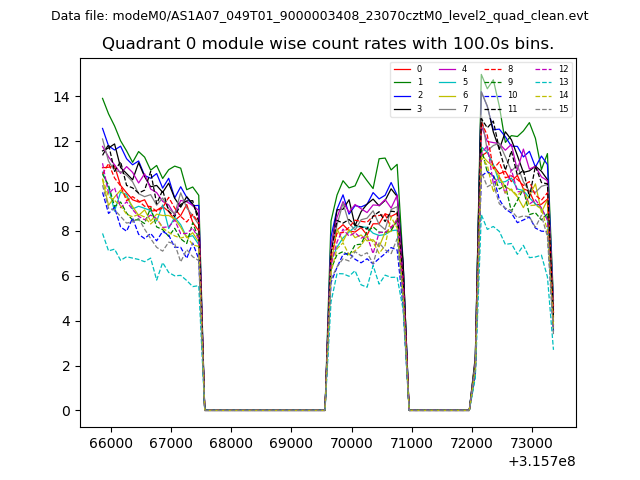

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

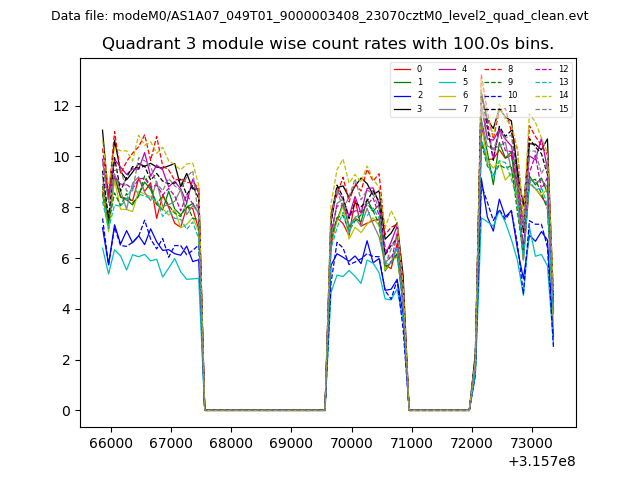

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

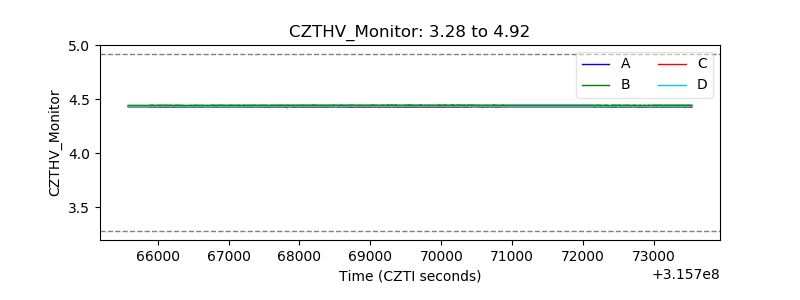

| CZT HV Monitor |  |
| D_VDD |  |

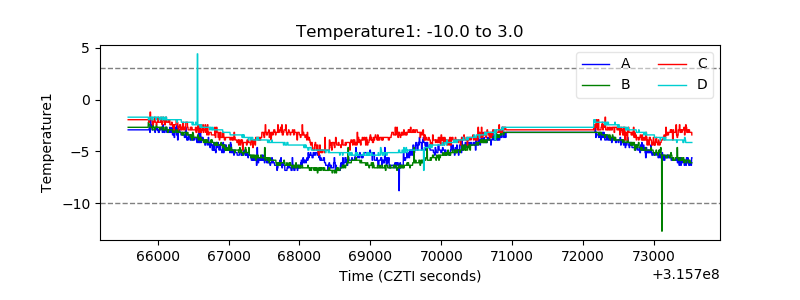

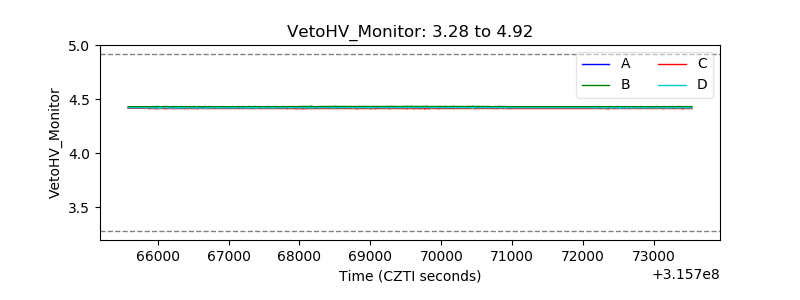

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

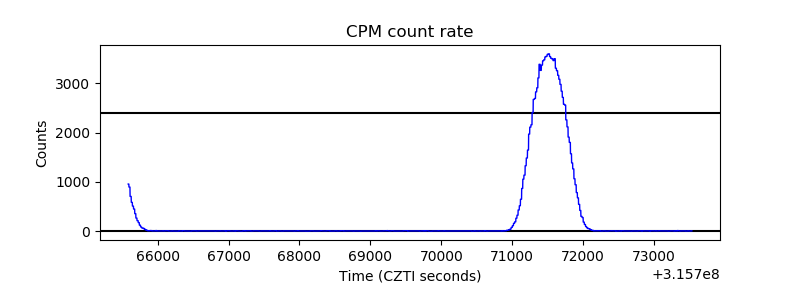

| _CPM_Rate |  |

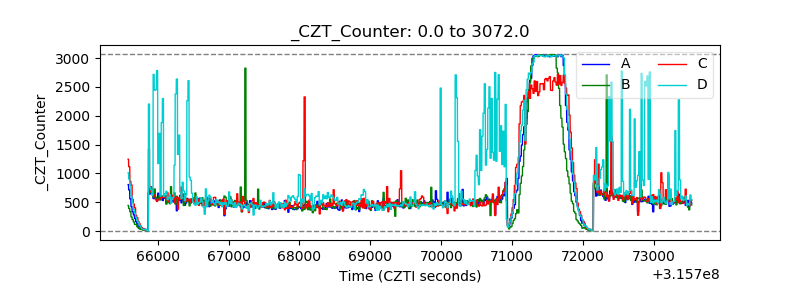

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

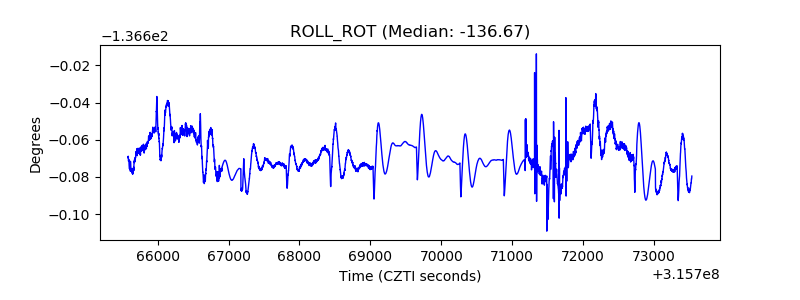

| _ROLL_ROT |  |

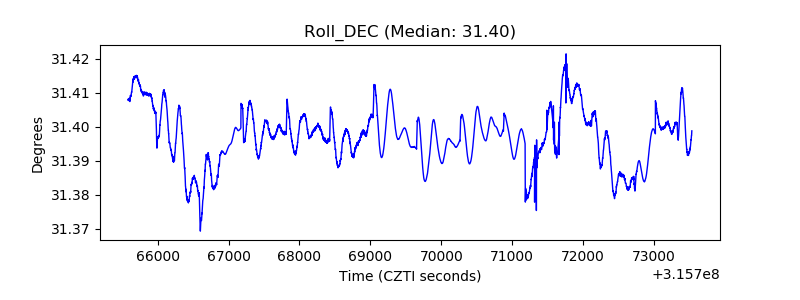

| _Roll_DEC |  |

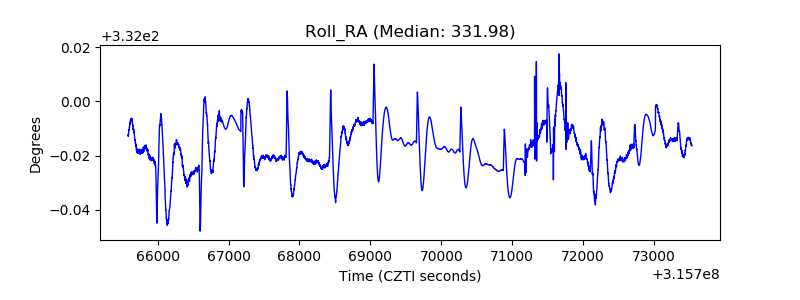

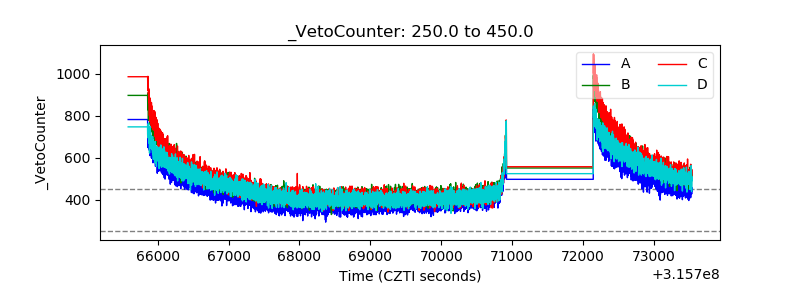

| _Roll_RA |  |
| Veto Counter |  |
