| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23075cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23075cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,639,680 | 77,673,600 |
| Size | 459.3 MB | 74.1 MB |
| Events in quadrant A | 3,514,156 | 474,907 |
| Events in quadrant B | 3,567,310 | 482,394 |
| Events in quadrant C | 3,518,088 | 466,597 |
| Events in quadrant D | 3,531,715 | 460,955 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14545 | 1 |
| B | 0 | 14621 | 1 |
| C | 0 | 14512 | 1 |
| D | 0 | 14781 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6700 | 113 | 1.686567% |
| B | 6700 | 187 | 2.791045% |
| C | 6700 | 163 | 2.432836% |
| D | 6700 | 124 | 1.850746% |

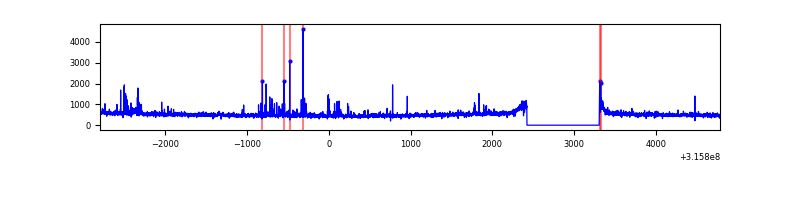

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6700 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7585 | 6700 | 53 | 53 | 0.70% | 0.79% |  |
| C | 7585 | 6701 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7585 | 6701 | 45 | 45 | 0.59% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 256598 | 1518.23 | 844 | 828 | 168.5 |
| A | 13 | 254 | 9596 | 52.05 | 844 | 828 | 168.5 |
| A | 0 | 226 | 7461 | 39.37 | 844 | 828 | 168.5 |
| B | 3 | 64 | 218463 | 1352.1 | 839 | 818 | 161.0 |
| B | 4 | 216 | 32298 | 195.57 | 839 | 818 | 161.0 |
| B | 12 | 111 | 19953 | 118.87 | 839 | 818 | 161.0 |
| C | 0 | 10 | 194220 | 1018.36 | 811 | 817 | 189.9 |
| C | 14 | 238 | 128122 | 670.32 | 811 | 817 | 189.9 |
| C | 0 | 207 | 14400 | 71.52 | 811 | 817 | 189.9 |
| D | 1 | 52 | 261158 | 1303.13 | 823 | 798 | 199.8 |
| D | 12 | 227 | 61684 | 304.74 | 823 | 798 | 199.8 |
| D | 13 | 153 | 59849 | 295.56 | 823 | 798 | 199.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

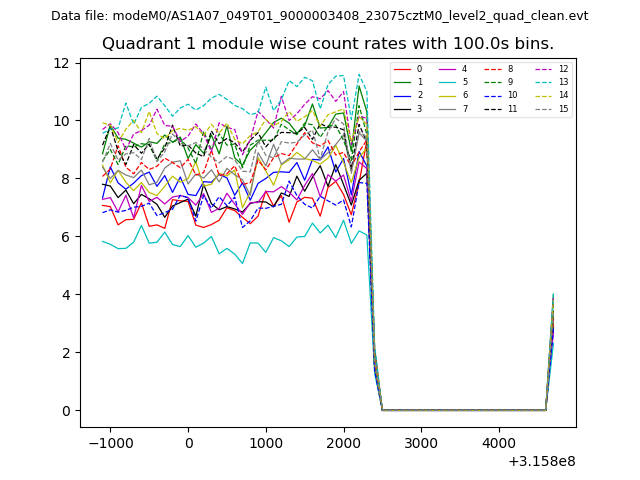

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

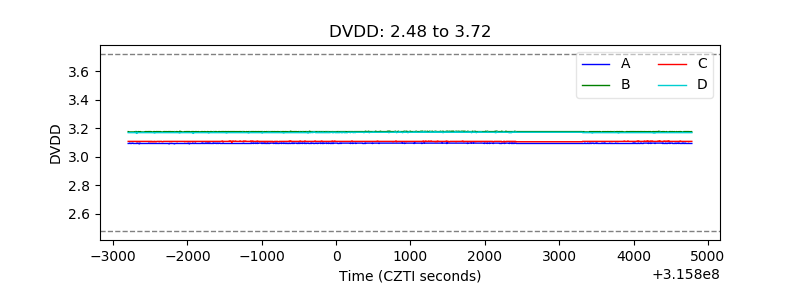

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

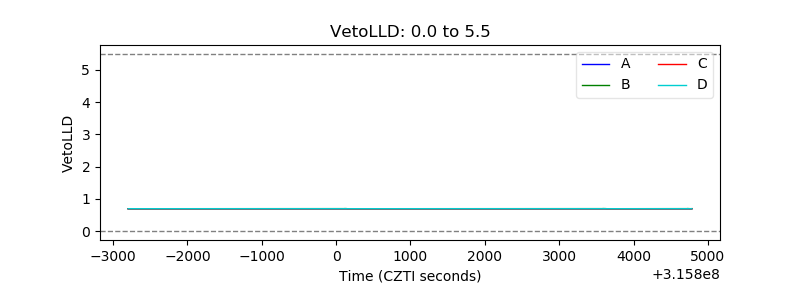

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

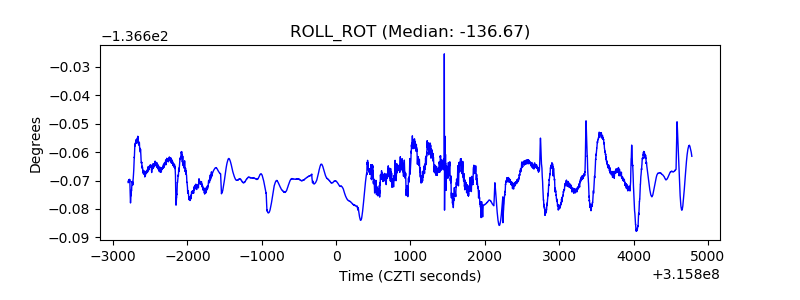

| _ROLL_ROT |  |

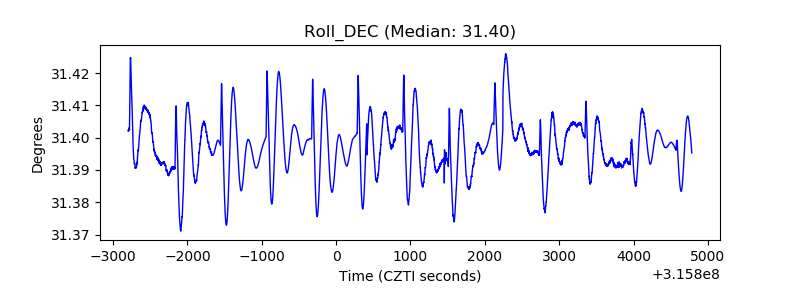

| _Roll_DEC |  |

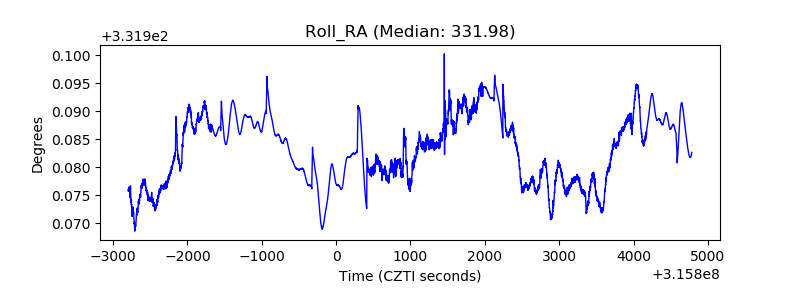

| _Roll_RA |  |

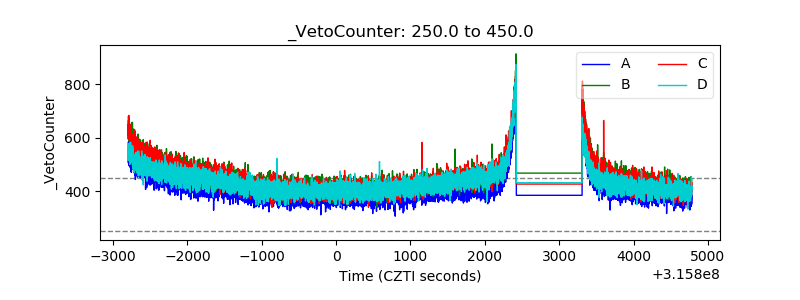

| Veto Counter |  |
