| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23076cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23076cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,665,920 | 86,365,440 |
| Size | 523.2 MB | 82.4 MB |
| Events in quadrant A | 3,887,452 | 530,776 |
| Events in quadrant B | 3,575,168 | 546,372 |
| Events in quadrant C | 3,691,926 | 525,088 |
| Events in quadrant D | 4,964,147 | 502,576 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16286 | 3 |
| B | 0 | 15263 | 3 |
| C | 0 | 15570 | 3 |
| D | 0 | 19751 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7330 | 228 | 3.110505% |
| B | 7330 | 158 | 2.155525% |
| C | 7330 | 228 | 3.110505% |
| D | 7330 | 264 | 3.601637% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

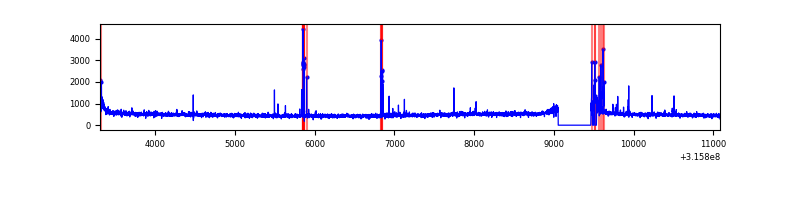

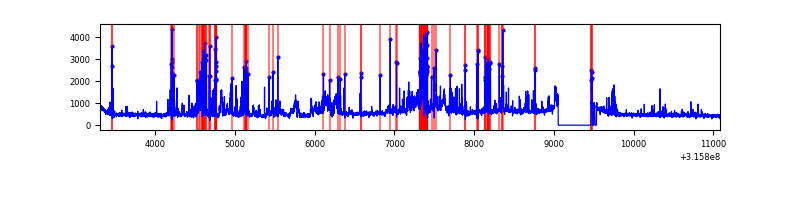

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7775 | 7333 | 85 | 85 | 1.09% | 1.16% |  |
| B | 7775 | 7333 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7775 | 7332 | 25 | 25 | 0.32% | 0.34% |  |
| D | 7775 | 7333 | 138 | 138 | 1.77% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 434126 | 2418.09 | 891 | 873 | 179.2 |
| A | 13 | 254 | 10113 | 51.57 | 891 | 873 | 179.2 |
| A | 2 | 79 | 9129 | 46.08 | 891 | 873 | 179.2 |
| B | 0 | 189 | 27541 | 155.31 | 896 | 873 | 171.7 |
| B | 12 | 111 | 21368 | 119.36 | 896 | 873 | 171.7 |
| B | 11 | 111 | 19134 | 106.35 | 896 | 873 | 171.7 |
| C | 14 | 238 | 135472 | 665.46 | 862 | 869 | 202.3 |
| C | 0 | 10 | 107785 | 528.58 | 862 | 869 | 202.3 |
| C | 0 | 207 | 79215 | 387.33 | 862 | 869 | 202.3 |
| D | 1 | 52 | 1187497 | 5609.75 | 867 | 840 | 211.5 |
| D | 12 | 227 | 210284 | 990.12 | 867 | 840 | 211.5 |
| D | 1 | 239 | 208656 | 982.42 | 867 | 840 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

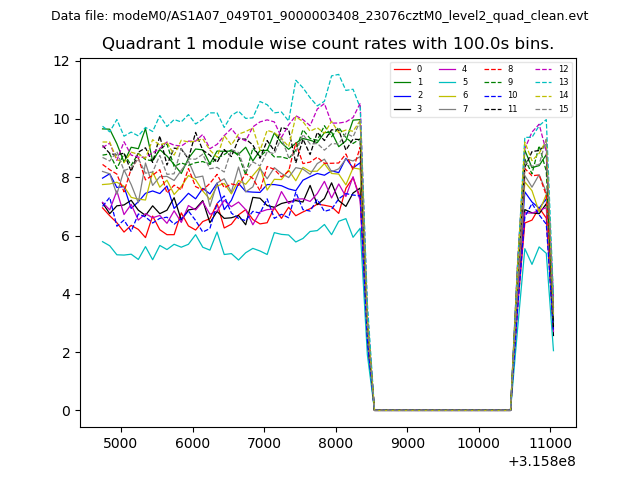

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

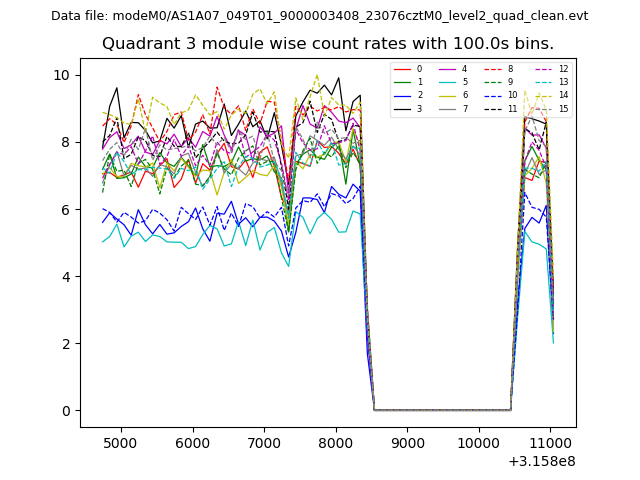

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

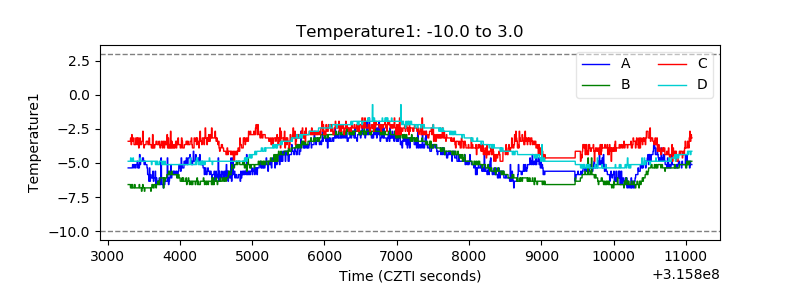

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

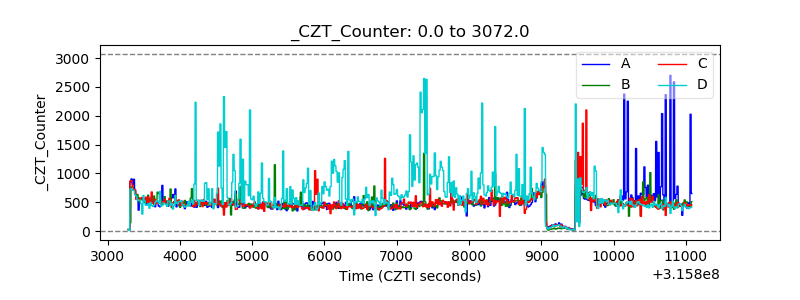

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

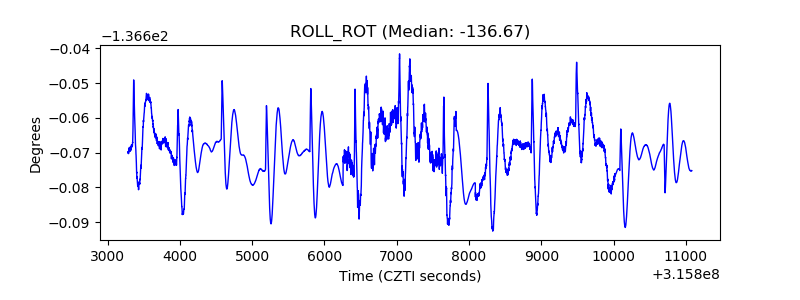

| _ROLL_ROT |  |
| _Roll_DEC |  |

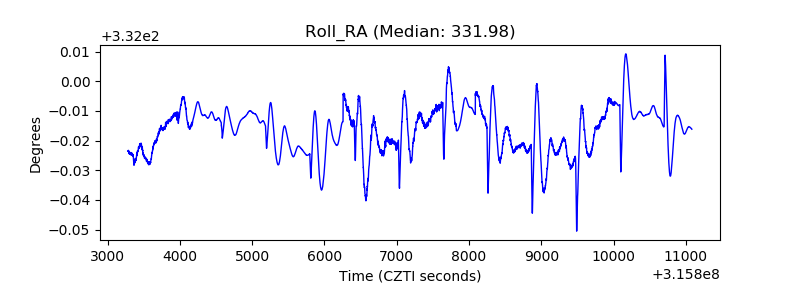

| _Roll_RA |  |
| Veto Counter |  |
