| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23080cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23080cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,375,680 | 86,650,560 |
| Size | 436.2 MB | 82.6 MB |
| Events in quadrant A | 2,990,264 | 552,281 |
| Events in quadrant B | 3,154,716 | 559,533 |
| Events in quadrant C | 3,259,652 | 536,317 |
| Events in quadrant D | 4,005,747 | 523,079 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13208 | 1 |
| B | 0 | 13585 | 1 |
| C | 0 | 13944 | 1 |
| D | 0 | 16213 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6491 | 42 | 0.647050% |
| B | 6490 | 82 | 1.263482% |
| C | 6491 | 125 | 1.925743% |
| D | 6491 | 175 | 2.696041% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

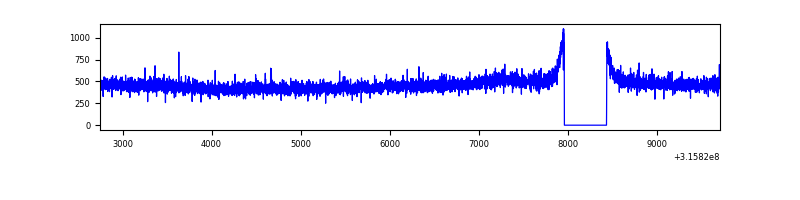

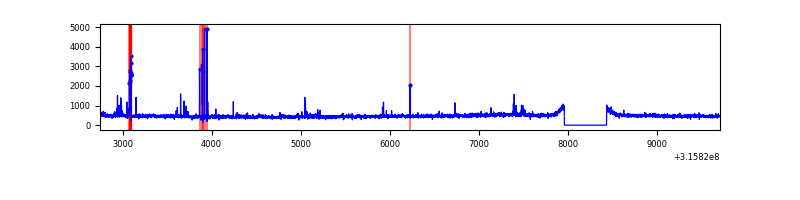

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6966 | 6492 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6965 | 6491 | 19 | 19 | 0.27% | 0.29% |  |
| C | 6966 | 6492 | 25 | 25 | 0.36% | 0.39% |  |
| D | 6966 | 6492 | 131 | 131 | 1.88% | 2.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9986 | 58.56 | 774 | 757 | 157.6 |
| A | 3 | 137 | 7081 | 40.12 | 774 | 757 | 157.6 |
| A | 0 | 226 | 6453 | 36.14 | 774 | 757 | 157.6 |
| B | 14 | 207 | 68076 | 453.87 | 766 | 744 | 148.3 |
| B | 4 | 216 | 29617 | 194.63 | 766 | 744 | 148.3 |
| B | 0 | 189 | 22907 | 149.4 | 766 | 744 | 148.3 |
| C | 0 | 10 | 203734 | 1162.91 | 737 | 740 | 174.6 |
| C | 14 | 238 | 116235 | 661.64 | 737 | 740 | 174.6 |
| C | 10 | 187 | 45836 | 258.34 | 737 | 740 | 174.6 |
| D | 1 | 52 | 662838 | 3663.64 | 742 | 720 | 180.7 |
| D | 1 | 239 | 352398 | 1945.91 | 742 | 720 | 180.7 |
| D | 7 | 238 | 138042 | 759.83 | 742 | 720 | 180.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

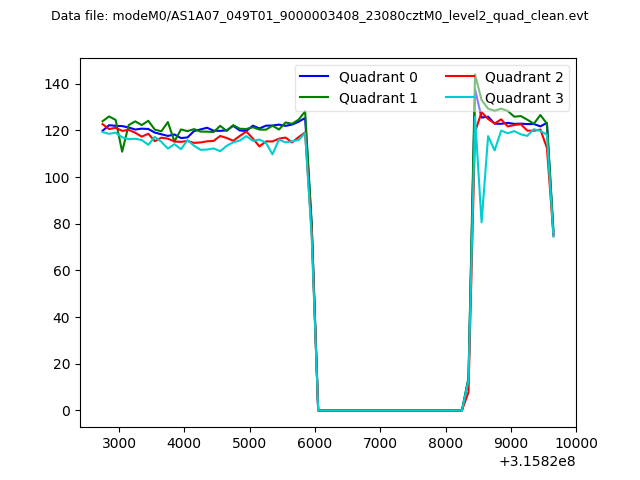

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

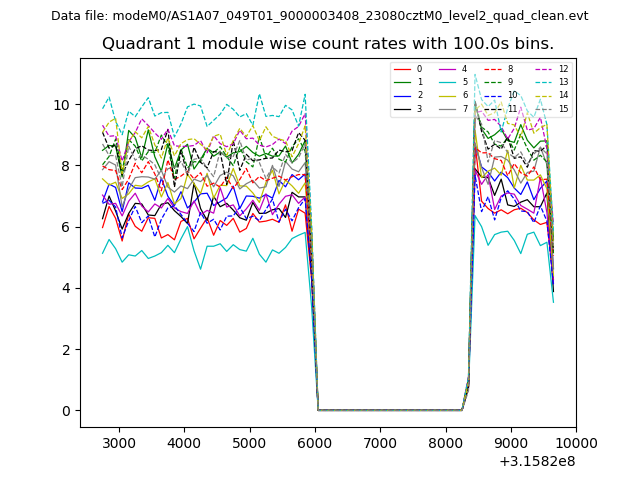

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

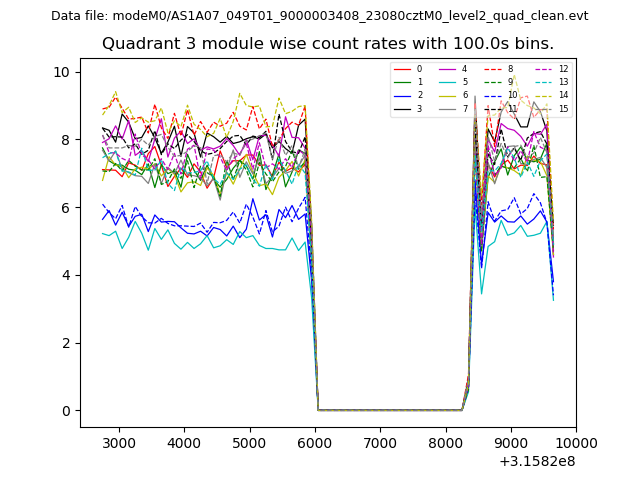

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

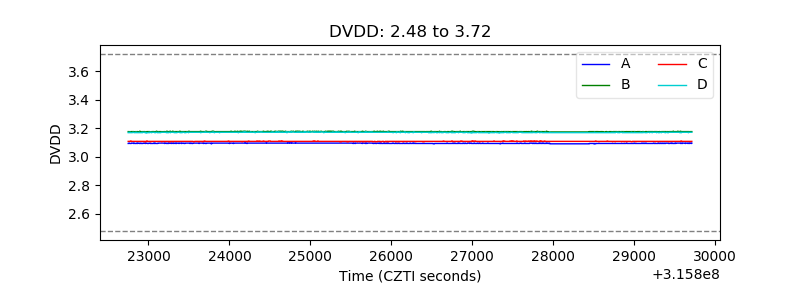

| D_VDD |  |

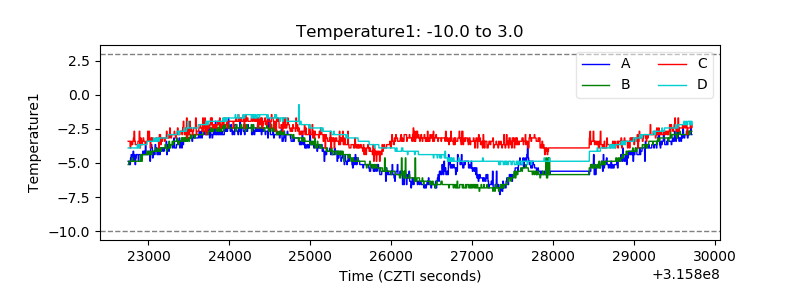

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

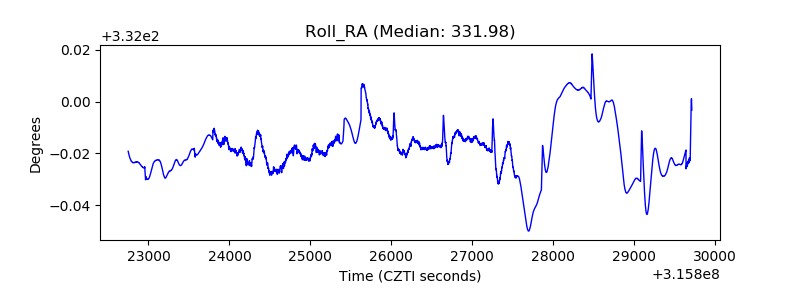

| _Roll_RA |  |
| Veto Counter |  |
