| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23085cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23085cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,747,200 | 91,494,720 |
| Size | 453.7 MB | 87.3 MB |
| Events in quadrant A | 3,614,943 | 583,708 |
| Events in quadrant B | 3,211,215 | 607,789 |
| Events in quadrant C | 3,418,960 | 578,523 |
| Events in quadrant D | 3,738,439 | 564,279 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14679 | 1 |
| B | 0 | 13373 | 1 |
| C | 0 | 13932 | 2 |
| D | 0 | 15293 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6260 | 48 | 0.766773% |
| B | 6260 | 35 | 0.559105% |
| C | 6259 | 93 | 1.485860% |
| D | 6259 | 53 | 0.846781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6261 | 19 | 19 | 0.25% | 0.30% |  |
| B | 7530 | 6261 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7529 | 6260 | 18 | 18 | 0.24% | 0.29% |  |
| D | 7529 | 6260 | 42 | 42 | 0.56% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 539901 | 3381.95 | 797 | 784 | 159.4 |
| A | 13 | 254 | 9902 | 57.2 | 797 | 784 | 159.4 |
| A | 0 | 226 | 6856 | 38.09 | 797 | 784 | 159.4 |
| B | 4 | 216 | 31253 | 204.0 | 804 | 786 | 149.4 |
| B | 12 | 111 | 17828 | 114.11 | 804 | 786 | 149.4 |
| B | 11 | 111 | 15841 | 100.8 | 804 | 786 | 149.4 |
| C | 0 | 10 | 177909 | 969.48 | 784 | 791 | 182.7 |
| C | 14 | 238 | 124868 | 679.15 | 784 | 791 | 182.7 |
| C | 0 | 207 | 25083 | 132.97 | 784 | 791 | 182.7 |
| D | 1 | 52 | 518170 | 2701.87 | 792 | 772 | 191.5 |
| D | 7 | 238 | 161285 | 838.2 | 792 | 772 | 191.5 |
| D | 12 | 227 | 44290 | 227.25 | 792 | 772 | 191.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

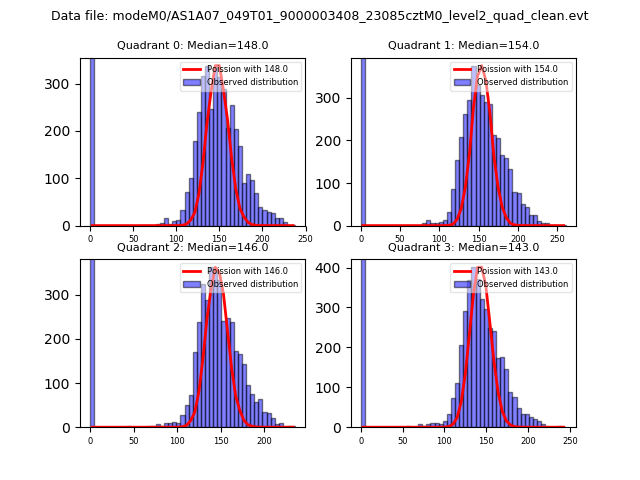

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

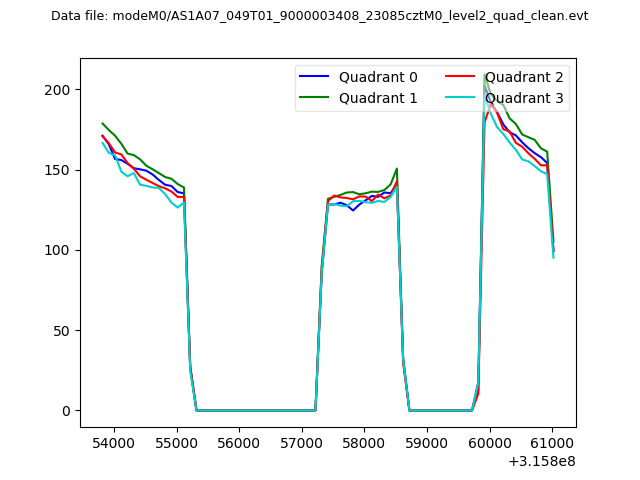

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

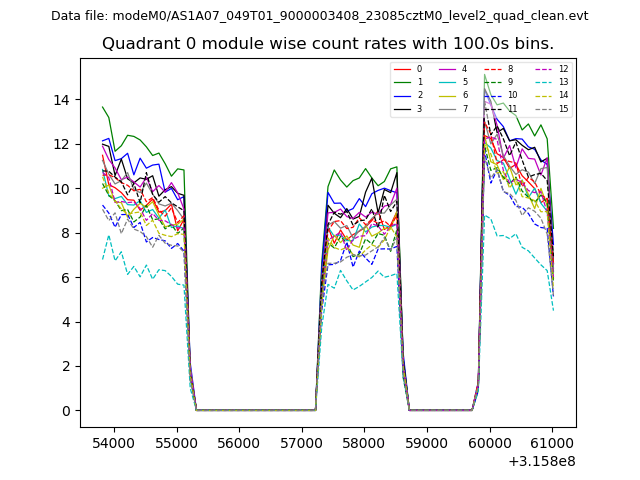

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
