| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_049T01_9000003408_23092cztM0_level2.evt | modeM0/AS1A07_049T01_9000003408_23092cztM0_level2_quad_clean.evt |
| Size (bytes) | 690,557,760 | 92,952,000 |
| Size | 658.6 MB | 88.6 MB |
| Events in quadrant A | 9,003,424 | 526,874 |
| Events in quadrant B | 3,721,532 | 604,205 |
| Events in quadrant C | 3,764,369 | 579,978 |
| Events in quadrant D | 3,906,025 | 571,486 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31816 | 1 |
| B | 0 | 16017 | 1 |
| C | 0 | 16108 | 1 |
| D | 0 | 16834 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7649 | 2061 | 26.944699% |
| B | 7650 | 262 | 3.424837% |
| C | 7650 | 253 | 3.307190% |
| D | 7650 | 123 | 1.607843% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

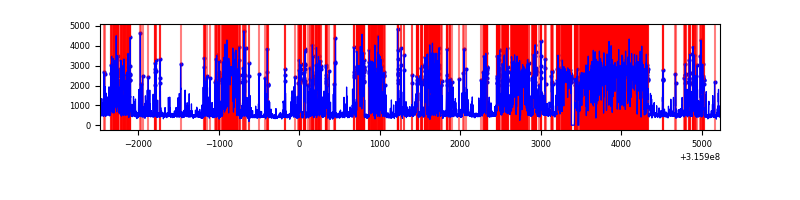

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7704 | 7649 | 1671 | 1671 | 21.69% | 21.85% |  |
| B | 7705 | 7652 | 14 | 14 | 0.18% | 0.18% |  |
| C | 7705 | 7652 | 21 | 21 | 0.27% | 0.27% |  |
| D | 7705 | 7652 | 24 | 24 | 0.31% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 5970188 | 37596.43 | 784 | 768 | 158.8 |
| A | 13 | 254 | 9404 | 54.39 | 784 | 768 | 158.8 |
| A | 2 | 79 | 7557 | 42.76 | 784 | 768 | 158.8 |
| B | 10 | 247 | 49312 | 272.53 | 922 | 899 | 177.6 |
| B | 12 | 111 | 22358 | 120.8 | 922 | 899 | 177.6 |
| B | 4 | 216 | 22077 | 119.22 | 922 | 899 | 177.6 |
| C | 14 | 238 | 140580 | 665.08 | 893 | 899 | 210.0 |
| C | 10 | 9 | 77260 | 363.59 | 893 | 899 | 210.0 |
| C | 0 | 207 | 33933 | 157.29 | 893 | 899 | 210.0 |
| D | 13 | 172 | 349504 | 1550.05 | 911 | 881 | 224.9 |
| D | 1 | 52 | 60566 | 265.37 | 911 | 881 | 224.9 |
| D | 2 | 234 | 29953 | 129.26 | 911 | 881 | 224.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

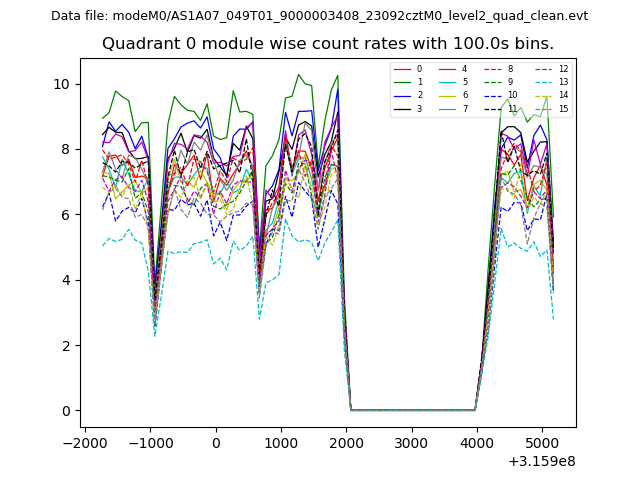

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

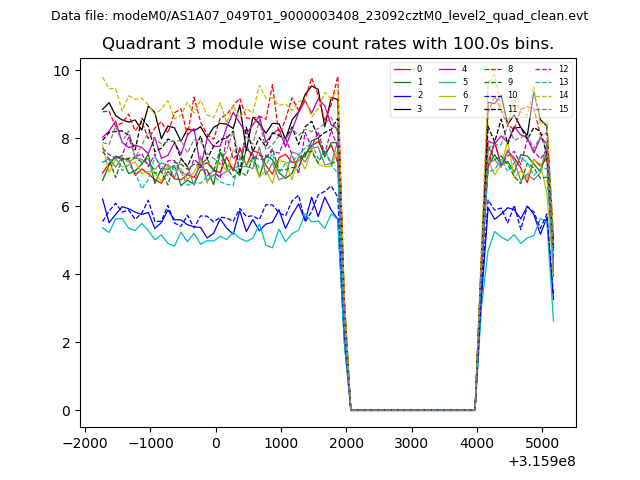

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

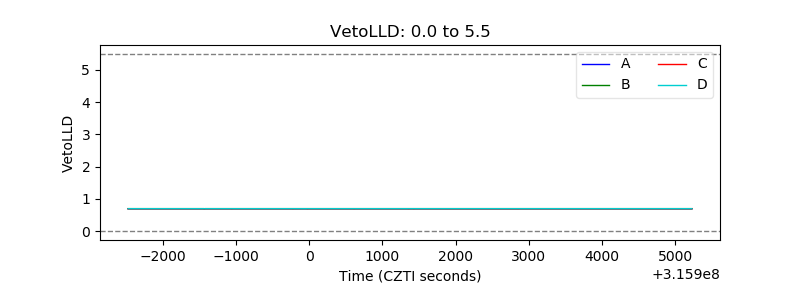

| Veto LLD |  |
| Alpha Counter |  |

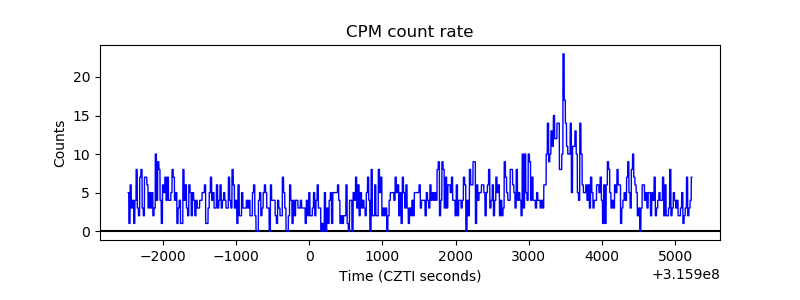

| _CPM_Rate |  |

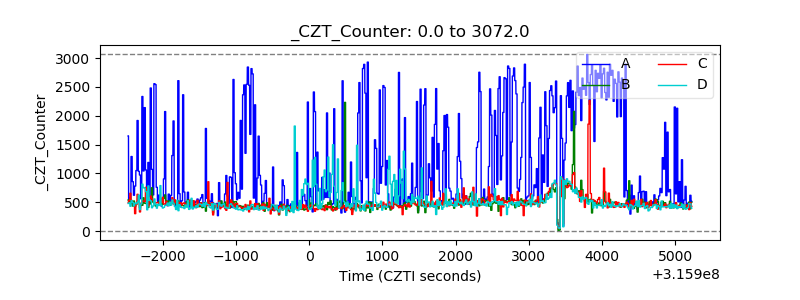

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

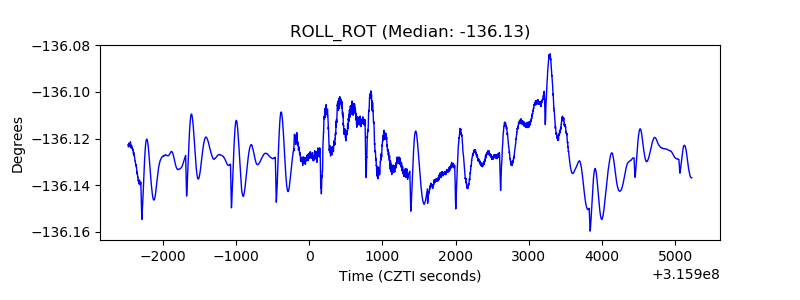

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

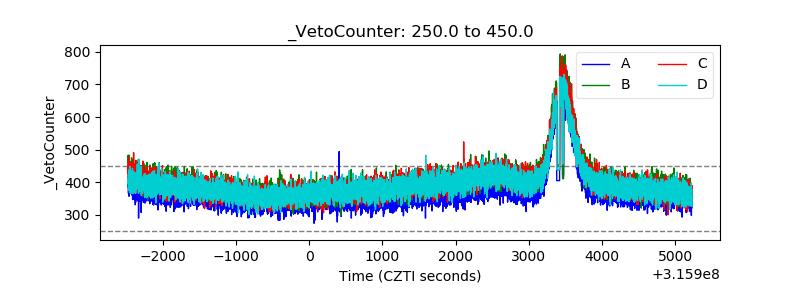

| Veto Counter |  |
