| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003406_23047cztM0_level2.evt | modeM0/AS1A07_054T01_9000003406_23047cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,367,040 | 104,849,280 |
| Size | 427.6 MB | 100.0 MB |
| Events in quadrant A | 2,997,110 | 691,566 |
| Events in quadrant B | 3,319,352 | 704,955 |
| Events in quadrant C | 2,969,239 | 672,972 |
| Events in quadrant D | 3,854,665 | 656,072 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13338 | 1 |
| B | 0 | 14196 | 1 |
| C | 0 | 13211 | 1 |
| D | 0 | 16034 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 86 | 1.333127% |
| B | 6451 | 142 | 2.201209% |
| C | 6451 | 81 | 1.255619% |
| D | 6451 | 193 | 2.991784% |

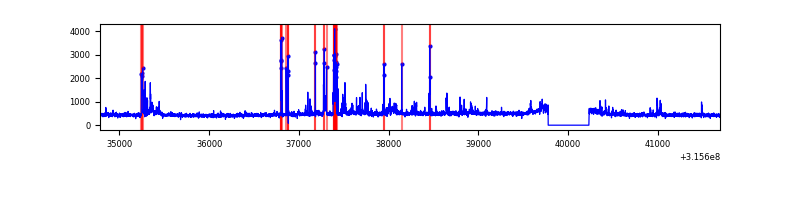

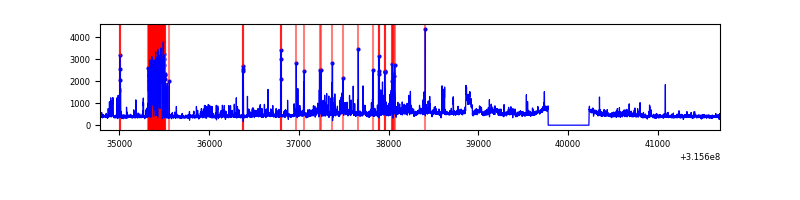

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6906 | 6452 | 23 | 23 | 0.33% | 0.36% |  |
| B | 6906 | 6452 | 37 | 37 | 0.54% | 0.57% |  |
| C | 6906 | 6452 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6906 | 6452 | 151 | 151 | 2.19% | 2.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 107137 | 709.61 | 747 | 731 | 150.0 |
| A | 2 | 79 | 10177 | 62.99 | 747 | 731 | 150.0 |
| A | 13 | 254 | 8571 | 52.28 | 747 | 731 | 150.0 |
| B | 3 | 64 | 168676 | 1169.95 | 749 | 730 | 143.5 |
| B | 0 | 189 | 134747 | 933.6 | 749 | 730 | 143.5 |
| B | 4 | 216 | 48935 | 335.81 | 749 | 730 | 143.5 |
| C | 14 | 238 | 116054 | 689.42 | 718 | 720 | 167.3 |
| C | 0 | 207 | 23126 | 133.93 | 718 | 720 | 167.3 |
| C | 0 | 10 | 19684 | 113.36 | 718 | 720 | 167.3 |
| D | 1 | 52 | 902254 | 5196.13 | 721 | 699 | 173.5 |
| D | 13 | 172 | 146573 | 840.75 | 721 | 699 | 173.5 |
| D | 13 | 153 | 25992 | 145.78 | 721 | 699 | 173.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

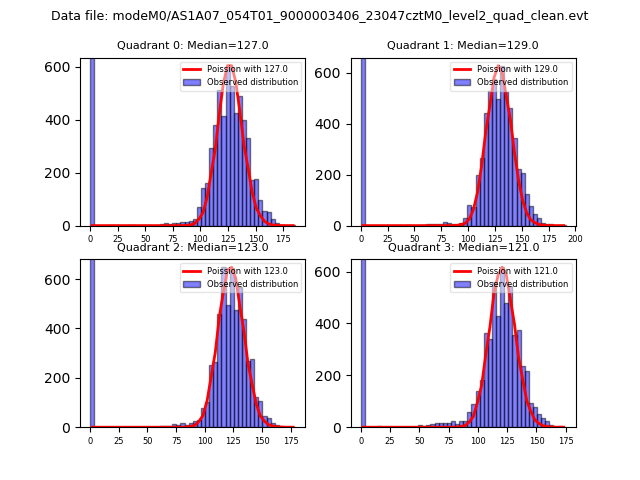

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

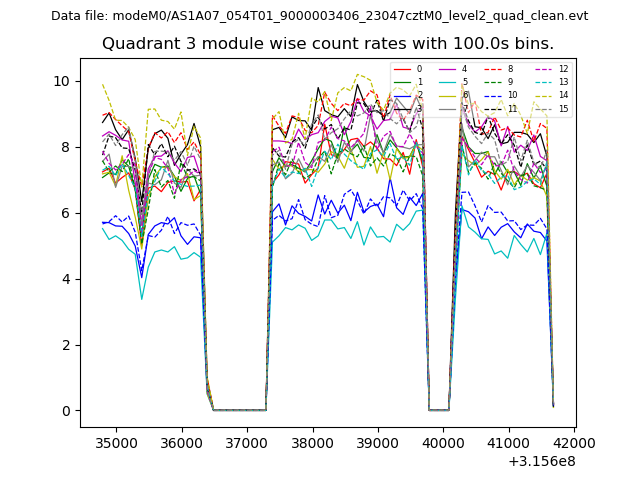

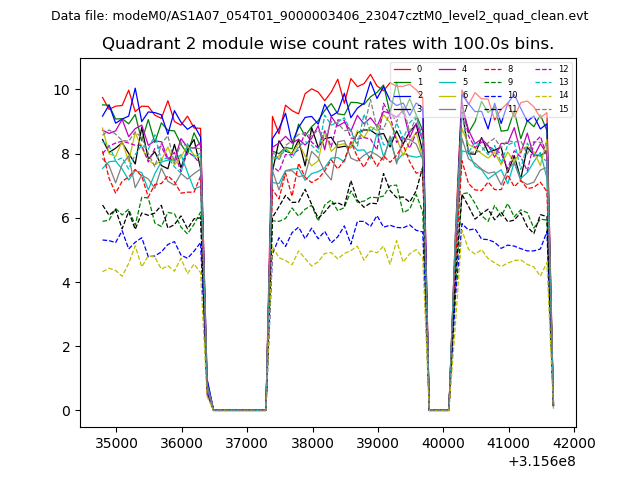

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
