| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003406_23057cztM0_level2.evt | modeM0/AS1A07_054T01_9000003406_23057cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,971,520 | 125,357,760 |
| Size | 450.1 MB | 119.6 MB |
| Events in quadrant A | 3,102,899 | 841,826 |
| Events in quadrant B | 3,301,733 | 877,244 |
| Events in quadrant C | 3,326,140 | 842,421 |
| Events in quadrant D | 4,143,949 | 804,668 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13327 | 3 |
| B | 0 | 13823 | 2 |
| C | 0 | 13982 | 2 |
| D | 0 | 16659 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6169 | 30 | 0.486302% |
| B | 6170 | 81 | 1.312804% |
| C | 6170 | 124 | 2.009724% |
| D | 6170 | 99 | 1.604538% |

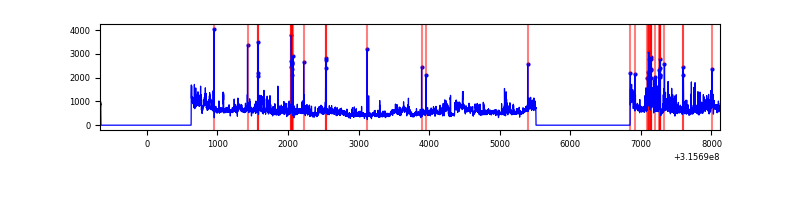

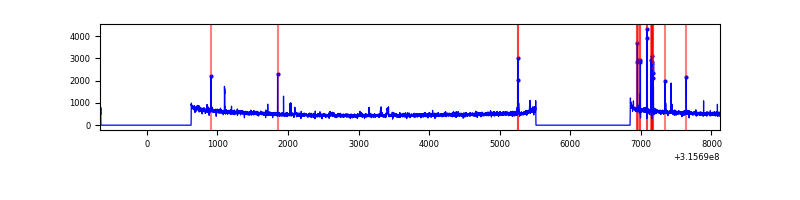

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8784 | 6171 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8785 | 6172 | 22 | 22 | 0.25% | 0.36% |  |
| C | 8785 | 6172 | 8 | 8 | 0.09% | 0.13% |  |
| D | 8785 | 6172 | 45 | 45 | 0.51% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10426 | 61.14 | 800 | 786 | 157.7 |
| A | 2 | 79 | 9010 | 52.16 | 800 | 786 | 157.7 |
| A | 6 | 16 | 7003 | 39.43 | 800 | 786 | 157.7 |
| B | 4 | 216 | 93099 | 611.44 | 814 | 794 | 151.0 |
| B | 12 | 111 | 17038 | 107.6 | 814 | 794 | 151.0 |
| B | 11 | 111 | 14706 | 92.15 | 814 | 794 | 151.0 |
| C | 14 | 238 | 128549 | 699.48 | 792 | 798 | 182.6 |
| C | 10 | 22 | 40066 | 215.0 | 792 | 798 | 182.6 |
| C | 0 | 207 | 34089 | 182.28 | 792 | 798 | 182.6 |
| D | 1 | 52 | 978693 | 5174.02 | 787 | 766 | 189.0 |
| D | 12 | 227 | 60632 | 316.74 | 787 | 766 | 189.0 |
| D | 13 | 172 | 50611 | 263.72 | 787 | 766 | 189.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

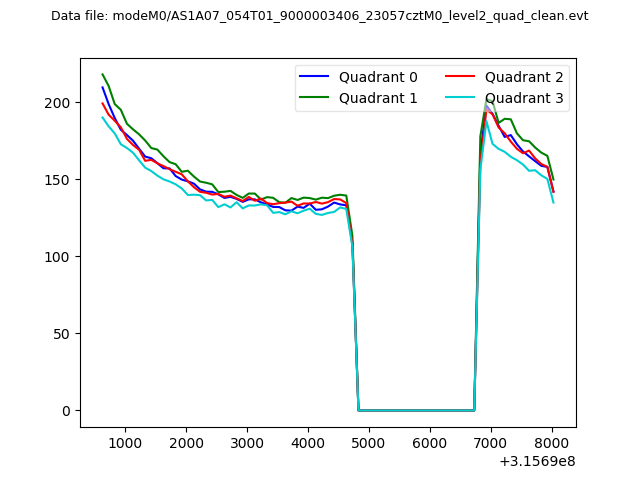

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

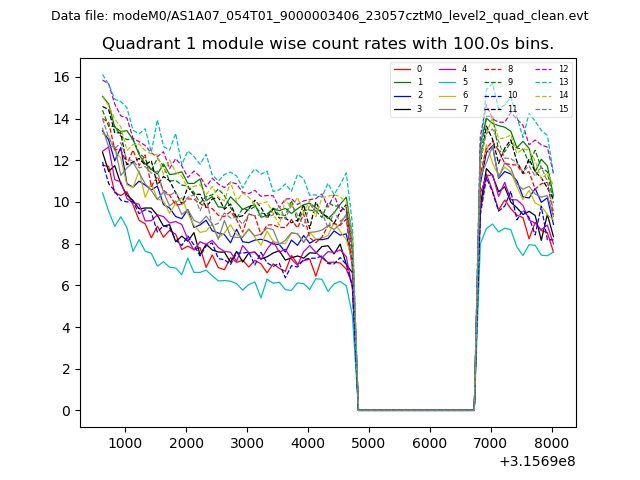

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

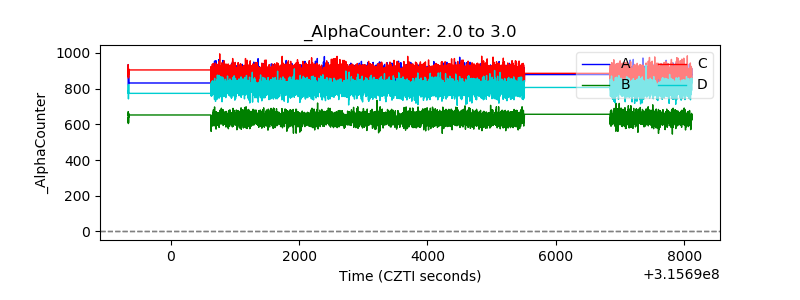

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

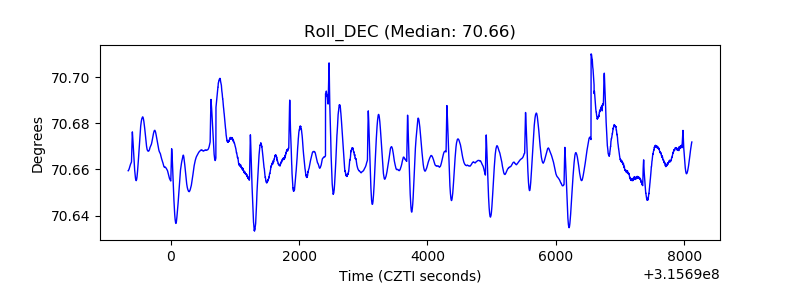

| _Roll_DEC |  |

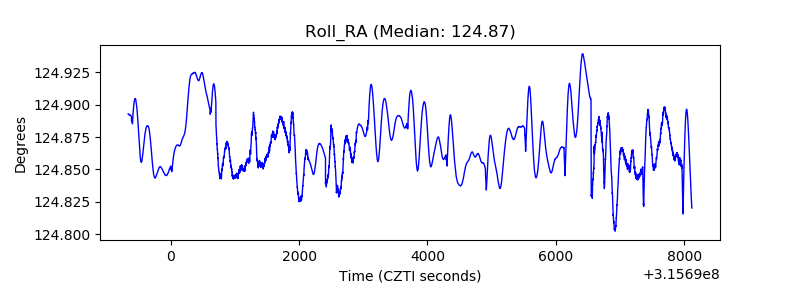

| _Roll_RA |  |

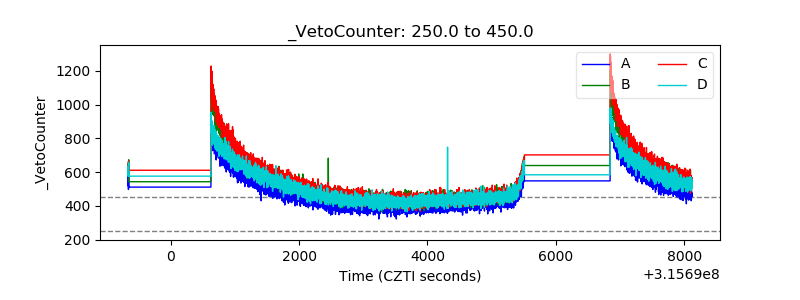

| Veto Counter |  |
