| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T01_9000003414_23115cztM0_level2.evt | modeM0/AS1A08_008T01_9000003414_23115cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,712,960 | 124,395,840 |
| Size | 560.5 MB | 118.6 MB |
| Events in quadrant A | 7,250,835 | 757,889 |
| Events in quadrant B | 3,406,463 | 912,096 |
| Events in quadrant C | 3,029,080 | 853,346 |
| Events in quadrant D | 3,702,348 | 820,967 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25606 | 1 |
| B | 0 | 14062 | 1 |
| C | 0 | 12831 | 1 |
| D | 0 | 15270 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6049 | 1688 | 27.905439% |
| B | 6049 | 153 | 2.529344% |
| C | 6050 | 50 | 0.826446% |
| D | 6050 | 89 | 1.471074% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

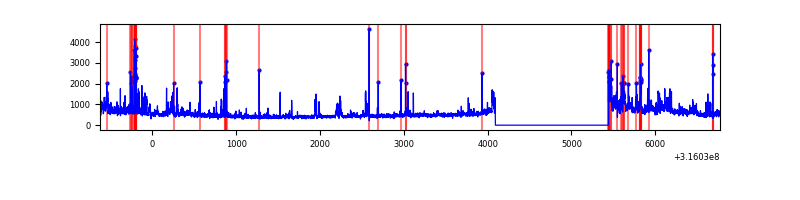

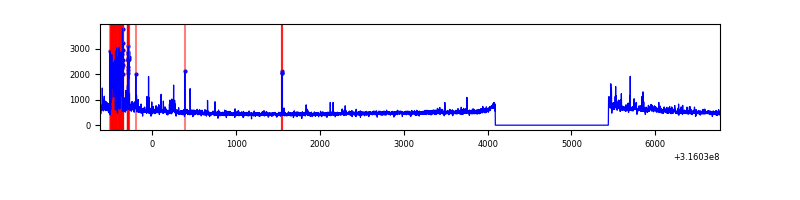

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7399 | 6050 | 1401 | 1401 | 18.93% | 23.16% |  |
| B | 7399 | 6050 | 87 | 87 | 1.18% | 1.44% |  |
| C | 7400 | 6051 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7400 | 6051 | 61 | 61 | 0.82% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 4665335 | 34843.09 | 671 | 660 | 133.9 |
| A | 13 | 254 | 9031 | 62.52 | 671 | 660 | 133.9 |
| A | 0 | 226 | 5969 | 39.65 | 671 | 660 | 133.9 |
| B | 0 | 189 | 268413 | 1876.19 | 768 | 750 | 142.7 |
| B | 0 | 190 | 53518 | 369.88 | 768 | 750 | 142.7 |
| B | 0 | 228 | 32002 | 219.06 | 768 | 750 | 142.7 |
| C | 14 | 238 | 119813 | 709.56 | 726 | 729 | 167.8 |
| C | 0 | 207 | 48376 | 283.9 | 726 | 729 | 167.8 |
| C | 0 | 10 | 13046 | 73.39 | 726 | 729 | 167.8 |
| D | 1 | 239 | 334729 | 1884.02 | 726 | 704 | 177.3 |
| D | 12 | 233 | 289632 | 1629.66 | 726 | 704 | 177.3 |
| D | 5 | 243 | 120150 | 673.72 | 726 | 704 | 177.3 |

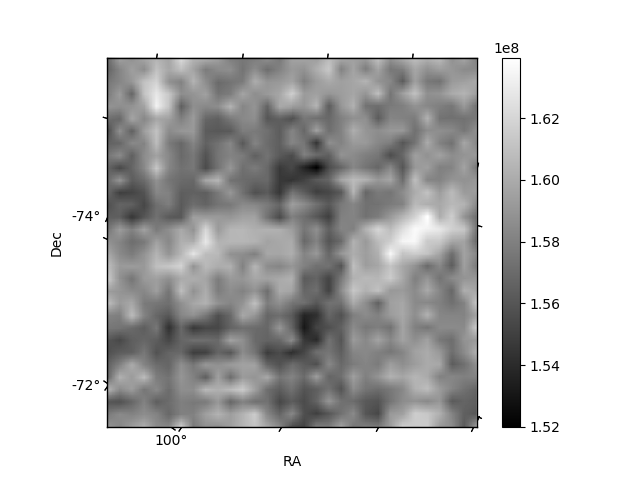

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

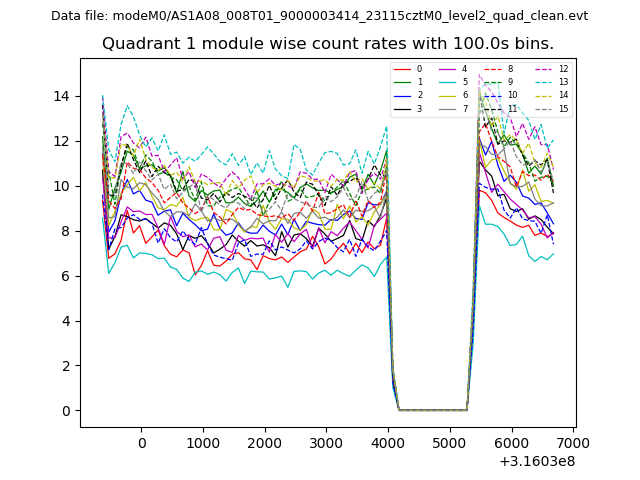

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

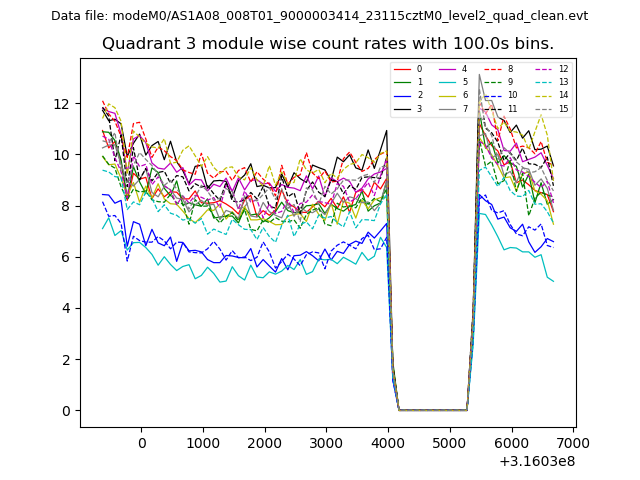

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

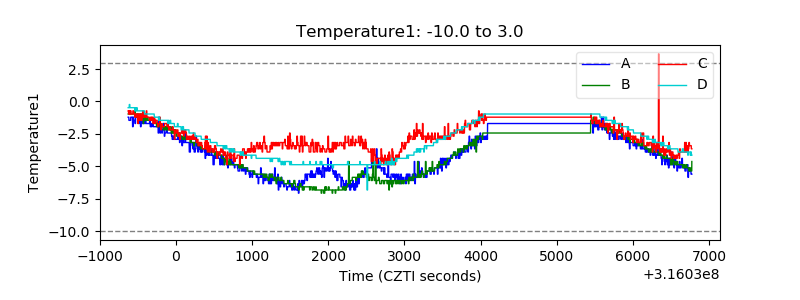

| Temperature 1 |  |

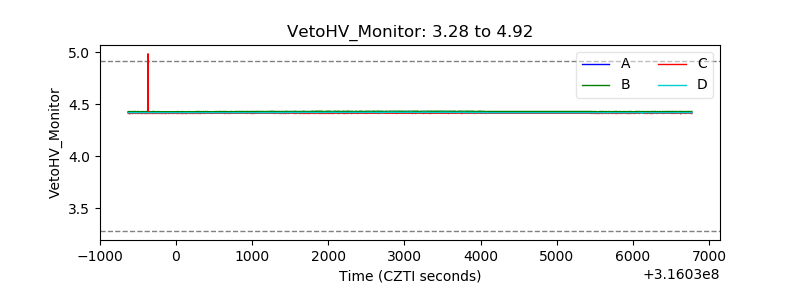

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

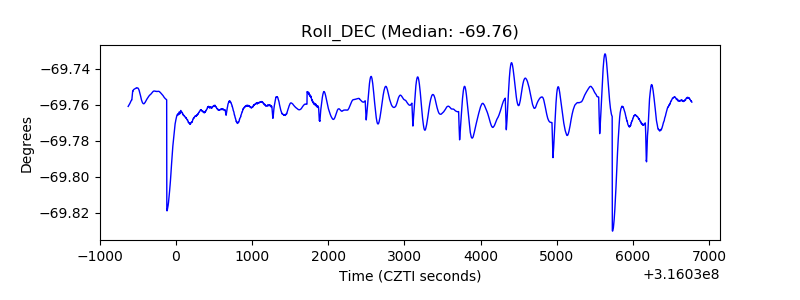

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
