| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_173T01_9000003416_23129cztM0_level2.evt | modeM0/AS1T03_173T01_9000003416_23129cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,532,480 | 121,743,360 |
| Size | 485.9 MB | 116.1 MB |
| Events in quadrant A | 3,728,999 | 830,295 |
| Events in quadrant B | 3,109,491 | 864,656 |
| Events in quadrant C | 4,774,618 | 780,556 |
| Events in quadrant D | 3,418,478 | 800,142 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14974 | 1 |
| B | 0 | 13144 | 1 |
| C | 0 | 18178 | 1 |
| D | 0 | 14248 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5885 | 230 | 3.908241% |
| B | 5886 | 73 | 1.240231% |
| C | 5886 | 791 | 13.438668% |
| D | 5886 | 140 | 2.378525% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

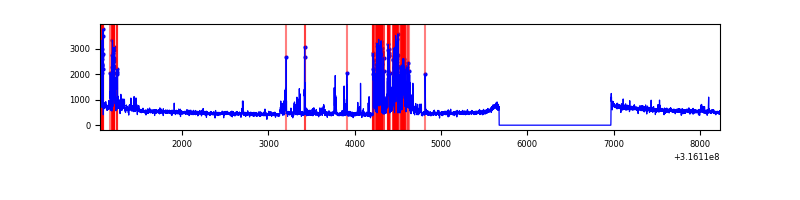

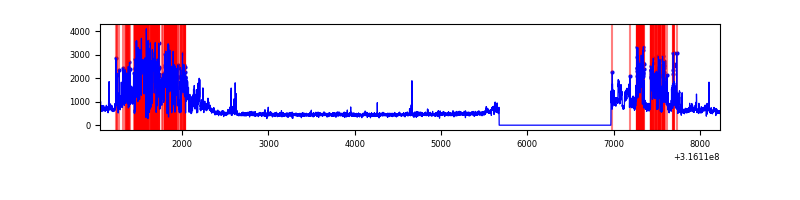

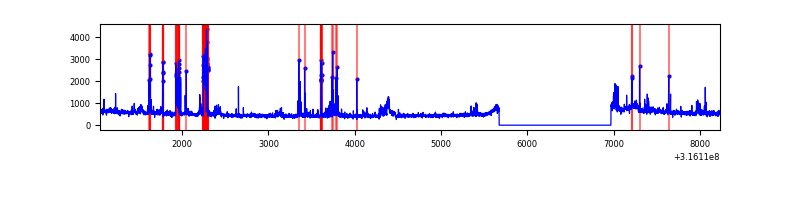

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 5886 | 150 | 150 | 2.09% | 2.55% |  |
| B | 7181 | 5886 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7181 | 5887 | 402 | 402 | 5.60% | 6.83% |  |
| D | 7181 | 5887 | 92 | 92 | 1.28% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 781266 | 5225.5 | 759 | 746 | 149.4 |
| A | 2 | 79 | 15589 | 99.37 | 759 | 746 | 149.4 |
| A | 13 | 254 | 10067 | 62.4 | 759 | 746 | 149.4 |
| B | 0 | 190 | 57675 | 393.84 | 775 | 757 | 144.5 |
| B | 12 | 111 | 15793 | 104.04 | 775 | 757 | 144.5 |
| B | 11 | 111 | 13826 | 90.43 | 775 | 757 | 144.5 |
| C | 8 | 208 | 1733066 | 10550.5 | 720 | 728 | 164.2 |
| C | 14 | 238 | 115948 | 701.73 | 720 | 728 | 164.2 |
| C | 2 | 16 | 79749 | 481.26 | 720 | 728 | 164.2 |
| D | 2 | 82 | 210526 | 1165.3 | 754 | 734 | 180.0 |
| D | 13 | 153 | 82591 | 454.68 | 754 | 734 | 180.0 |
| D | 7 | 38 | 72295 | 397.49 | 754 | 734 | 180.0 |

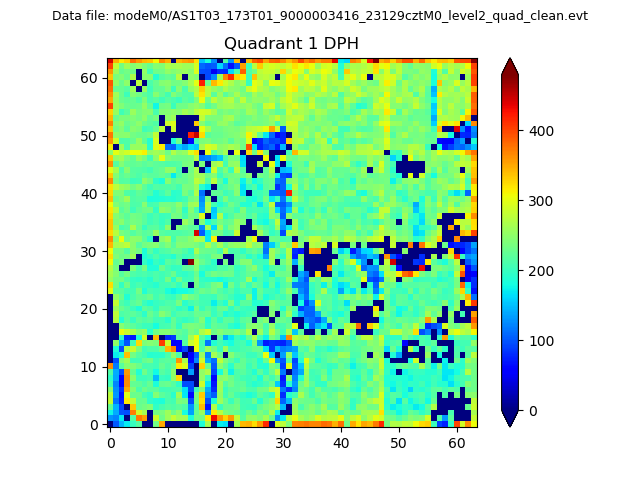

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

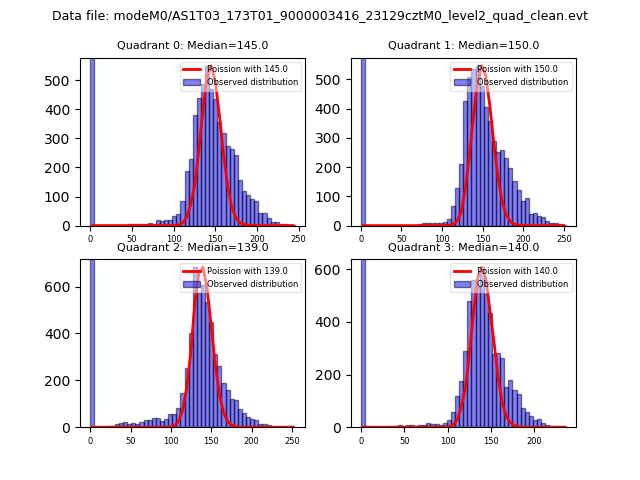

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

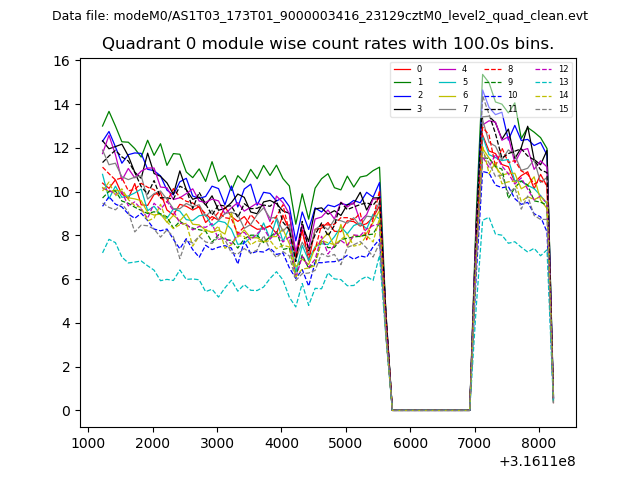

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

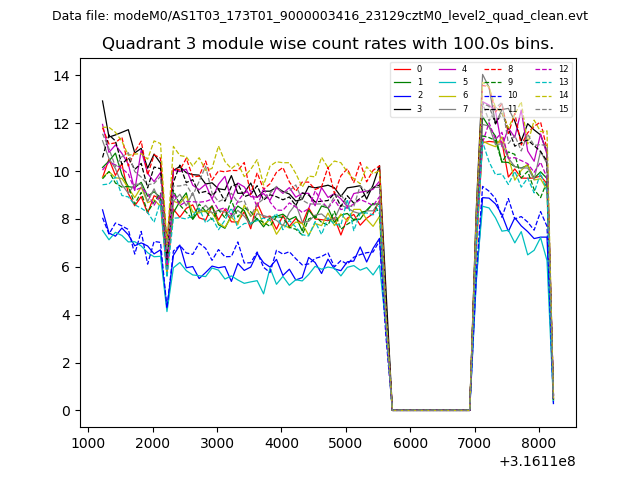

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

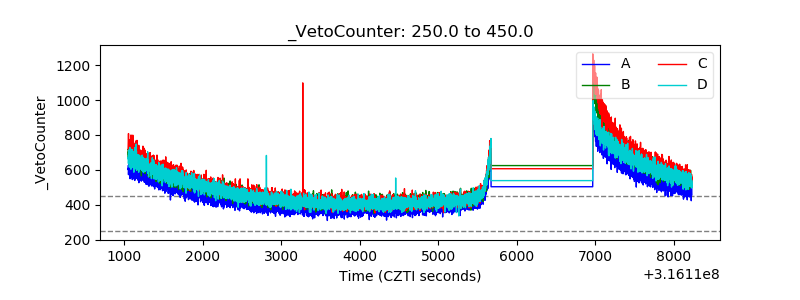

| Veto Counter |  |
