| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_173T01_9000003416_23134cztM0_level2.evt | modeM0/AS1T03_173T01_9000003416_23134cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,320,320 | 134,498,880 |
| Size | 548.7 MB | 128.3 MB |
| Events in quadrant A | 3,808,466 | 892,090 |
| Events in quadrant B | 3,832,142 | 911,394 |
| Events in quadrant C | 3,940,902 | 875,258 |
| Events in quadrant D | 5,294,497 | 833,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16805 | 2 |
| B | 0 | 16792 | 1 |
| C | 0 | 17014 | 1 |
| D | 0 | 21398 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8075 | 45 | 0.557276% |
| B | 8075 | 92 | 1.139319% |
| C | 8076 | 136 | 1.684002% |
| D | 8076 | 409 | 5.064388% |

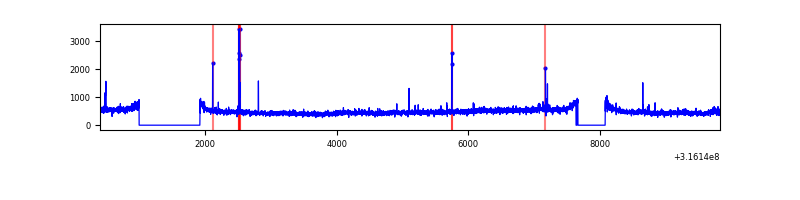

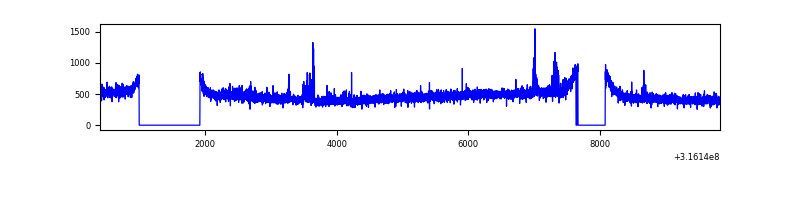

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9430 | 8078 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9430 | 8078 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9431 | 8079 | 9 | 9 | 0.10% | 0.11% |  |
| D | 9431 | 8079 | 327 | 327 | 3.47% | 4.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 102020 | 521.08 | 961 | 938 | 194.0 |
| A | 13 | 254 | 11862 | 56.31 | 961 | 938 | 194.0 |
| A | 3 | 137 | 8511 | 39.04 | 961 | 938 | 194.0 |
| B | 0 | 189 | 23111 | 121.29 | 965 | 938 | 182.8 |
| B | 12 | 111 | 22484 | 117.86 | 965 | 938 | 182.8 |
| B | 11 | 111 | 19711 | 102.69 | 965 | 938 | 182.8 |
| C | 14 | 238 | 146857 | 679.94 | 927 | 932 | 214.6 |
| C | 8 | 208 | 67140 | 308.5 | 927 | 932 | 214.6 |
| C | 0 | 10 | 51177 | 234.12 | 927 | 932 | 214.6 |
| D | 1 | 239 | 1024669 | 4596.45 | 917 | 888 | 222.7 |
| D | 1 | 52 | 449167 | 2012.63 | 917 | 888 | 222.7 |
| D | 10 | 103 | 98119 | 436.54 | 917 | 888 | 222.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

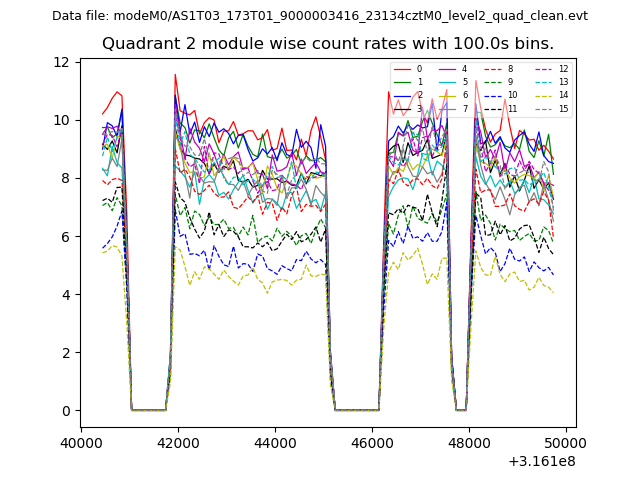

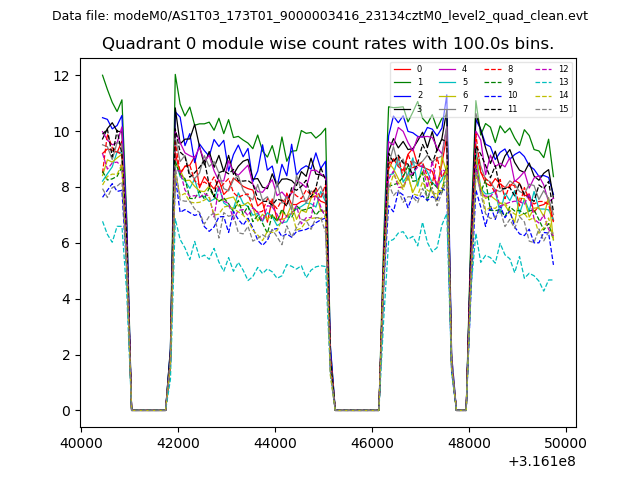

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

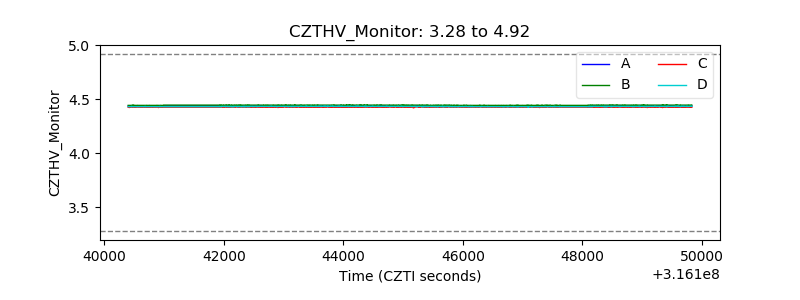

| CZT HV Monitor |  |
| D_VDD |  |

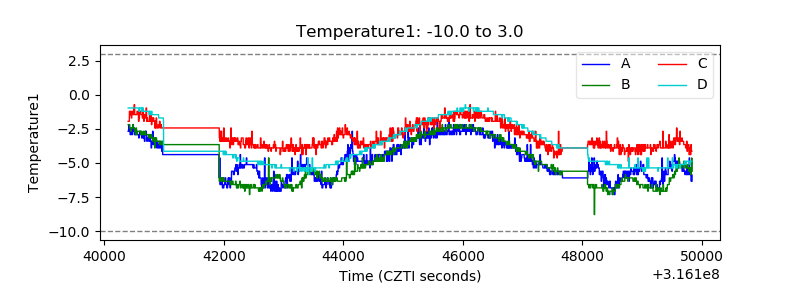

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

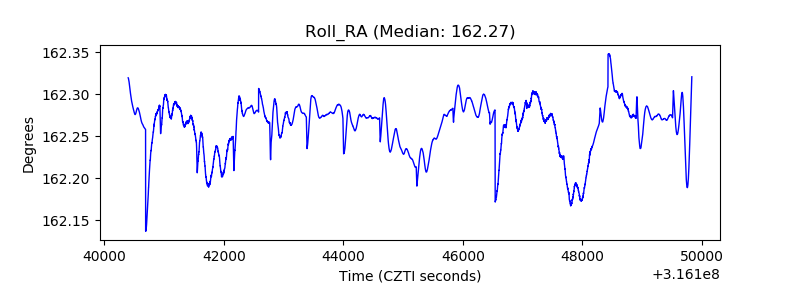

| _Roll_RA |  |

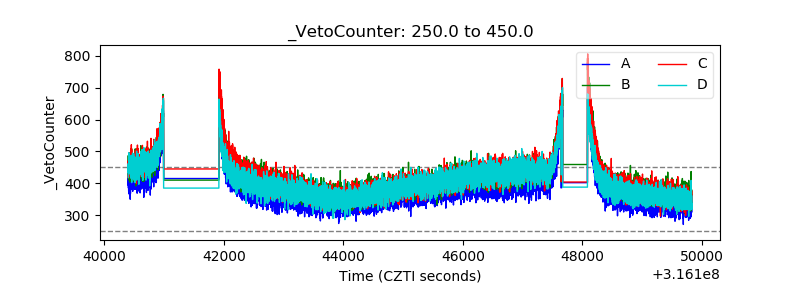

| Veto Counter |  |
