| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_173T01_9000003416_23136cztM0_level2.evt | modeM0/AS1T03_173T01_9000003416_23136cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,255,040 | 126,144,000 |
| Size | 482.8 MB | 120.3 MB |
| Events in quadrant A | 3,515,037 | 825,127 |
| Events in quadrant B | 3,590,944 | 848,931 |
| Events in quadrant C | 3,722,841 | 811,335 |
| Events in quadrant D | 3,974,751 | 794,643 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15900 | 2 |
| B | 0 | 15976 | 2 |
| C | 0 | 16241 | 3 |
| D | 0 | 17258 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7778 | 117 | 1.504243% |
| B | 7778 | 142 | 1.825662% |
| C | 7777 | 113 | 1.453002% |
| D | 7777 | 118 | 1.517295% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8123 | 7780 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8123 | 7780 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8122 | 7779 | 8 | 8 | 0.10% | 0.10% |  |
| D | 8122 | 7779 | 54 | 54 | 0.66% | 0.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11830 | 59.36 | 908 | 887 | 184.3 |
| A | 6 | 16 | 11521 | 57.68 | 908 | 887 | 184.3 |
| A | 3 | 137 | 8280 | 40.1 | 908 | 887 | 184.3 |
| B | 12 | 111 | 21670 | 118.95 | 909 | 883 | 174.8 |
| B | 11 | 111 | 19120 | 104.35 | 909 | 883 | 174.8 |
| B | 14 | 111 | 17226 | 93.52 | 909 | 883 | 174.8 |
| C | 14 | 238 | 135849 | 669.09 | 869 | 872 | 201.7 |
| C | 0 | 10 | 123737 | 609.05 | 869 | 872 | 201.7 |
| C | 7 | 247 | 19461 | 92.15 | 869 | 872 | 201.7 |
| D | 1 | 52 | 426950 | 2014.74 | 875 | 847 | 211.5 |
| D | 10 | 103 | 100281 | 470.15 | 875 | 847 | 211.5 |
| D | 13 | 153 | 49017 | 227.76 | 875 | 847 | 211.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

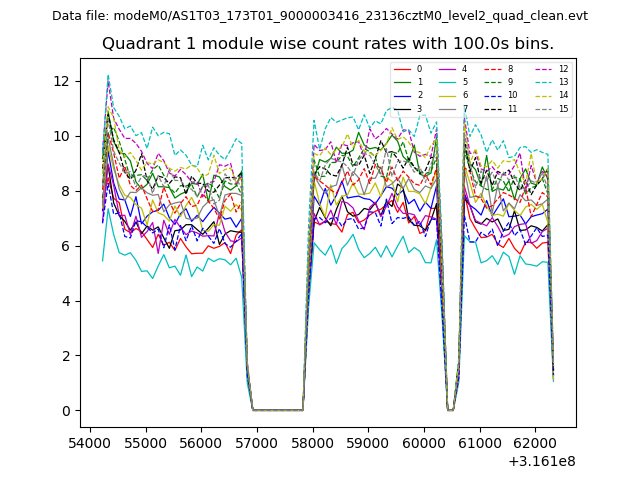

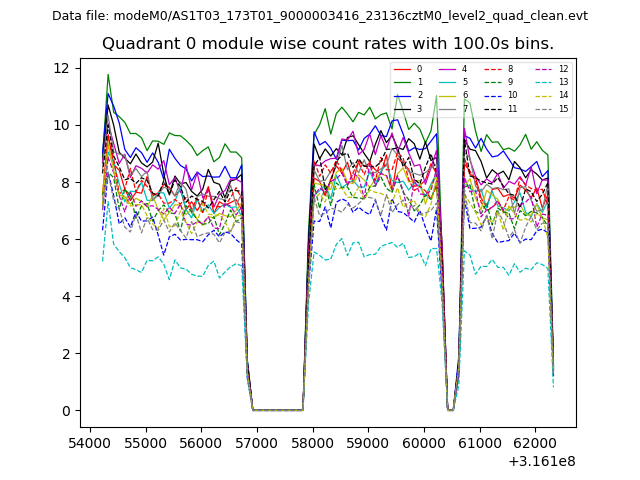

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

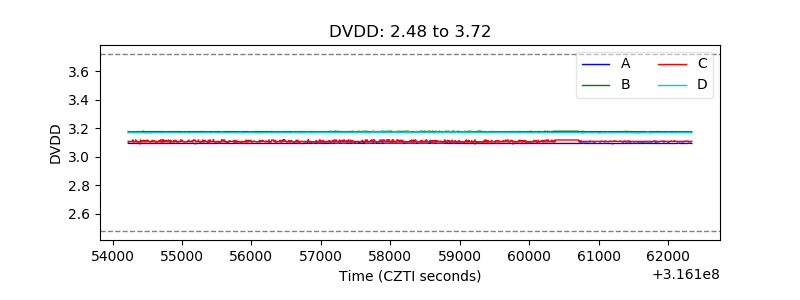

| D_VDD |  |

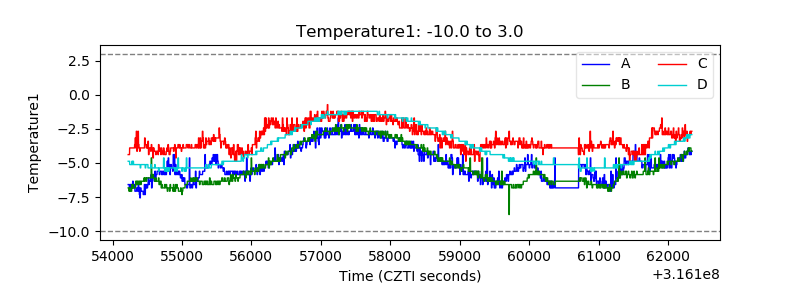

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

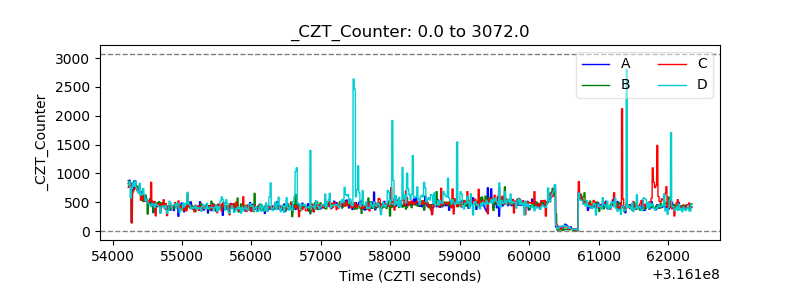

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

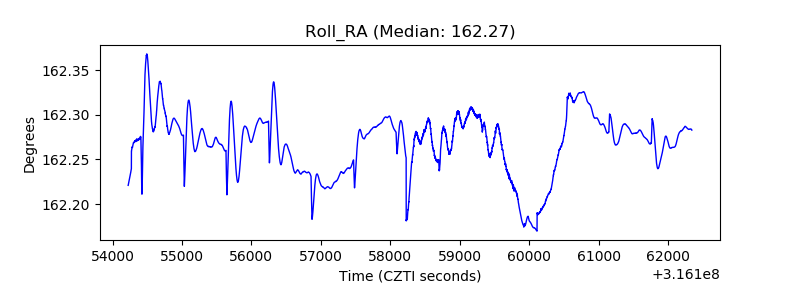

| _Roll_RA |  |

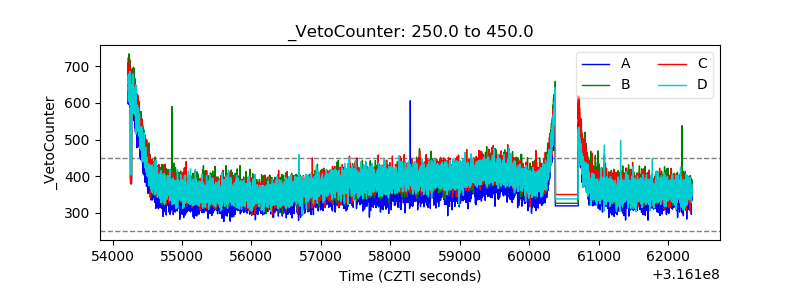

| Veto Counter |  |
