| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_175T01_9000003420_23147cztM0_level2.evt | modeM0/AS1T03_175T01_9000003420_23147cztM0_level2_quad_clean.evt |
| Size (bytes) | 141,431,040 | 22,026,240 |
| Size | 134.9 MB | 21.0 MB |
| Events in quadrant A | 932,865 | 134,400 |
| Events in quadrant B | 992,605 | 138,933 |
| Events in quadrant C | 1,087,700 | 134,781 |
| Events in quadrant D | 1,149,226 | 130,800 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3881 | 1 |
| B | 0 | 4053 | 1 |
| C | 0 | 4321 | 2 |
| D | 0 | 4577 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1744 | 41 | 2.350917% |
| B | 1744 | 70 | 4.013761% |
| C | 1743 | 130 | 7.458405% |
| D | 1743 | 74 | 4.245554% |

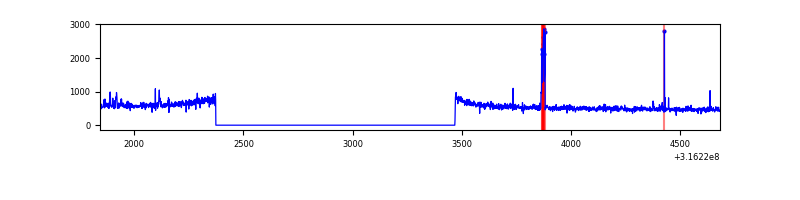

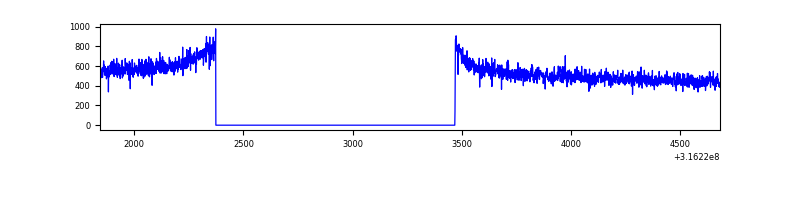

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2839 | 1744 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2839 | 1744 | 10 | 10 | 0.35% | 0.57% |  |
| C | 2838 | 1744 | 54 | 54 | 1.90% | 3.10% |  |
| D | 2838 | 1744 | 26 | 26 | 0.92% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2544 | 45.03 | 241 | 234 | 51.3 |
| A | 6 | 16 | 2472 | 43.62 | 241 | 234 | 51.3 |
| A | 3 | 137 | 2199 | 38.3 | 241 | 234 | 51.3 |
| B | 10 | 247 | 31456 | 642.8 | 242 | 235 | 48.6 |
| B | 0 | 190 | 7923 | 158.29 | 242 | 235 | 48.6 |
| B | 12 | 111 | 5970 | 118.08 | 242 | 235 | 48.6 |
| C | 0 | 10 | 153505 | 2790.62 | 228 | 229 | 54.9 |
| C | 14 | 238 | 35731 | 646.37 | 228 | 229 | 54.9 |
| C | 7 | 247 | 7816 | 138.13 | 228 | 229 | 54.9 |
| D | 1 | 52 | 110221 | 1867.26 | 235 | 228 | 58.9 |
| D | 7 | 238 | 41915 | 707.68 | 235 | 228 | 58.9 |
| D | 6 | 112 | 40250 | 679.42 | 235 | 228 | 58.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

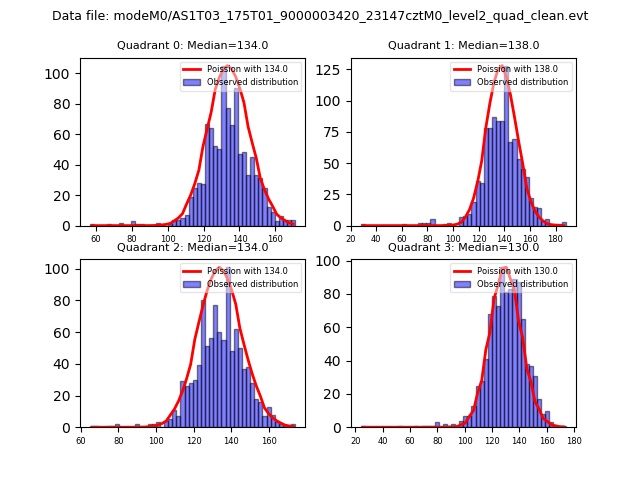

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

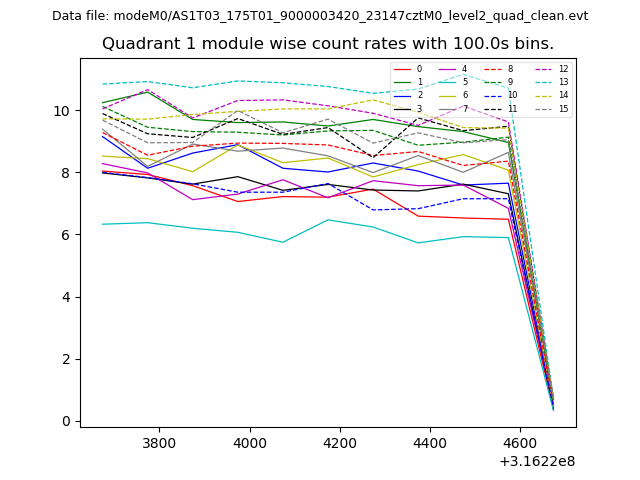

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

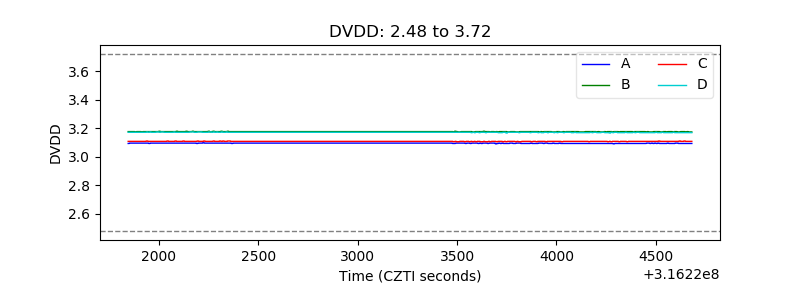

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

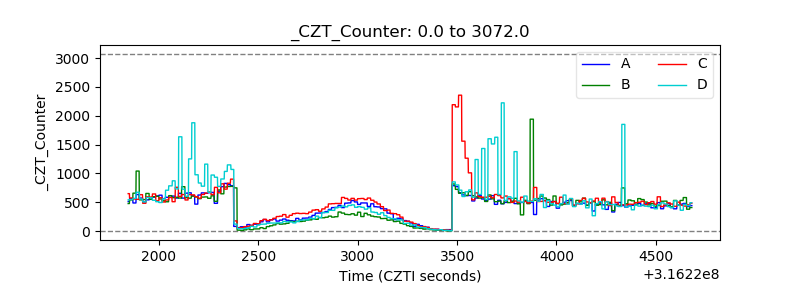

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

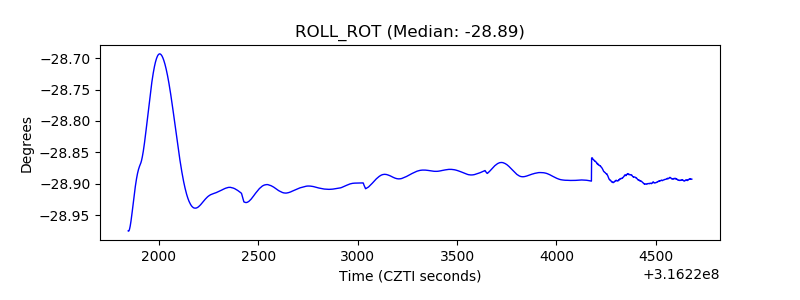

| _ROLL_ROT |  |
| _Roll_DEC |  |

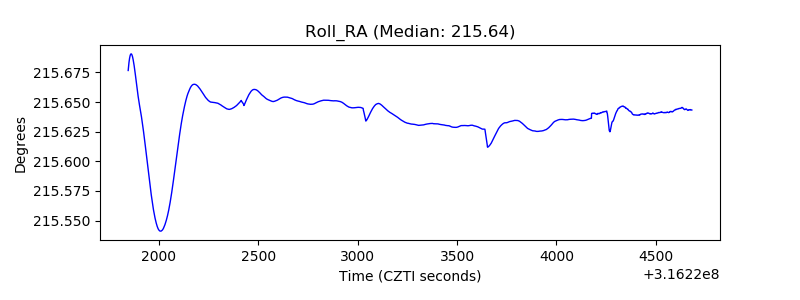

| _Roll_RA |  |
| Veto Counter |  |
