| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003422_23164cztM0_level2.evt | modeM0/AS1A08_009T01_9000003422_23164cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,421,440 | 125,683,200 |
| Size | 509.7 MB | 119.9 MB |
| Events in quadrant A | 3,744,775 | 815,301 |
| Events in quadrant B | 3,869,322 | 836,046 |
| Events in quadrant C | 4,103,739 | 802,945 |
| Events in quadrant D | 3,919,823 | 792,127 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16720 | 2 |
| B | 0 | 16963 | 2 |
| C | 0 | 17338 | 3 |
| D | 0 | 17527 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8063 | 72 | 0.892968% |
| B | 8064 | 127 | 1.574901% |
| C | 8063 | 179 | 2.220017% |
| D | 8063 | 69 | 0.855761% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8708 | 8066 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8709 | 8067 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8708 | 8066 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8708 | 8066 | 33 | 33 | 0.38% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11760 | 54.64 | 971 | 949 | 197.9 |
| A | 3 | 137 | 8799 | 39.67 | 971 | 949 | 197.9 |
| A | 0 | 226 | 8294 | 37.12 | 971 | 949 | 197.9 |
| B | 0 | 190 | 39065 | 205.88 | 972 | 948 | 185.1 |
| B | 12 | 111 | 23439 | 121.48 | 972 | 948 | 185.1 |
| B | 11 | 111 | 20538 | 105.81 | 972 | 948 | 185.1 |
| C | 0 | 10 | 260334 | 1186.17 | 935 | 936 | 218.7 |
| C | 14 | 238 | 148071 | 672.82 | 935 | 936 | 218.7 |
| C | 7 | 247 | 32718 | 145.33 | 935 | 936 | 218.7 |
| D | 1 | 52 | 205530 | 892.0 | 944 | 915 | 229.4 |
| D | 10 | 199 | 76922 | 331.35 | 944 | 915 | 229.4 |
| D | 13 | 153 | 41272 | 175.93 | 944 | 915 | 229.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

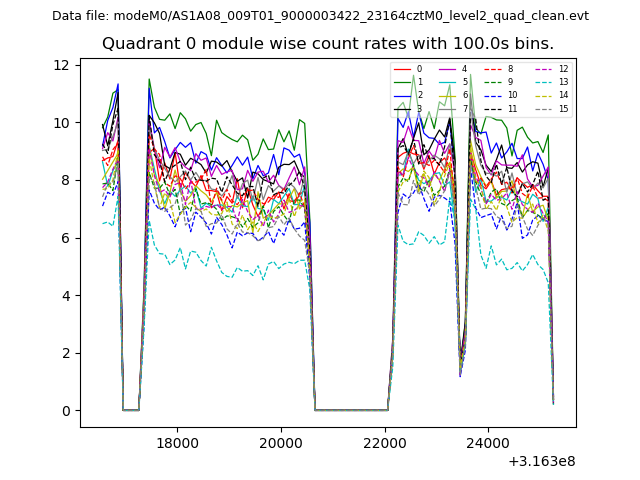

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

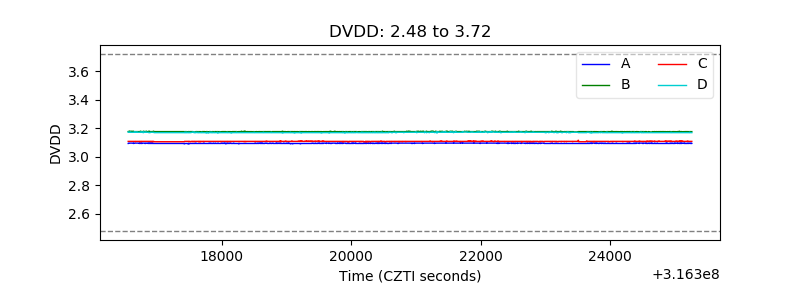

| D_VDD |  |

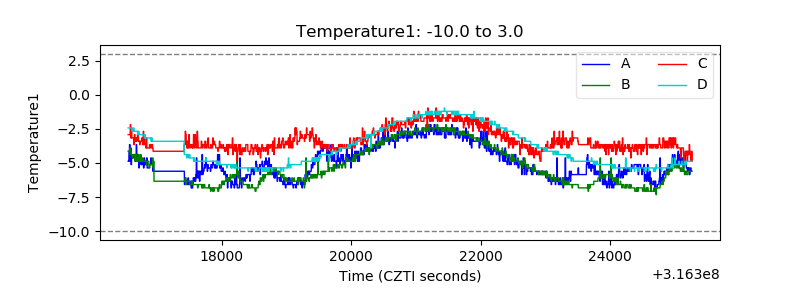

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

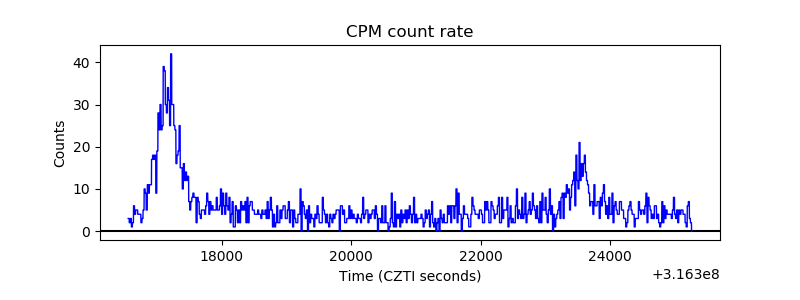

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

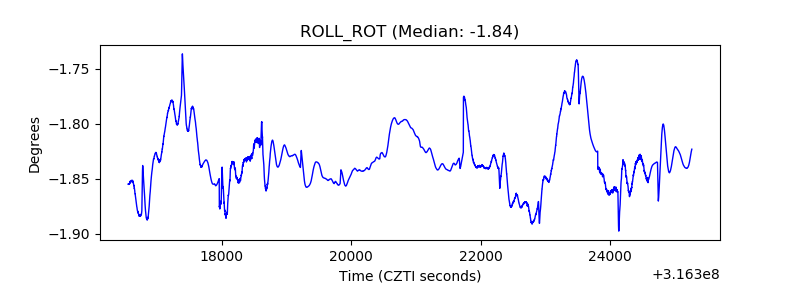

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
