| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003424_23174cztM0_level2.evt | modeM0/AS1A07_148T05_9000003424_23174cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,282,560 | 94,124,160 |
| Size | 527.7 MB | 89.8 MB |
| Events in quadrant A | 4,993,536 | 594,692 |
| Events in quadrant B | 3,319,456 | 633,222 |
| Events in quadrant C | 4,053,224 | 610,590 |
| Events in quadrant D | 3,981,284 | 590,455 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18897 | 2 |
| B | 0 | 13739 | 2 |
| C | 0 | 15835 | 2 |
| D | 0 | 15932 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6037 | 477 | 7.901275% |
| B | 6037 | 91 | 1.507371% |
| C | 6036 | 368 | 6.096753% |
| D | 6036 | 221 | 3.661365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 6038 | 312 | 312 | 4.19% | 5.17% |  |
| B | 7447 | 6038 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7446 | 6037 | 89 | 89 | 1.20% | 1.47% |  |
| D | 7446 | 6037 | 131 | 131 | 1.76% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 1863969 | 11489.24 | 812 | 800 | 162.2 |
| A | 13 | 254 | 9393 | 52.99 | 812 | 800 | 162.2 |
| A | 0 | 226 | 7052 | 38.55 | 812 | 800 | 162.2 |
| B | 12 | 111 | 17747 | 108.32 | 840 | 824 | 156.2 |
| B | 0 | 190 | 16823 | 102.41 | 840 | 824 | 156.2 |
| B | 11 | 111 | 15767 | 95.65 | 840 | 824 | 156.2 |
| C | 8 | 208 | 592693 | 3193.98 | 802 | 809 | 185.3 |
| C | 0 | 10 | 180163 | 967.85 | 802 | 809 | 185.3 |
| C | 14 | 238 | 129513 | 694.52 | 802 | 809 | 185.3 |
| D | 7 | 238 | 667629 | 3357.91 | 815 | 795 | 198.6 |
| D | 1 | 52 | 89493 | 446.65 | 815 | 795 | 198.6 |
| D | 1 | 239 | 82785 | 412.87 | 815 | 795 | 198.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

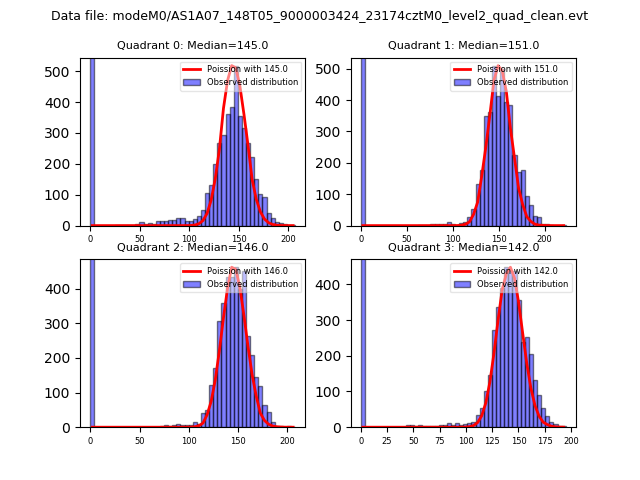

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

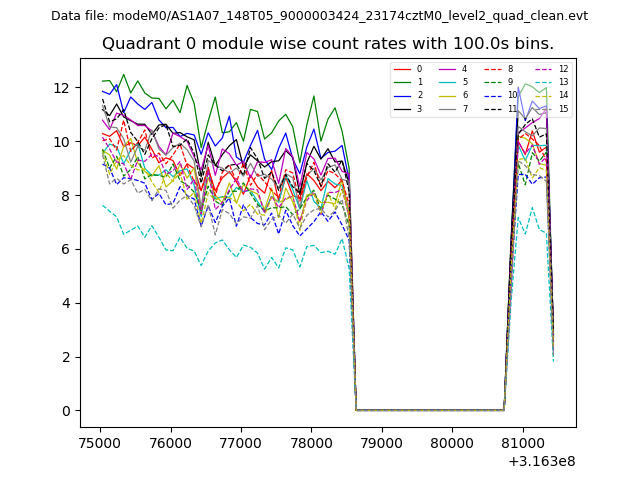

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

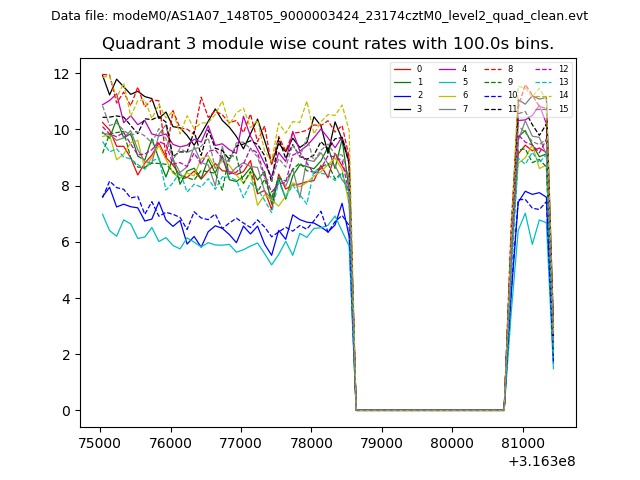

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

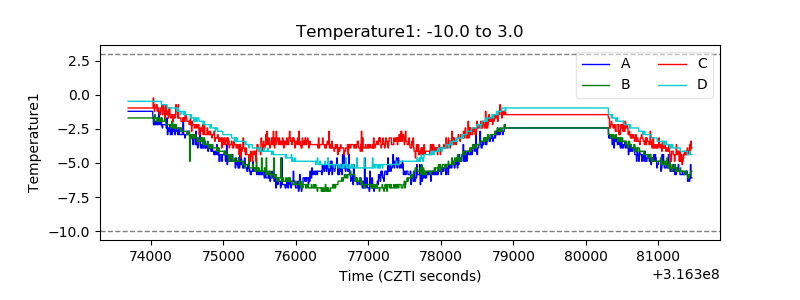

| Temperature 1 |  |

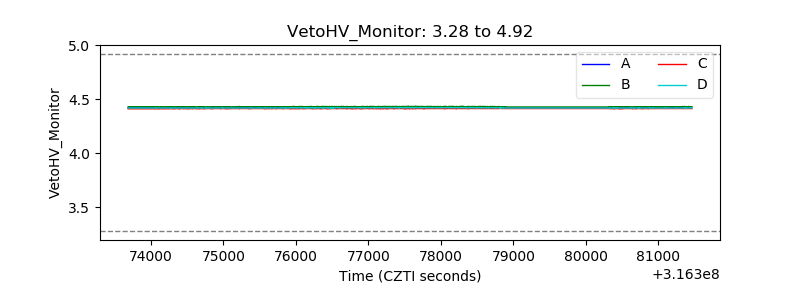

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

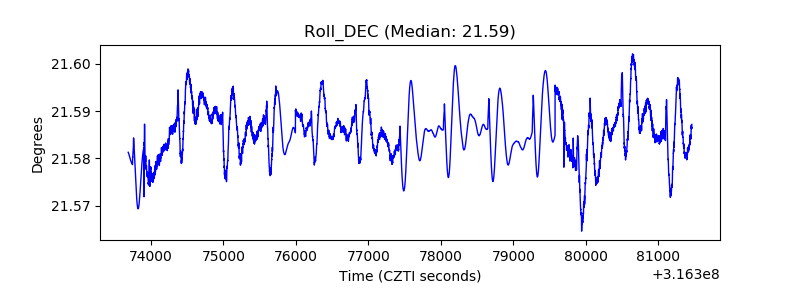

| _Roll_DEC |  |
| _Roll_RA |  |

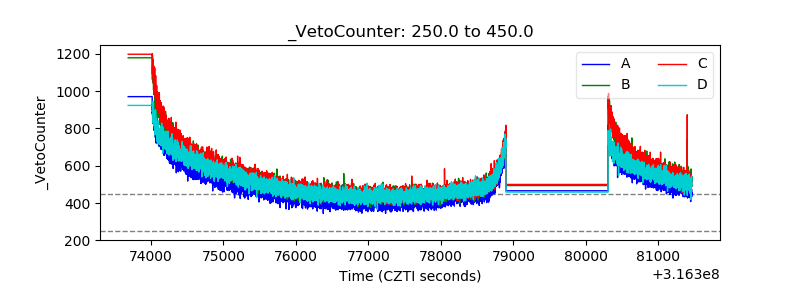

| Veto Counter |  |
