| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003424_23175cztM0_level2.evt | modeM0/AS1A07_148T05_9000003424_23175cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,225,600 | 92,327,040 |
| Size | 458.0 MB | 88.0 MB |
| Events in quadrant A | 4,453,238 | 584,226 |
| Events in quadrant B | 3,040,916 | 628,700 |
| Events in quadrant C | 3,395,353 | 601,539 |
| Events in quadrant D | 3,264,019 | 579,760 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 121 | 3 |
| B | 0 | 123 | 5 |
| C | 0 | 122 | 4 |
| D | 0 | 122 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17781 | 669 |
| B | 0 | 13166 | 531 |
| C | 0 | 14259 | 550 |
| D | 0 | 14227 | 650 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5747 | 437 | 7.603967% |
| B | 5748 | 79 | 1.374391% |
| C | 5739 | 276 | 4.809200% |
| D | 5736 | 68 | 1.185495% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7421 | 5779 | 317 | 317 | 4.27% | 5.49% |  |
| B | 7421 | 5786 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7421 | 5771 | 93 | 93 | 1.25% | 1.61% |  |
| D | 7421 | 5768 | 31 | 31 | 0.42% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 1585083 | 10624.34 | 744 | 728 | 149.1 |
| A | 13 | 254 | 8622 | 52.94 | 744 | 728 | 149.1 |
| A | 0 | 226 | 6423 | 38.19 | 744 | 728 | 149.1 |
| B | 0 | 190 | 25746 | 171.55 | 770 | 752 | 145.7 |
| B | 12 | 111 | 17140 | 112.48 | 770 | 752 | 145.7 |
| B | 11 | 111 | 15049 | 98.13 | 770 | 752 | 145.7 |
| C | 0 | 10 | 208871 | 1235.3 | 732 | 739 | 168.5 |
| C | 8 | 208 | 188679 | 1115.46 | 732 | 739 | 168.5 |
| C | 14 | 238 | 117960 | 695.73 | 732 | 739 | 168.5 |
| D | 7 | 238 | 201691 | 1118.87 | 744 | 726 | 179.6 |
| D | 1 | 52 | 148039 | 820.16 | 744 | 726 | 179.6 |
| D | 1 | 239 | 45621 | 249.95 | 744 | 726 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

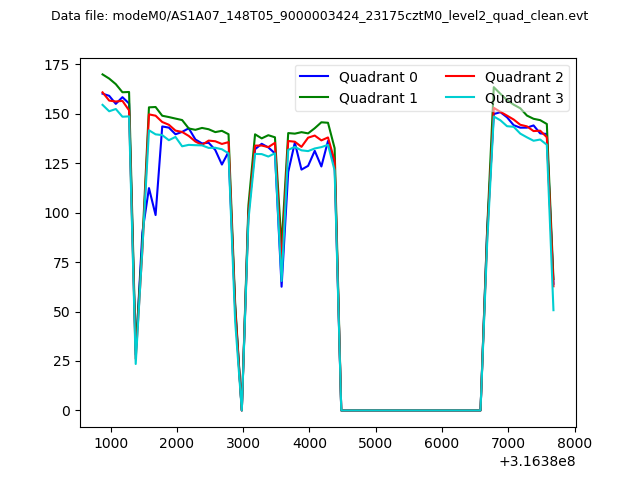

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

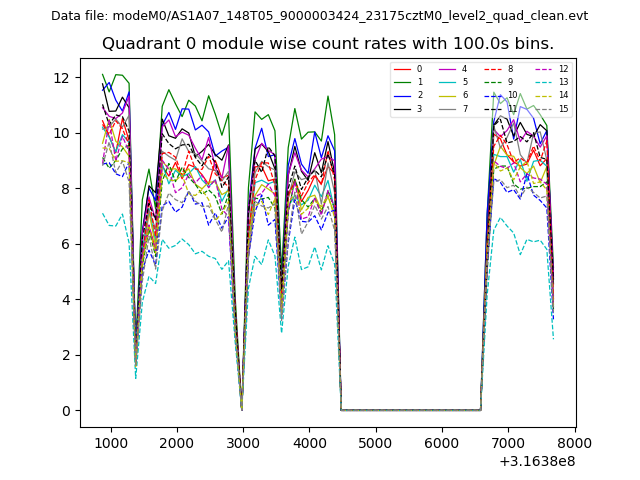

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

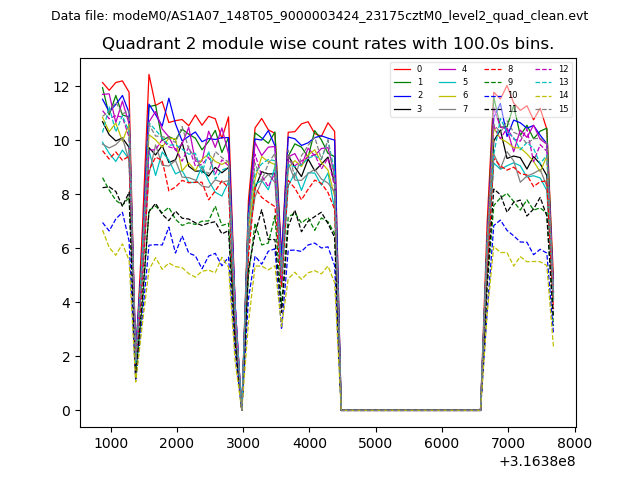

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

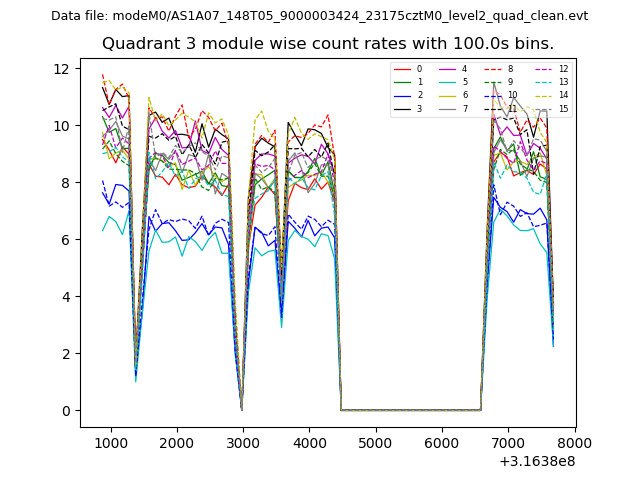

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

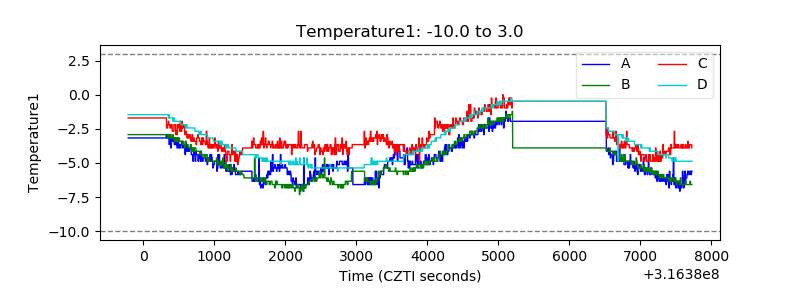

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

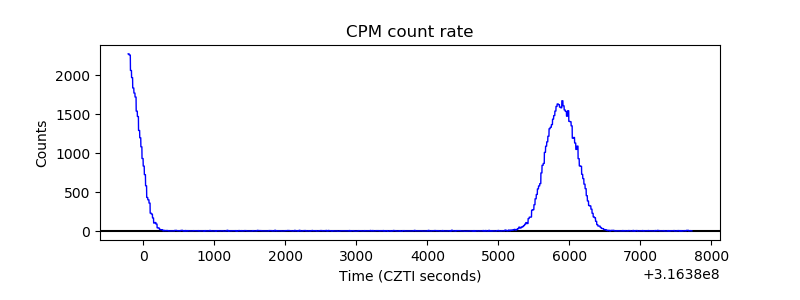

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

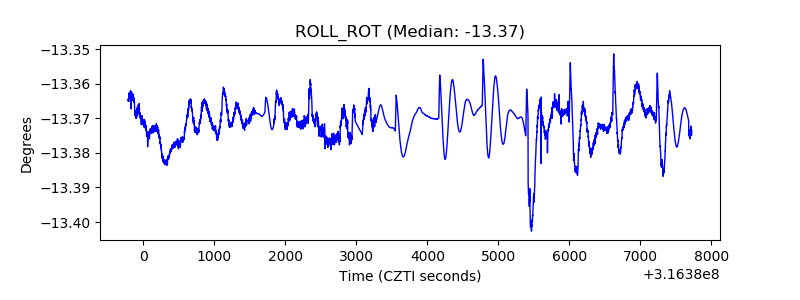

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
