| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_175T01_9000003428_23198cztM0_level2.evt | modeM0/AS1T03_175T01_9000003428_23198cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,413,440 | 86,572,800 |
| Size | 422.9 MB | 82.6 MB |
| Events in quadrant A | 3,134,322 | 547,884 |
| Events in quadrant B | 3,207,387 | 557,247 |
| Events in quadrant C | 3,381,777 | 533,970 |
| Events in quadrant D | 3,263,548 | 529,235 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13311 | 1 |
| B | 0 | 13481 | 1 |
| C | 0 | 13948 | 1 |
| D | 0 | 13602 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6505 | 58 | 0.891622% |
| B | 6505 | 59 | 0.906995% |
| C | 6505 | 108 | 1.660261% |
| D | 6506 | 51 | 0.783892% |

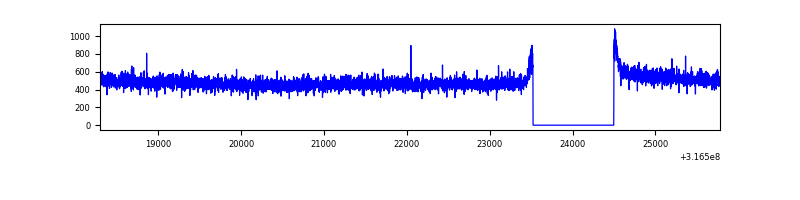

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6506 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7480 | 6506 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7480 | 6505 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7481 | 6507 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10025 | 56.59 | 811 | 795 | 163.1 |
| A | 3 | 137 | 7077 | 38.52 | 811 | 795 | 163.1 |
| A | 0 | 226 | 6990 | 37.98 | 811 | 795 | 163.1 |
| B | 0 | 190 | 48733 | 310.67 | 802 | 781 | 154.4 |
| B | 12 | 111 | 18774 | 116.57 | 802 | 781 | 154.4 |
| B | 11 | 111 | 16944 | 104.72 | 802 | 781 | 154.4 |
| C | 14 | 238 | 123192 | 677.04 | 774 | 781 | 180.8 |
| C | 7 | 247 | 121920 | 670.0 | 774 | 781 | 180.8 |
| C | 0 | 10 | 80393 | 440.32 | 774 | 781 | 180.8 |
| D | 7 | 238 | 157516 | 805.1 | 792 | 769 | 194.7 |
| D | 13 | 153 | 31588 | 158.3 | 792 | 769 | 194.7 |
| D | 1 | 52 | 26115 | 130.18 | 792 | 769 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

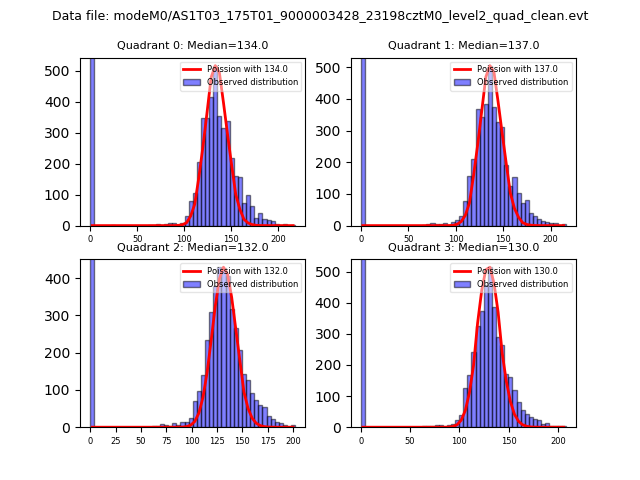

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

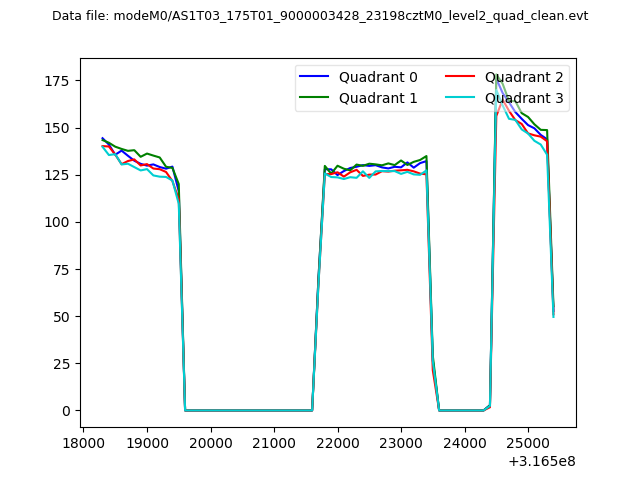

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

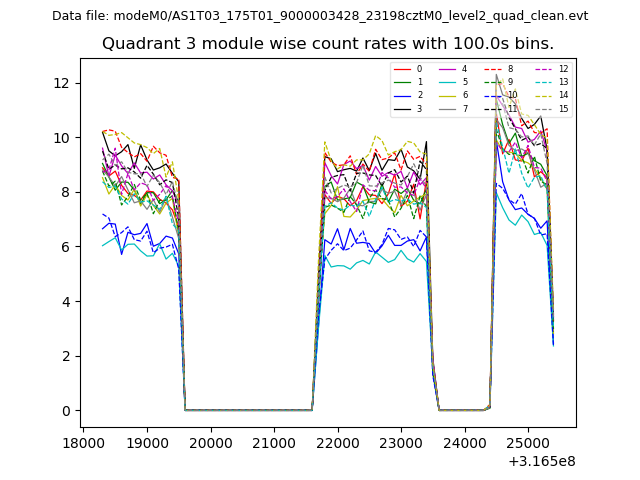

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

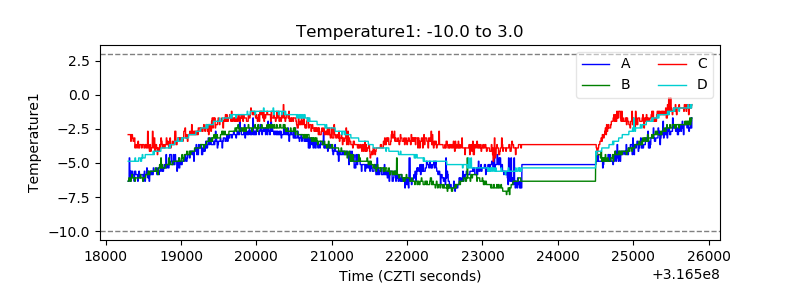

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

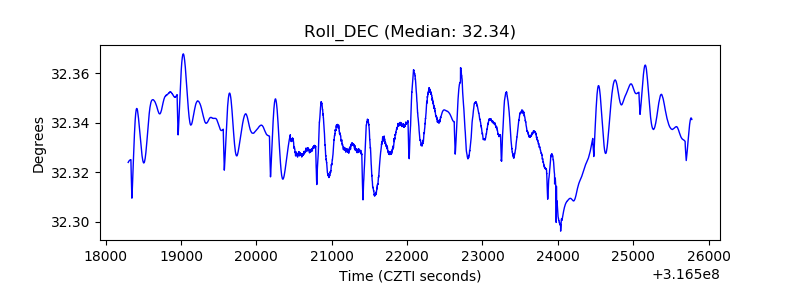

| _Roll_DEC |  |

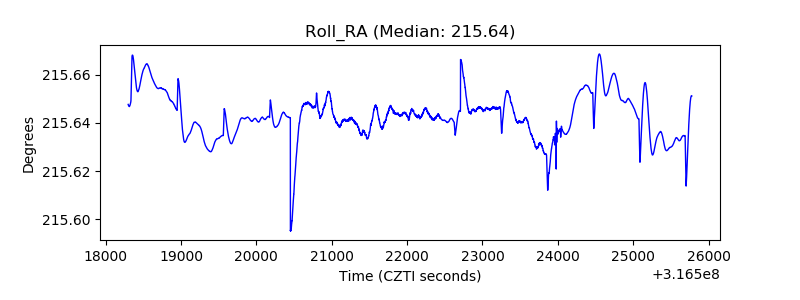

| _Roll_RA |  |

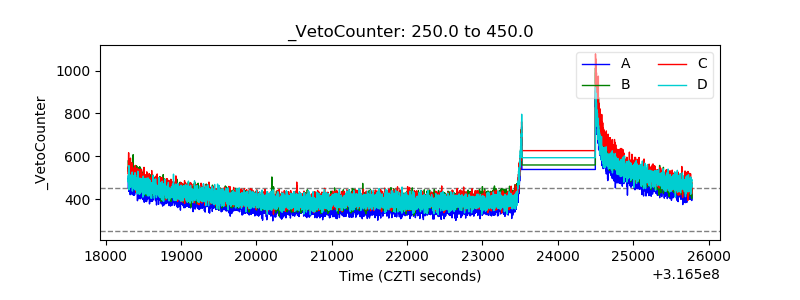

| Veto Counter |  |
