| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T02_9000003430_23215cztM0_level2.evt | modeM0/AS1A08_008T02_9000003430_23215cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,004,160 | 133,902,720 |
| Size | 478.7 MB | 127.7 MB |
| Events in quadrant A | 3,179,542 | 937,107 |
| Events in quadrant B | 3,358,833 | 948,311 |
| Events in quadrant C | 3,328,404 | 887,484 |
| Events in quadrant D | 4,905,653 | 839,700 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13652 | 1 |
| B | 0 | 14137 | 1 |
| C | 0 | 14088 | 1 |
| D | 0 | 18961 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6344 | 67 | 1.056116% |
| B | 6345 | 74 | 1.166273% |
| C | 6345 | 145 | 2.285264% |
| D | 6345 | 458 | 7.218282% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

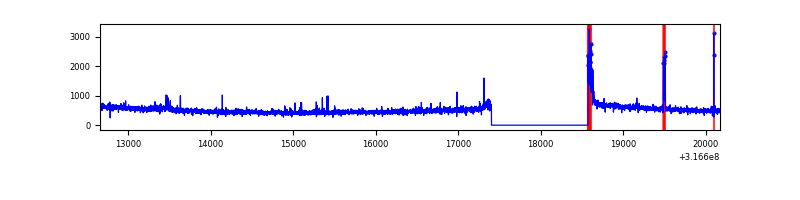

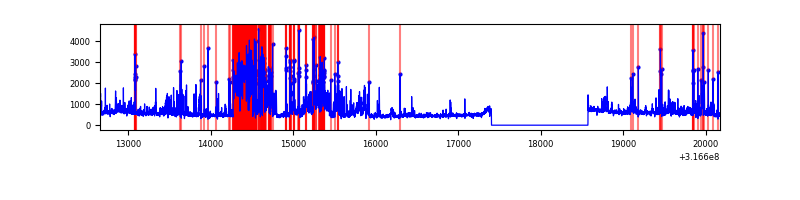

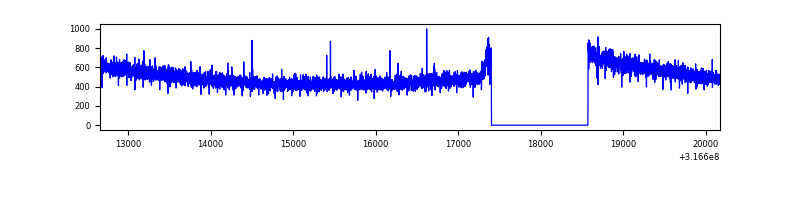

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 6344 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7515 | 6345 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7515 | 6345 | 22 | 22 | 0.29% | 0.35% |  |
| D | 7515 | 6345 | 345 | 345 | 4.59% | 5.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9969 | 55.31 | 824 | 808 | 165.6 |
| A | 0 | 226 | 7203 | 38.61 | 824 | 808 | 165.6 |
| A | 3 | 137 | 6705 | 35.6 | 824 | 808 | 165.6 |
| B | 0 | 190 | 137581 | 902.68 | 815 | 796 | 151.5 |
| B | 12 | 111 | 17108 | 107.64 | 815 | 796 | 151.5 |
| B | 11 | 111 | 15294 | 95.67 | 815 | 796 | 151.5 |
| C | 14 | 238 | 123602 | 700.76 | 770 | 774 | 175.3 |
| C | 0 | 10 | 113461 | 642.9 | 770 | 774 | 175.3 |
| C | 7 | 247 | 41297 | 231.19 | 770 | 774 | 175.3 |
| D | 13 | 153 | 1389004 | 7563.79 | 766 | 744 | 183.5 |
| D | 1 | 52 | 154381 | 837.07 | 766 | 744 | 183.5 |
| D | 2 | 152 | 149557 | 810.79 | 766 | 744 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

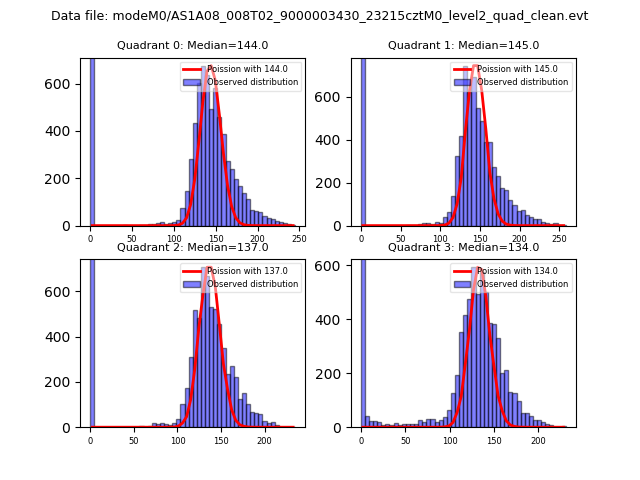

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

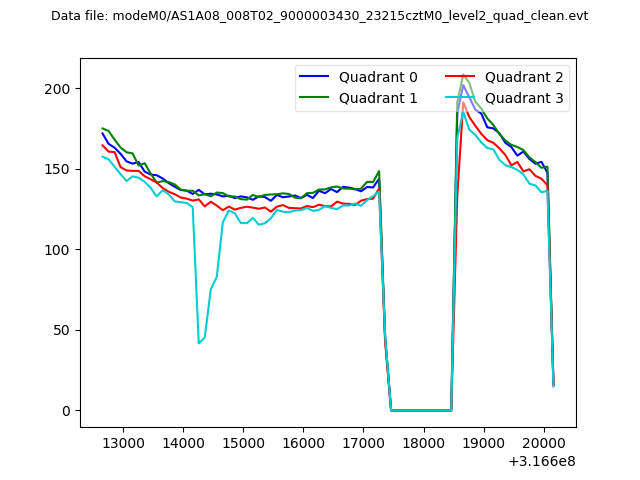

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

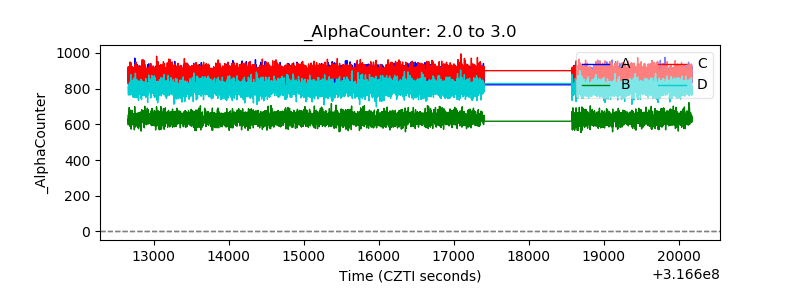

| Alpha Counter |  |
| _CPM_Rate |  |

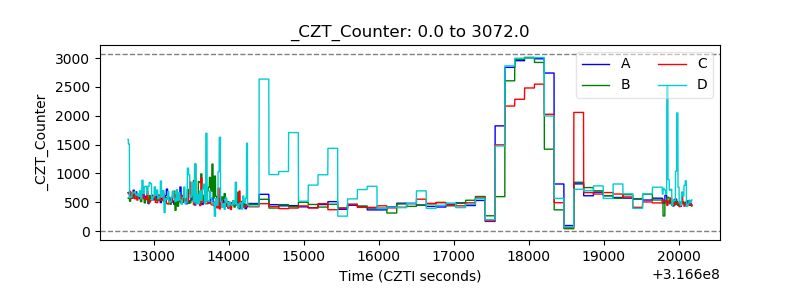

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

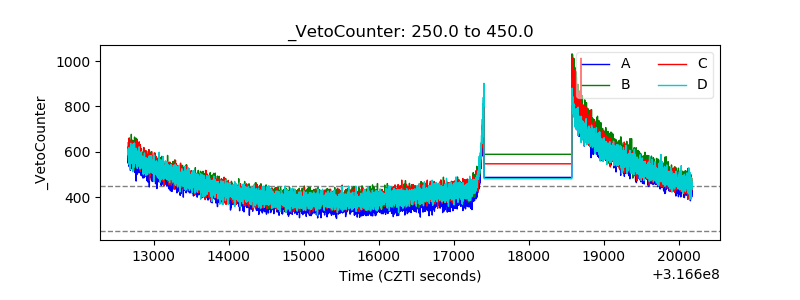

| Veto Counter |  |
