| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003434_23226cztM0_level2.evt | modeM0/AS1A08_009T01_9000003434_23226cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,466,880 | 106,657,920 |
| Size | 467.7 MB | 101.7 MB |
| Events in quadrant A | 3,291,942 | 693,790 |
| Events in quadrant B | 3,278,100 | 708,729 |
| Events in quadrant C | 3,337,825 | 675,989 |
| Events in quadrant D | 4,470,426 | 664,167 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14353 | 2 |
| B | 0 | 14223 | 2 |
| C | 0 | 14471 | 2 |
| D | 0 | 17969 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7001 | 65 | 0.928439% |
| B | 7002 | 68 | 0.971151% |
| C | 7001 | 110 | 1.571204% |
| D | 7001 | 223 | 3.185259% |

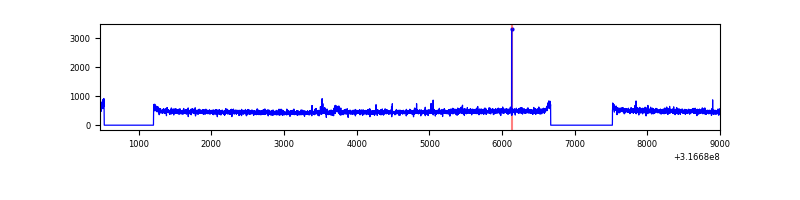

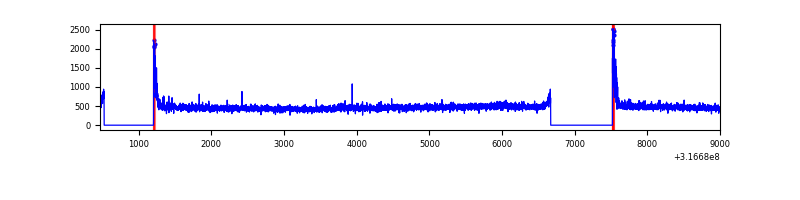

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8531 | 7001 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8532 | 7004 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8531 | 7003 | 11 | 11 | 0.13% | 0.16% |  |
| D | 8531 | 7002 | 153 | 153 | 1.79% | 2.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 68842 | 404.73 | 836 | 818 | 168.1 |
| A | 13 | 254 | 10172 | 55.65 | 836 | 818 | 168.1 |
| A | 3 | 137 | 7380 | 39.04 | 836 | 818 | 168.1 |
| B | 0 | 190 | 22642 | 138.1 | 830 | 808 | 158.1 |
| B | 12 | 111 | 19467 | 118.02 | 830 | 808 | 158.1 |
| B | 11 | 111 | 17455 | 105.29 | 830 | 808 | 158.1 |
| C | 14 | 238 | 125098 | 675.26 | 791 | 797 | 184.1 |
| C | 0 | 10 | 116692 | 629.59 | 791 | 797 | 184.1 |
| C | 7 | 247 | 7351 | 35.6 | 791 | 797 | 184.1 |
| D | 2 | 152 | 558111 | 2846.66 | 801 | 777 | 195.8 |
| D | 1 | 52 | 446073 | 2274.41 | 801 | 777 | 195.8 |
| D | 2 | 82 | 147814 | 751.01 | 801 | 777 | 195.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

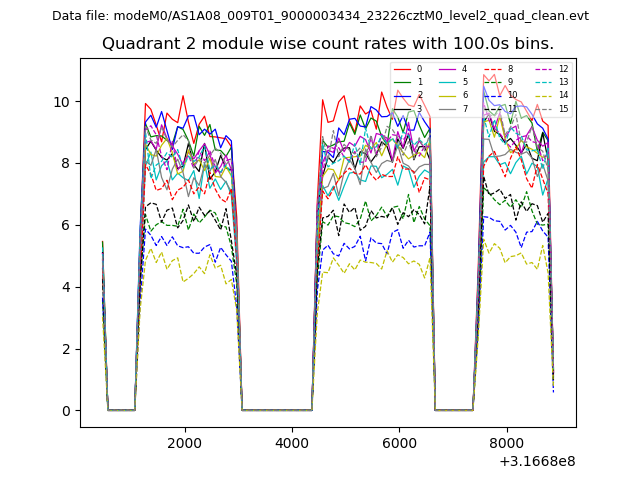

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

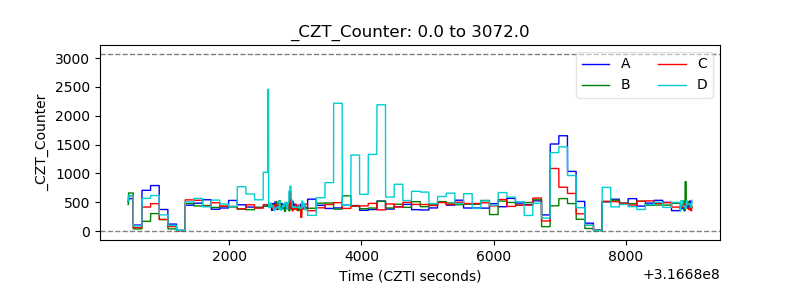

| CZT Counter |  |
| +2.5 Volts monitor |  |

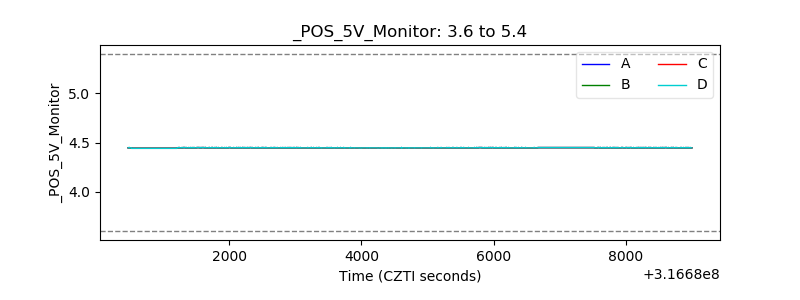

| +5 Volts monitor |  |

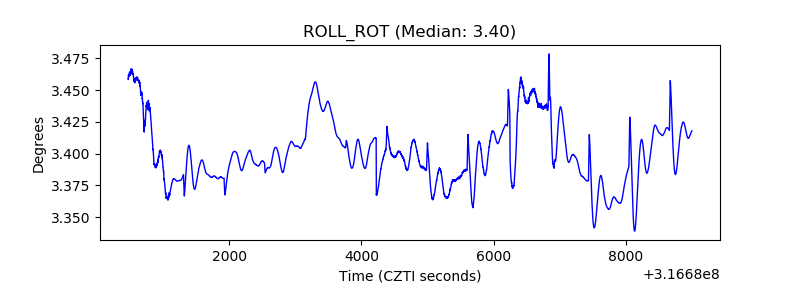

| _ROLL_ROT |  |
| _Roll_DEC |  |

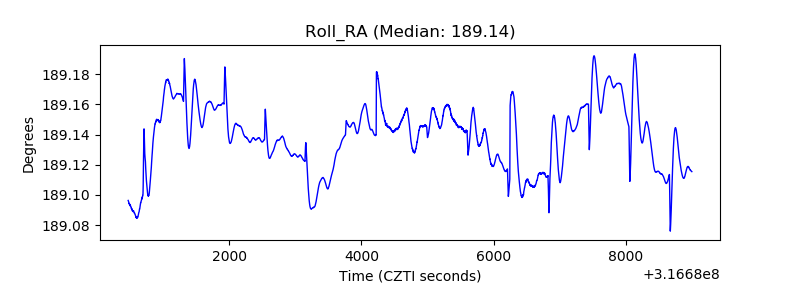

| _Roll_RA |  |
| Veto Counter |  |
