| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_009T01_9000003434_23227cztM0_level2.evt | modeM0/AS1A08_009T01_9000003434_23227cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,173,760 | 98,642,880 |
| Size | 457.9 MB | 94.1 MB |
| Events in quadrant A | 3,364,296 | 640,088 |
| Events in quadrant B | 3,227,101 | 650,307 |
| Events in quadrant C | 3,297,837 | 619,150 |
| Events in quadrant D | 4,196,702 | 609,721 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14343 | 2 |
| B | 0 | 13760 | 2 |
| C | 0 | 13994 | 2 |
| D | 0 | 16892 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6717 | 53 | 0.789043% |
| B | 6717 | 54 | 0.803930% |
| C | 6716 | 102 | 1.518761% |
| D | 6716 | 221 | 3.290649% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7717 | 6717 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7717 | 6717 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7716 | 6716 | 9 | 9 | 0.12% | 0.13% |  |
| D | 7716 | 6716 | 183 | 183 | 2.37% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 168531 | 1014.84 | 824 | 807 | 165.3 |
| A | 6 | 16 | 20406 | 118.59 | 824 | 807 | 165.3 |
| A | 13 | 254 | 9281 | 51.27 | 824 | 807 | 165.3 |
| B | 12 | 111 | 18720 | 115.12 | 816 | 795 | 155.7 |
| B | 0 | 190 | 16890 | 103.36 | 816 | 795 | 155.7 |
| B | 11 | 111 | 16716 | 102.25 | 816 | 795 | 155.7 |
| C | 14 | 238 | 126011 | 695.08 | 779 | 782 | 180.2 |
| C | 0 | 10 | 100768 | 554.97 | 779 | 782 | 180.2 |
| C | 7 | 247 | 23545 | 126.34 | 779 | 782 | 180.2 |
| D | 12 | 233 | 349170 | 1819.49 | 791 | 766 | 191.5 |
| D | 1 | 52 | 303535 | 1581.17 | 791 | 766 | 191.5 |
| D | 2 | 82 | 148936 | 773.8 | 791 | 766 | 191.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

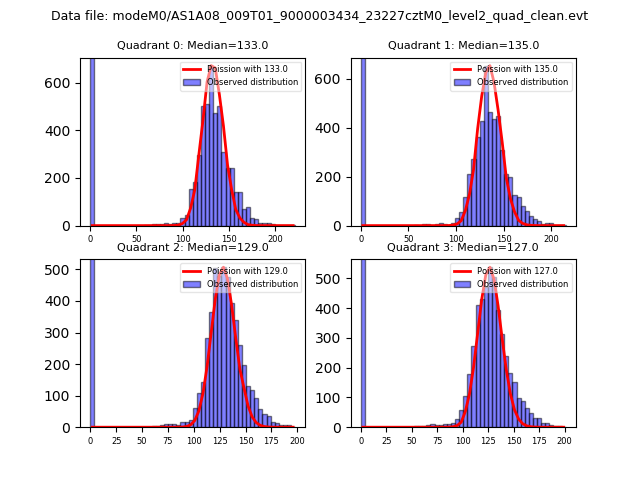

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

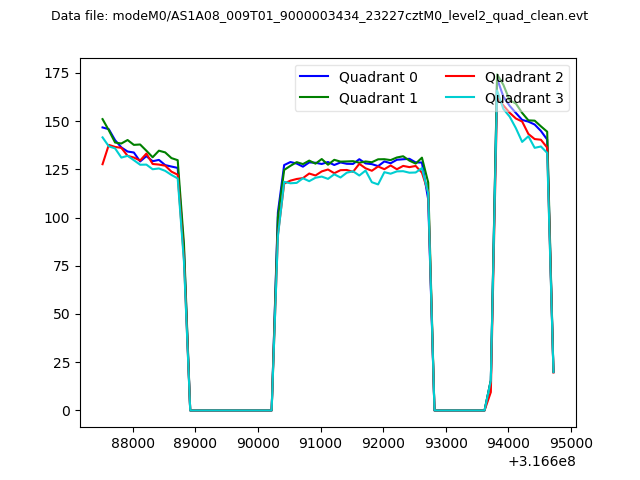

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

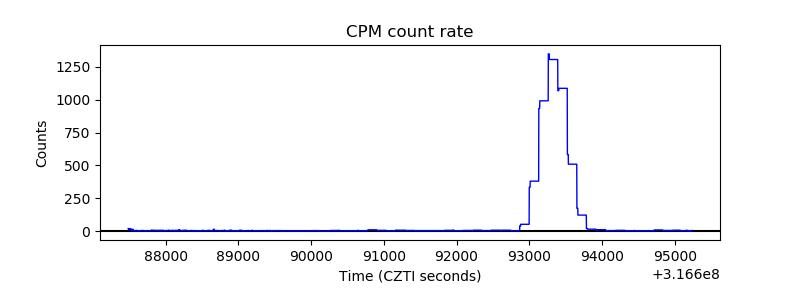

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

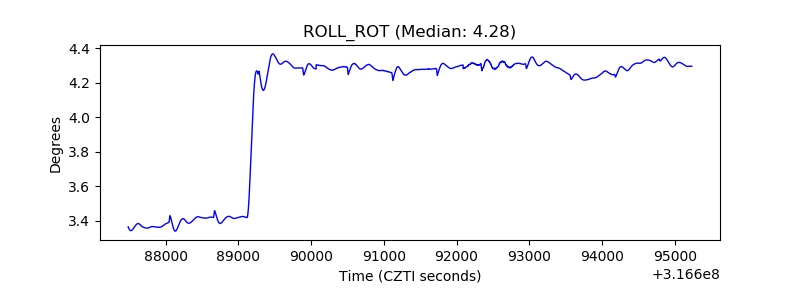

| _ROLL_ROT |  |

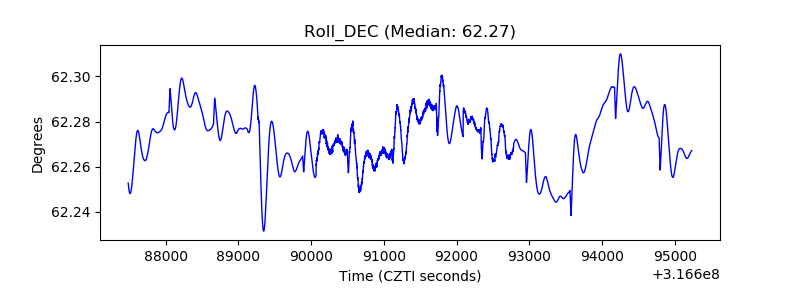

| _Roll_DEC |  |
| _Roll_RA |  |

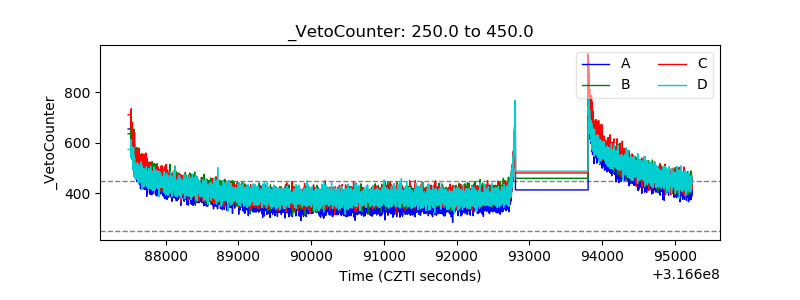

| Veto Counter |  |
