| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T02_9000003436_23240cztM0_level2.evt | modeM0/AS1A08_004T02_9000003436_23240cztM0_level2_quad_clean.evt |
| Size (bytes) | 301,849,920 | 77,322,240 |
| Size | 287.9 MB | 73.7 MB |
| Events in quadrant A | 2,076,177 | 519,834 |
| Events in quadrant B | 2,007,140 | 529,469 |
| Events in quadrant C | 2,210,970 | 506,929 |
| Events in quadrant D | 2,564,117 | 493,010 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8831 | 1 |
| B | 0 | 8620 | 1 |
| C | 0 | 9175 | 1 |
| D | 0 | 10352 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4152 | 50 | 1.204239% |
| B | 4152 | 89 | 2.143545% |
| C | 4152 | 101 | 2.432563% |
| D | 4152 | 129 | 3.106936% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4617 | 4152 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4617 | 4152 | 10 | 10 | 0.22% | 0.24% |  |
| C | 4617 | 4152 | 7 | 7 | 0.15% | 0.17% |  |
| D | 4617 | 4152 | 79 | 79 | 1.71% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 137210 | 1324.86 | 500 | 488 | 103.2 |
| A | 13 | 254 | 6752 | 60.7 | 500 | 488 | 103.2 |
| A | 6 | 16 | 6110 | 54.48 | 500 | 488 | 103.2 |
| B | 0 | 228 | 23684 | 239.35 | 499 | 486 | 96.9 |
| B | 5 | 172 | 16929 | 169.65 | 499 | 486 | 96.9 |
| B | 12 | 111 | 11760 | 116.32 | 499 | 486 | 96.9 |
| C | 8 | 208 | 199633 | 1768.45 | 475 | 477 | 112.6 |
| C | 14 | 238 | 75122 | 662.83 | 475 | 477 | 112.6 |
| C | 0 | 10 | 33269 | 291.18 | 475 | 477 | 112.6 |
| D | 12 | 233 | 244650 | 2087.5 | 481 | 465 | 117.0 |
| D | 7 | 238 | 206267 | 1759.37 | 481 | 465 | 117.0 |
| D | 1 | 52 | 179082 | 1526.97 | 481 | 465 | 117.0 |

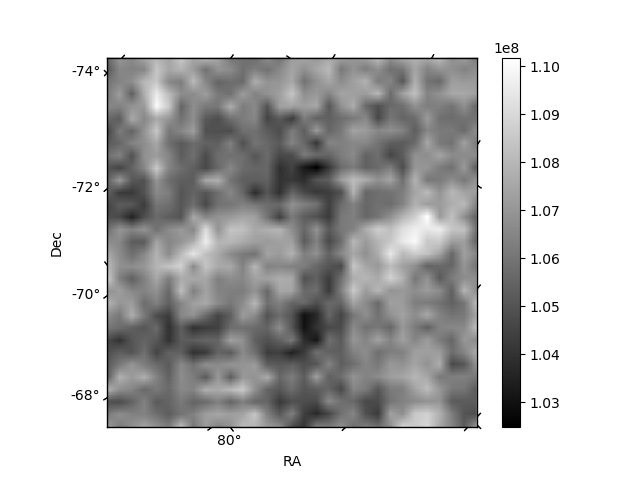

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

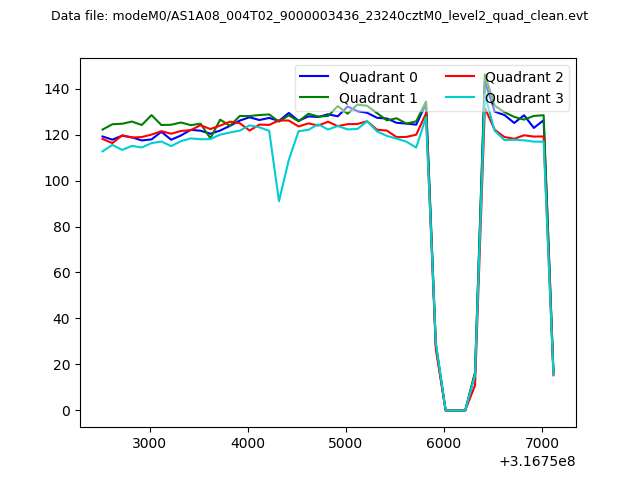

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

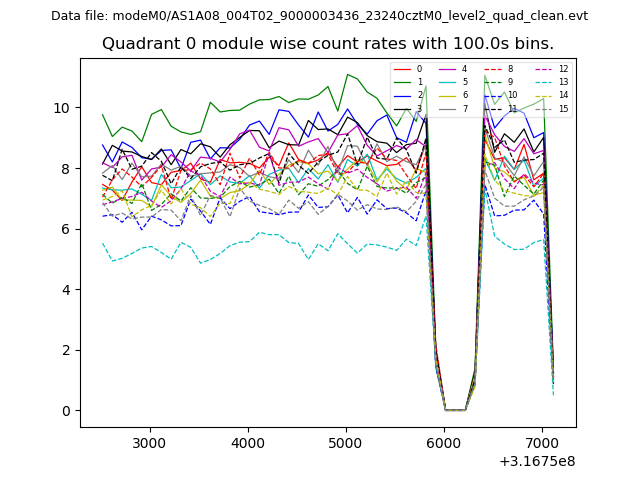

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

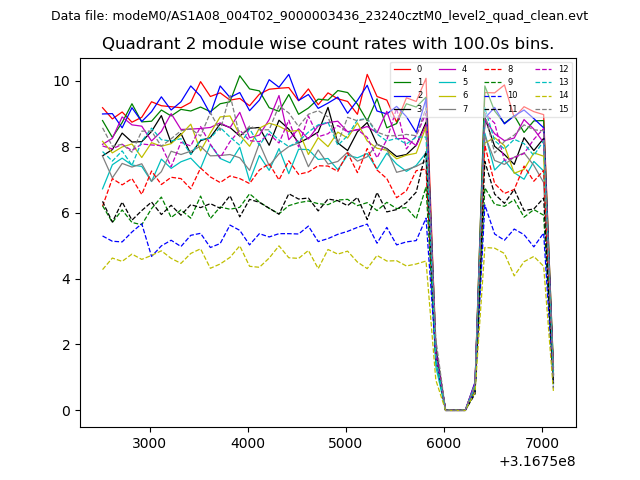

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

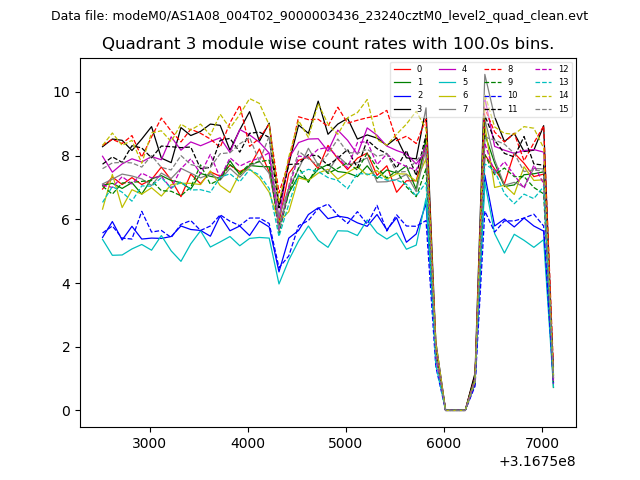

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

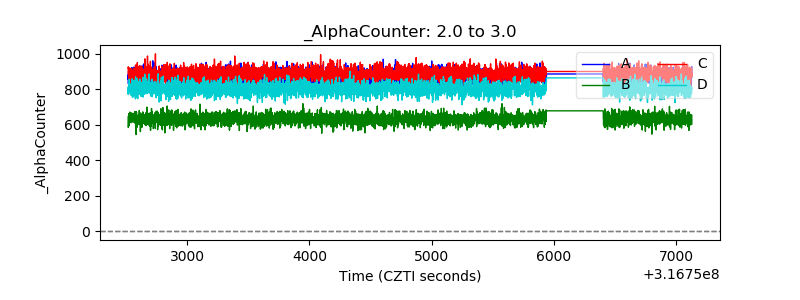

| Alpha Counter |  |

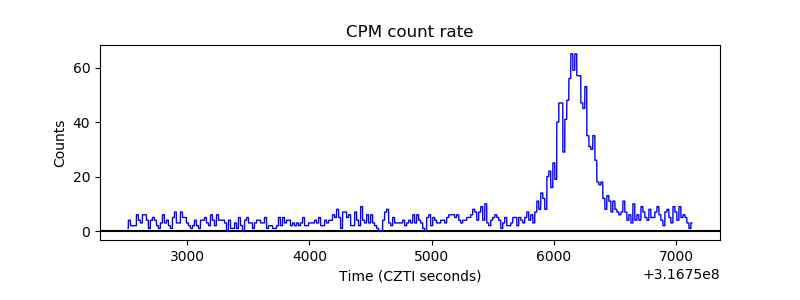

| _CPM_Rate |  |

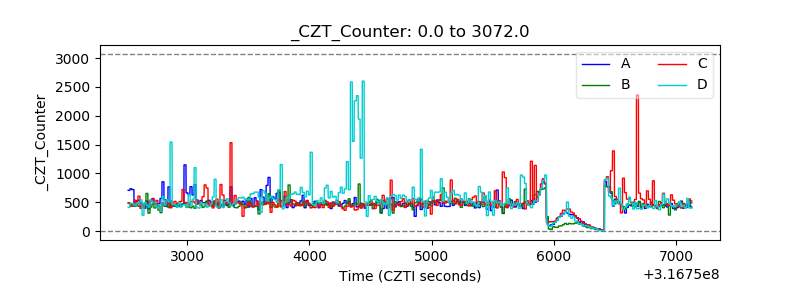

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
