| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23252cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23252cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,254,720 | 92,168,640 |
| Size | 547.7 MB | 87.9 MB |
| Events in quadrant A | 3,884,395 | 566,385 |
| Events in quadrant B | 3,973,755 | 572,511 |
| Events in quadrant C | 4,078,053 | 548,887 |
| Events in quadrant D | 4,900,273 | 534,867 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16865 | 2 |
| B | 0 | 16952 | 2 |
| C | 0 | 17278 | 3 |
| D | 0 | 20190 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8183 | 96 | 1.173164% |
| B | 8184 | 133 | 1.625122% |
| C | 8183 | 147 | 1.796407% |
| D | 8183 | 259 | 3.165098% |

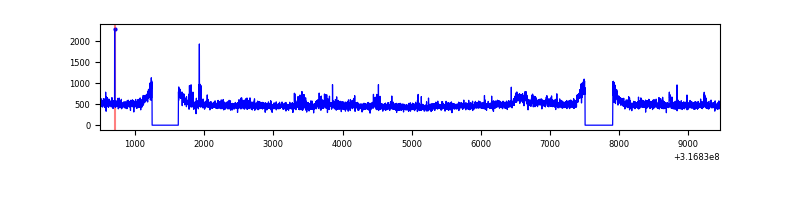

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8963 | 8184 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8964 | 8185 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8963 | 8185 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8963 | 8184 | 139 | 139 | 1.55% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11747 | 52.72 | 1005 | 982 | 204.2 |
| A | 3 | 137 | 9157 | 40.04 | 1005 | 982 | 204.2 |
| A | 0 | 226 | 8547 | 37.05 | 1005 | 982 | 204.2 |
| B | 12 | 111 | 24215 | 119.27 | 1003 | 977 | 194.8 |
| B | 11 | 111 | 21393 | 104.78 | 1003 | 977 | 194.8 |
| B | 14 | 111 | 18757 | 91.26 | 1003 | 977 | 194.8 |
| C | 14 | 238 | 150431 | 651.65 | 971 | 979 | 229.3 |
| C | 8 | 208 | 60975 | 261.6 | 971 | 979 | 229.3 |
| C | 10 | 9 | 38458 | 163.42 | 971 | 979 | 229.3 |
| D | 1 | 52 | 1118486 | 4706.51 | 974 | 950 | 237.4 |
| D | 2 | 152 | 64198 | 266.37 | 974 | 950 | 237.4 |
| D | 2 | 234 | 31608 | 129.12 | 974 | 950 | 237.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

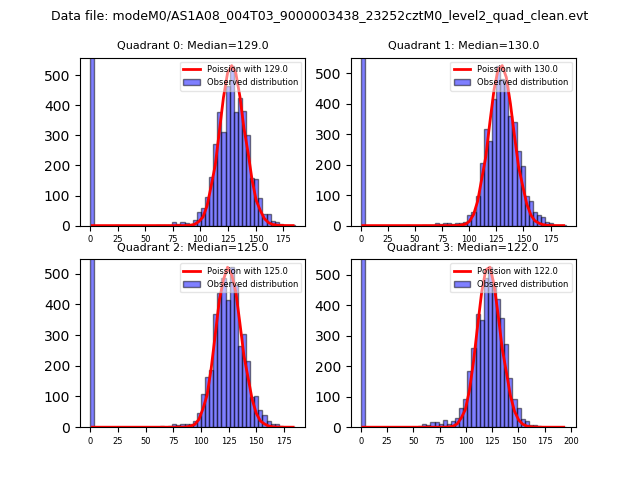

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

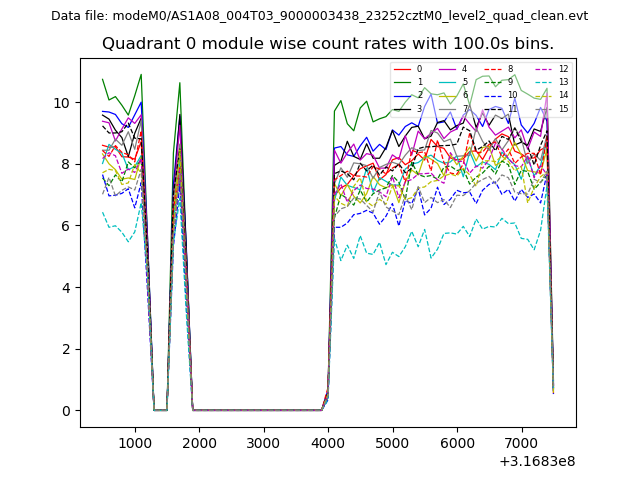

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

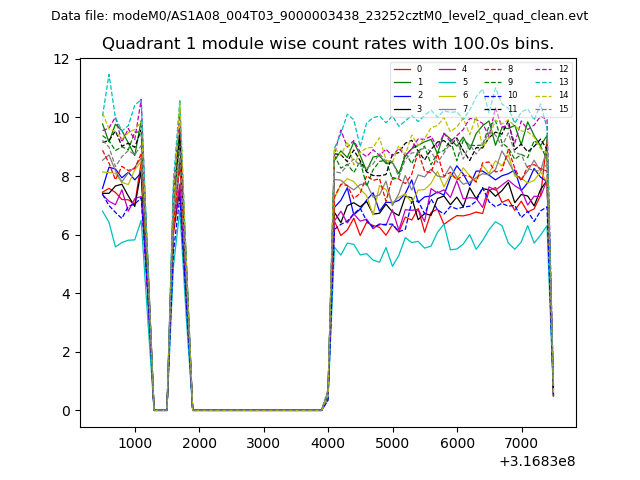

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

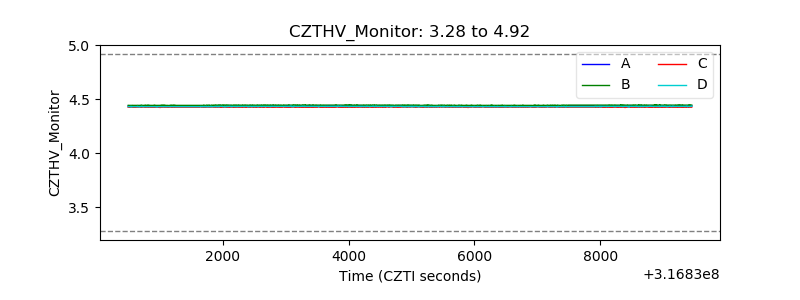

| CZT HV Monitor |  |
| D_VDD |  |

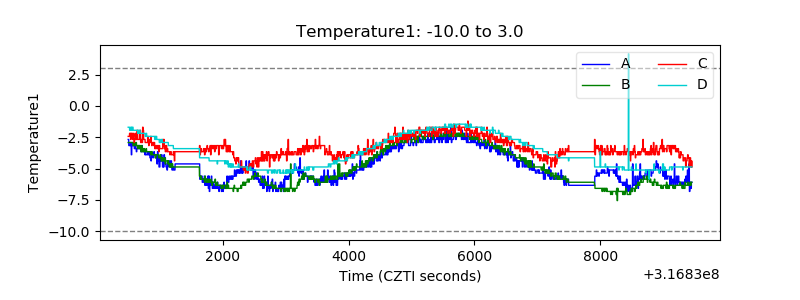

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

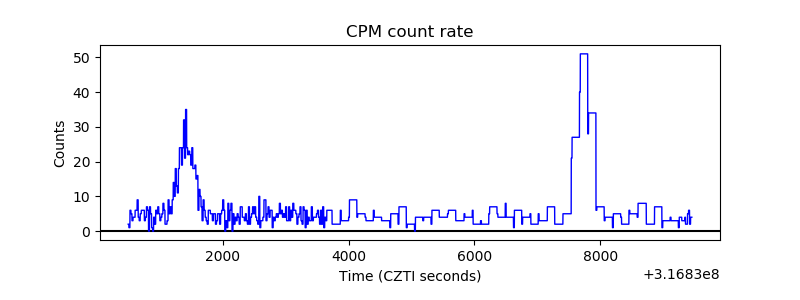

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

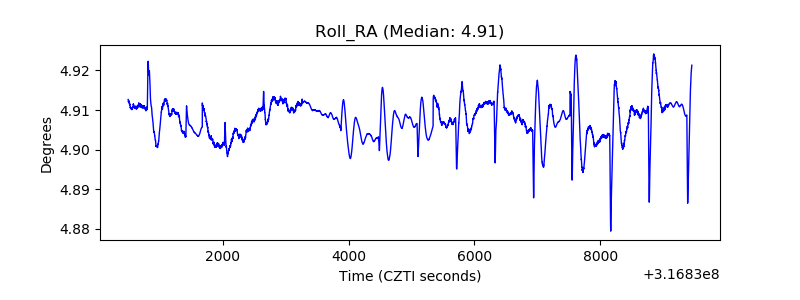

| _Roll_RA |  |
| Veto Counter |  |
