| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23255cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23255cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,682,880 | 87,033,600 |
| Size | 433.6 MB | 83.0 MB |
| Events in quadrant A | 3,056,513 | 557,720 |
| Events in quadrant B | 3,157,912 | 568,414 |
| Events in quadrant C | 3,106,244 | 539,110 |
| Events in quadrant D | 4,012,508 | 521,817 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13149 | 1 |
| B | 0 | 13398 | 1 |
| C | 0 | 13254 | 1 |
| D | 0 | 16079 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6430 | 60 | 0.933126% |
| B | 6431 | 100 | 1.554968% |
| C | 6431 | 85 | 1.321723% |
| D | 6430 | 186 | 2.892691% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

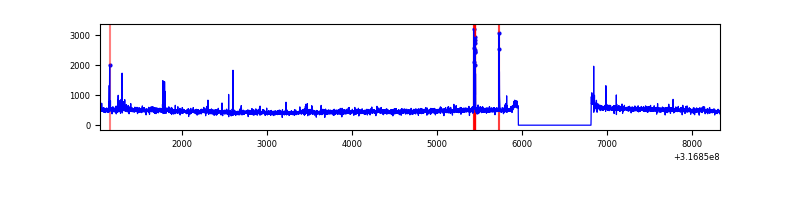

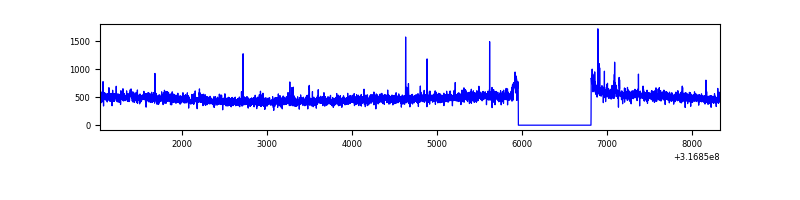

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7285 | 6430 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7286 | 6431 | 13 | 13 | 0.18% | 0.20% |  |
| C | 7286 | 6431 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7285 | 6430 | 149 | 149 | 2.05% | 2.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9386 | 53.72 | 790 | 773 | 160.3 |
| A | 3 | 137 | 7113 | 39.55 | 790 | 773 | 160.3 |
| A | 0 | 226 | 6745 | 37.25 | 790 | 773 | 160.3 |
| B | 5 | 172 | 45191 | 292.97 | 783 | 761 | 151.7 |
| B | 12 | 111 | 18484 | 116.86 | 783 | 761 | 151.7 |
| B | 11 | 111 | 16470 | 103.58 | 783 | 761 | 151.7 |
| C | 14 | 238 | 118678 | 668.04 | 749 | 754 | 176.5 |
| C | 0 | 207 | 26892 | 148.07 | 749 | 754 | 176.5 |
| C | 7 | 247 | 17407 | 94.34 | 749 | 754 | 176.5 |
| D | 1 | 52 | 850556 | 4591.82 | 756 | 734 | 185.1 |
| D | 12 | 233 | 159696 | 858.92 | 756 | 734 | 185.1 |
| D | 2 | 152 | 65917 | 352.2 | 756 | 734 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

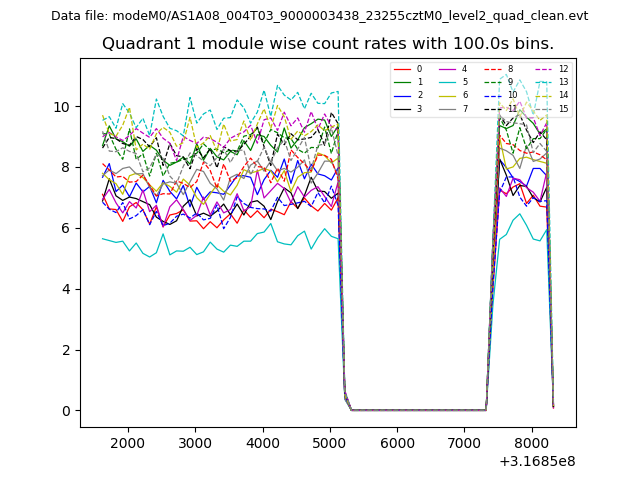

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

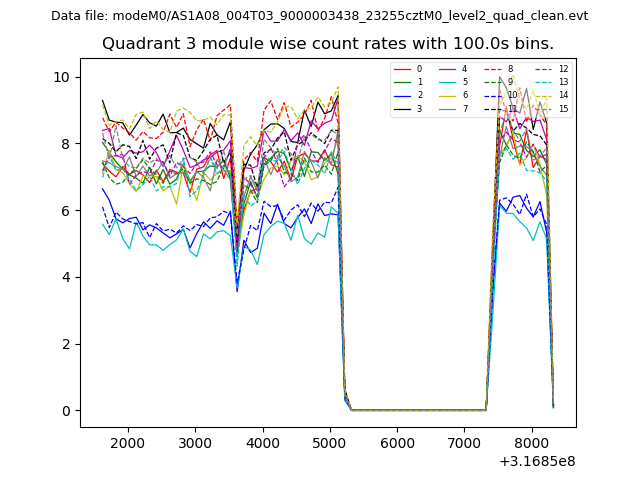

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

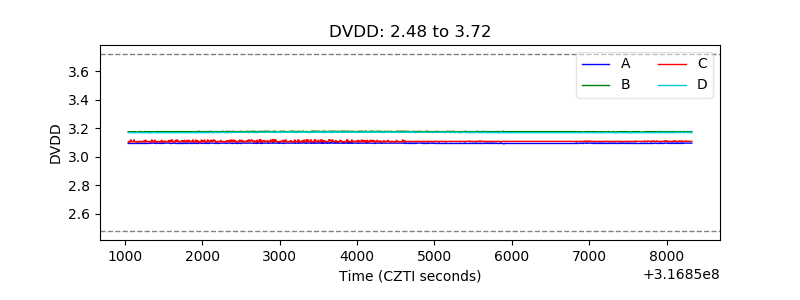

| D_VDD |  |

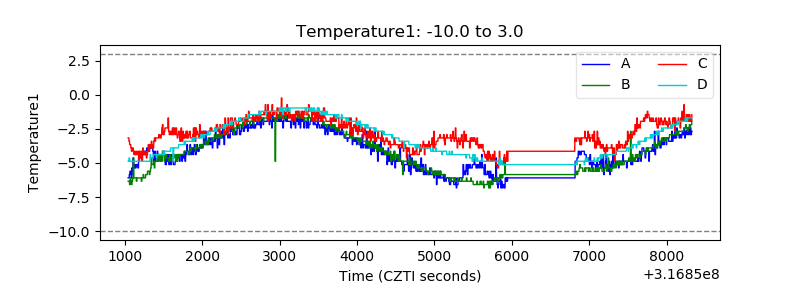

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

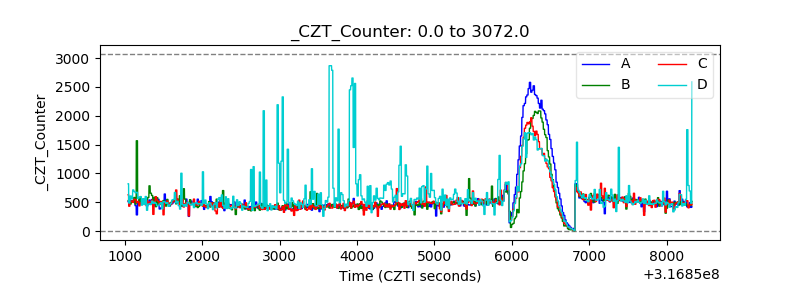

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

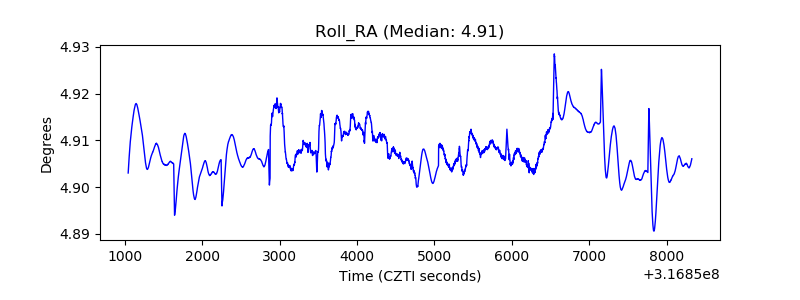

| _Roll_RA |  |
| Veto Counter |  |
