| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23262cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23262cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,730,880 | 93,179,520 |
| Size | 439.4 MB | 88.9 MB |
| Events in quadrant A | 3,156,056 | 606,623 |
| Events in quadrant B | 3,268,680 | 621,895 |
| Events in quadrant C | 3,266,462 | 583,845 |
| Events in quadrant D | 3,830,702 | 566,481 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13321 | 2 |
| B | 0 | 13514 | 3 |
| C | 0 | 13501 | 2 |
| D | 0 | 15629 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6347 | 71 | 1.118639% |
| B | 6346 | 89 | 1.402458% |
| C | 6346 | 107 | 1.686101% |
| D | 6346 | 153 | 2.410968% |

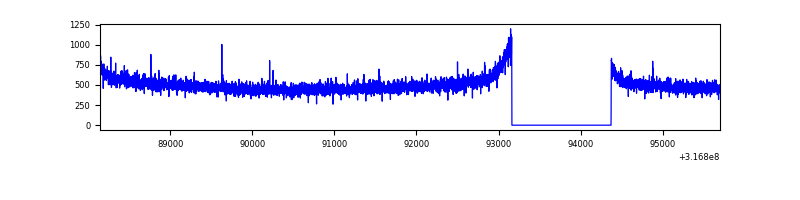

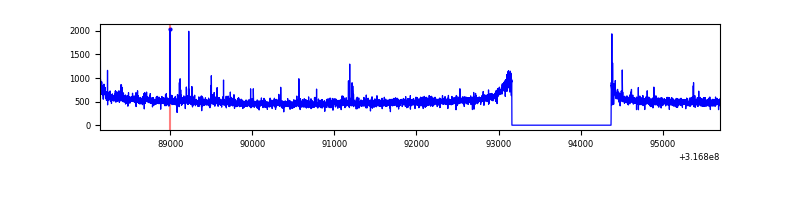

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6348 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7556 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7556 | 6347 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7556 | 6346 | 84 | 84 | 1.11% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10977 | 61.82 | 818 | 801 | 164.6 |
| A | 0 | 226 | 7063 | 38.04 | 818 | 801 | 164.6 |
| A | 3 | 137 | 6904 | 37.08 | 818 | 801 | 164.6 |
| B | 3 | 64 | 18800 | 116.95 | 820 | 802 | 153.9 |
| B | 12 | 111 | 17733 | 110.01 | 820 | 802 | 153.9 |
| B | 11 | 111 | 15833 | 97.67 | 820 | 802 | 153.9 |
| C | 14 | 238 | 125132 | 680.4 | 787 | 793 | 182.7 |
| C | 2 | 16 | 27751 | 147.52 | 787 | 793 | 182.7 |
| C | 0 | 207 | 20111 | 105.71 | 787 | 793 | 182.7 |
| D | 7 | 238 | 208406 | 1076.7 | 795 | 775 | 192.8 |
| D | 1 | 239 | 141995 | 732.32 | 795 | 775 | 192.8 |
| D | 2 | 120 | 131815 | 679.53 | 795 | 775 | 192.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

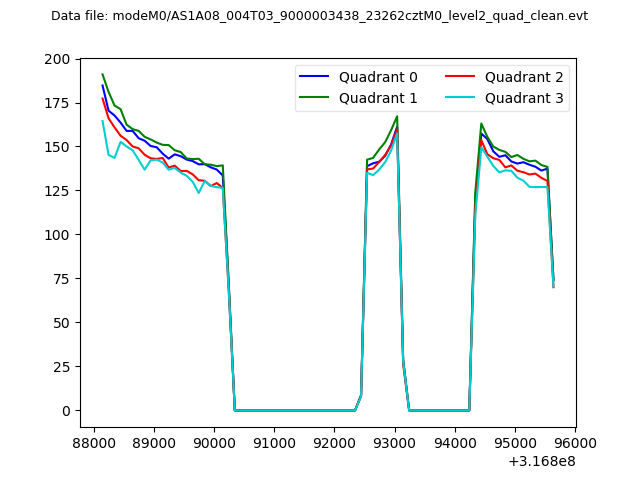

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

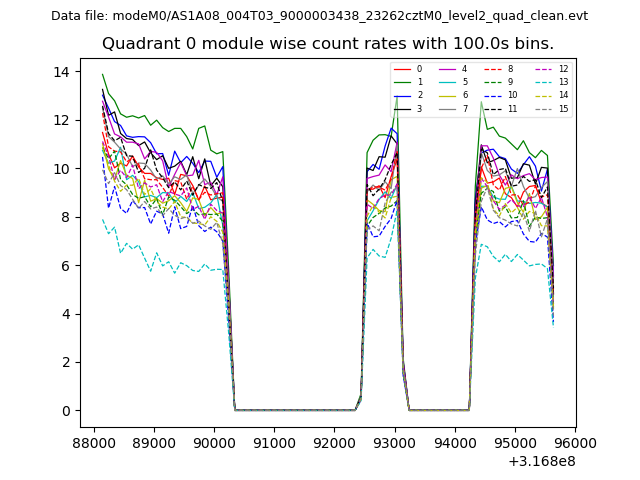

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

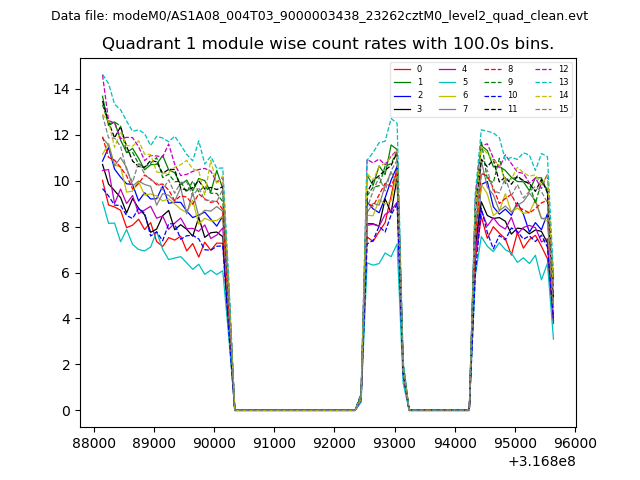

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

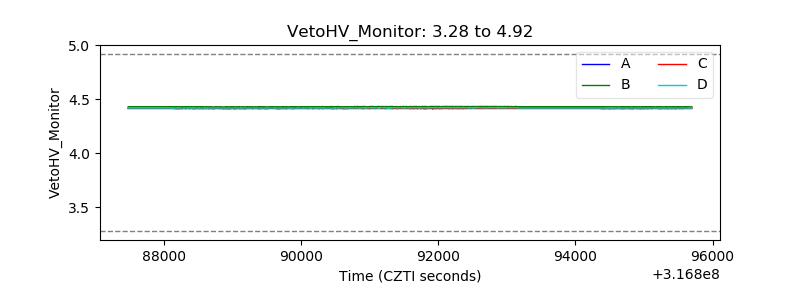

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

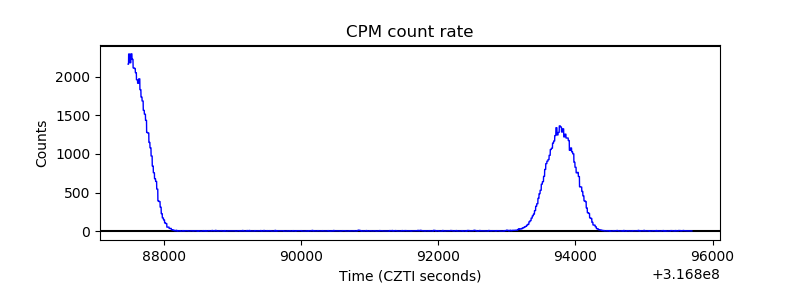

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

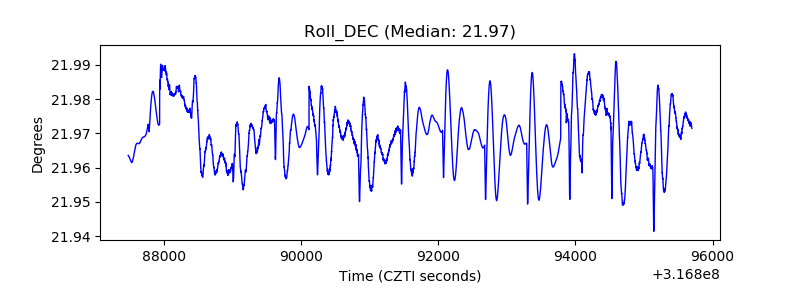

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
