| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23263cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23263cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,431,680 | 92,036,160 |
| Size | 434.3 MB | 87.8 MB |
| Events in quadrant A | 3,110,853 | 592,849 |
| Events in quadrant B | 3,239,524 | 605,437 |
| Events in quadrant C | 3,265,943 | 572,840 |
| Events in quadrant D | 3,732,012 | 559,866 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13410 | 2 |
| B | 0 | 13606 | 2 |
| C | 0 | 13688 | 2 |
| D | 0 | 15486 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6536 | 10 | 0.152999% |
| B | 6536 | 27 | 0.413097% |
| C | 6536 | 73 | 1.116891% |
| D | 6536 | 37 | 0.566095% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6537 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7566 | 6537 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7566 | 6537 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7566 | 6537 | 17 | 17 | 0.22% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10472 | 59.9 | 807 | 792 | 161.6 |
| A | 3 | 137 | 6920 | 37.92 | 807 | 792 | 161.6 |
| A | 0 | 226 | 6888 | 37.72 | 807 | 792 | 161.6 |
| B | 0 | 230 | 23724 | 150.21 | 808 | 788 | 152.7 |
| B | 10 | 247 | 21143 | 133.31 | 808 | 788 | 152.7 |
| B | 12 | 111 | 18374 | 115.17 | 808 | 788 | 152.7 |
| C | 14 | 238 | 123298 | 672.96 | 778 | 783 | 182.1 |
| C | 0 | 207 | 58879 | 319.11 | 778 | 783 | 182.1 |
| C | 2 | 16 | 42298 | 228.04 | 778 | 783 | 182.1 |
| D | 7 | 238 | 366063 | 1909.91 | 788 | 766 | 191.3 |
| D | 1 | 239 | 184664 | 961.49 | 788 | 766 | 191.3 |
| D | 2 | 152 | 78425 | 406.03 | 788 | 766 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

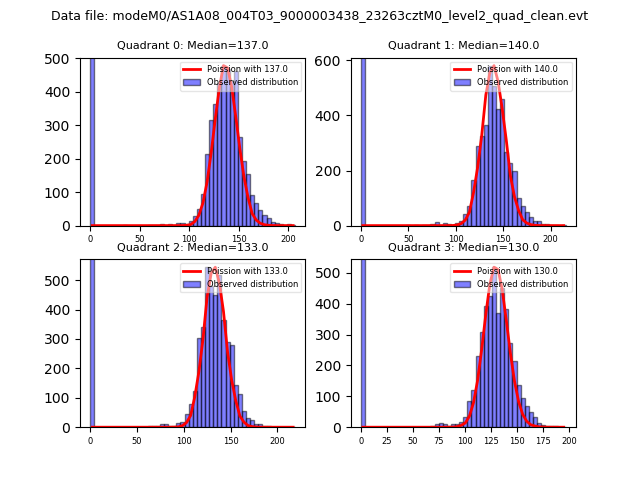

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
