| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23265cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23265cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,531,840 | 87,485,760 |
| Size | 486.9 MB | 83.4 MB |
| Events in quadrant A | 3,469,057 | 542,594 |
| Events in quadrant B | 3,554,960 | 550,399 |
| Events in quadrant C | 3,553,663 | 525,000 |
| Events in quadrant D | 4,377,725 | 512,568 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15240 | 1 |
| B | 0 | 15332 | 1 |
| C | 0 | 15302 | 1 |
| D | 0 | 18001 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7456 | 22 | 0.295064% |
| B | 7456 | 47 | 0.630365% |
| C | 7456 | 52 | 0.697425% |
| D | 7456 | 112 | 1.502146% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7841 | 7457 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7841 | 7457 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7841 | 7457 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7841 | 7457 | 87 | 87 | 1.11% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11206 | 56.53 | 898 | 879 | 182.7 |
| A | 3 | 137 | 7941 | 38.66 | 898 | 879 | 182.7 |
| A | 0 | 226 | 7583 | 36.7 | 898 | 879 | 182.7 |
| B | 12 | 111 | 21360 | 117.94 | 900 | 876 | 173.7 |
| B | 11 | 111 | 18874 | 103.62 | 900 | 876 | 173.7 |
| B | 14 | 111 | 16444 | 89.63 | 900 | 876 | 173.7 |
| C | 14 | 238 | 137064 | 660.87 | 867 | 869 | 206.1 |
| C | 0 | 207 | 26933 | 126.47 | 867 | 869 | 206.1 |
| C | 7 | 247 | 9957 | 44.1 | 867 | 869 | 206.1 |
| D | 1 | 52 | 479196 | 2236.88 | 873 | 846 | 213.8 |
| D | 7 | 238 | 433065 | 2021.16 | 873 | 846 | 213.8 |
| D | 2 | 152 | 100871 | 467.74 | 873 | 846 | 213.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

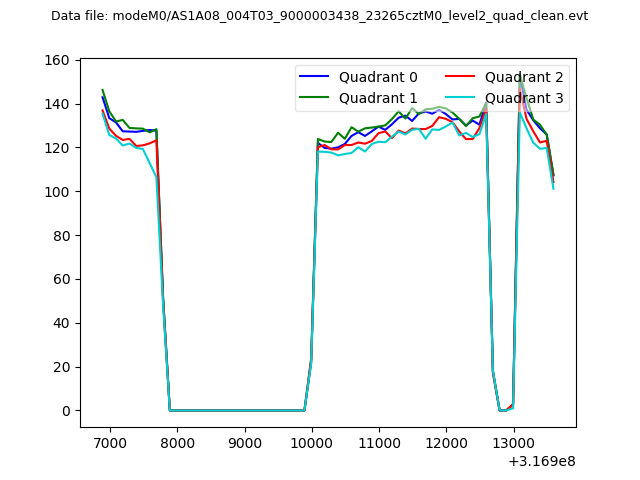

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

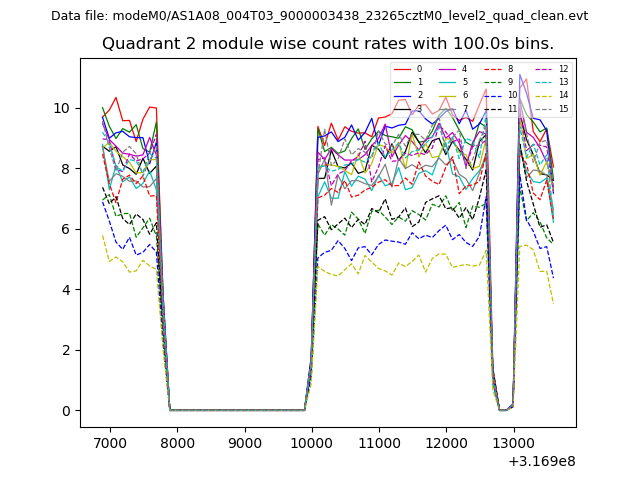

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

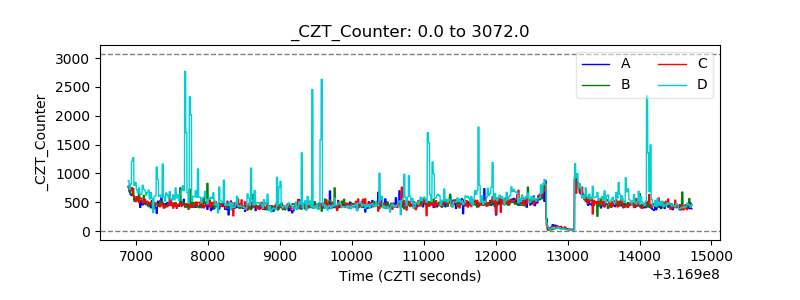

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

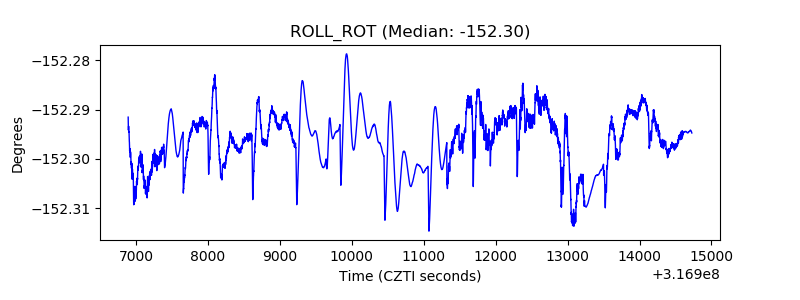

| _ROLL_ROT |  |
| _Roll_DEC |  |

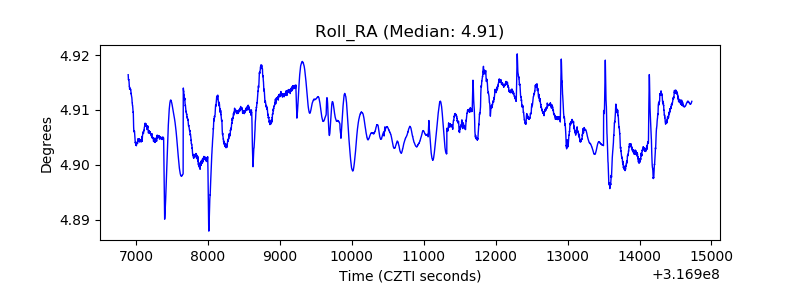

| _Roll_RA |  |
| Veto Counter |  |
