| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23266cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23266cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,031,040 | 83,030,400 |
| Size | 576.0 MB | 79.2 MB |
| Events in quadrant A | 3,627,628 | 518,369 |
| Events in quadrant B | 3,723,845 | 525,796 |
| Events in quadrant C | 3,748,676 | 504,034 |
| Events in quadrant D | 6,674,088 | 433,536 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15845 | 2 |
| B | 0 | 15952 | 2 |
| C | 0 | 15963 | 2 |
| D | 0 | 25099 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7651 | 101 | 1.320089% |
| B | 7651 | 144 | 1.882107% |
| C | 7651 | 134 | 1.751405% |
| D | 7651 | 1043 | 13.632205% |

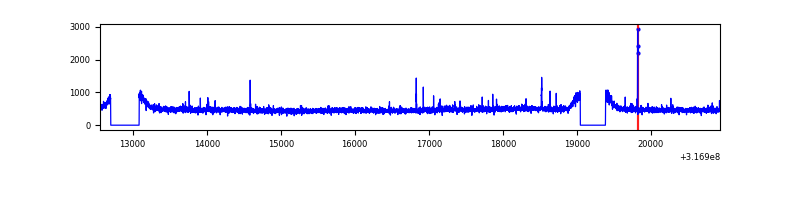

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8376 | 7653 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8376 | 7652 | 3 | 3 | 0.04% | 0.04% |  |
| C | 8376 | 7653 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8376 | 7653 | 910 | 910 | 10.86% | 11.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11672 | 56.11 | 940 | 919 | 191.6 |
| A | 3 | 137 | 8636 | 40.27 | 940 | 919 | 191.6 |
| A | 0 | 226 | 7842 | 36.12 | 940 | 919 | 191.6 |
| B | 0 | 229 | 28884 | 153.74 | 940 | 916 | 181.9 |
| B | 12 | 111 | 22555 | 118.95 | 940 | 916 | 181.9 |
| B | 11 | 111 | 20209 | 106.05 | 940 | 916 | 181.9 |
| C | 14 | 238 | 142018 | 655.72 | 909 | 914 | 215.2 |
| C | 10 | 9 | 26463 | 118.73 | 909 | 914 | 215.2 |
| C | 0 | 207 | 13949 | 60.57 | 909 | 914 | 215.2 |
| D | 1 | 52 | 2990760 | 14067.39 | 867 | 841 | 212.5 |
| D | 7 | 238 | 225147 | 1055.35 | 867 | 841 | 212.5 |
| D | 2 | 152 | 92513 | 431.31 | 867 | 841 | 212.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

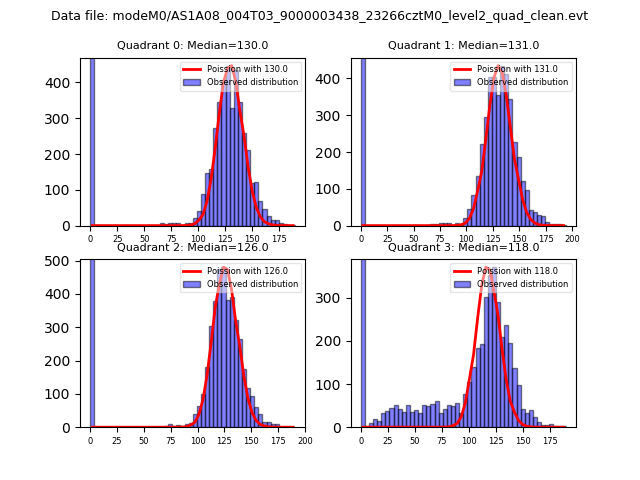

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

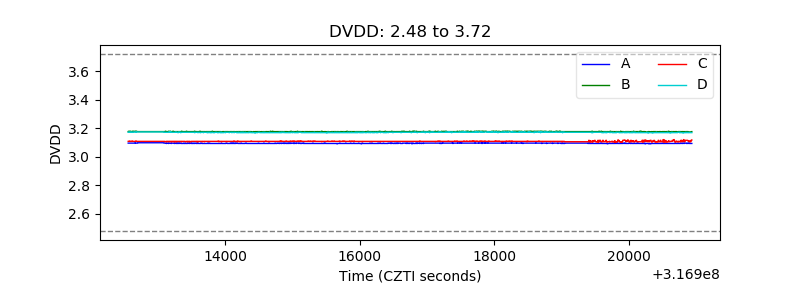

| D_VDD |  |

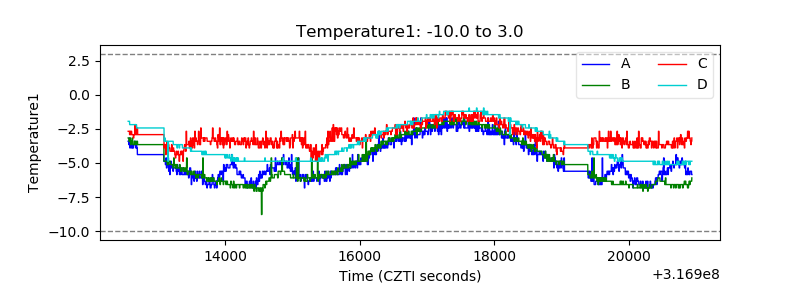

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

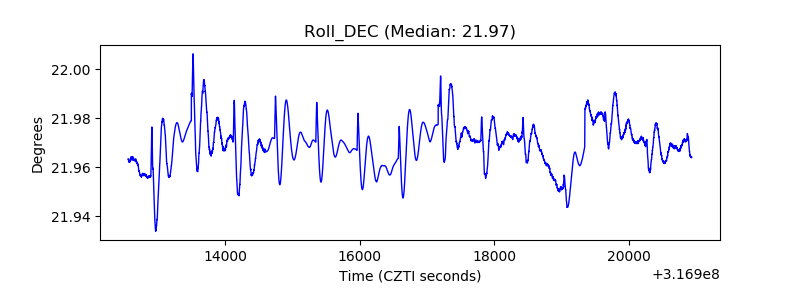

| _Roll_DEC |  |

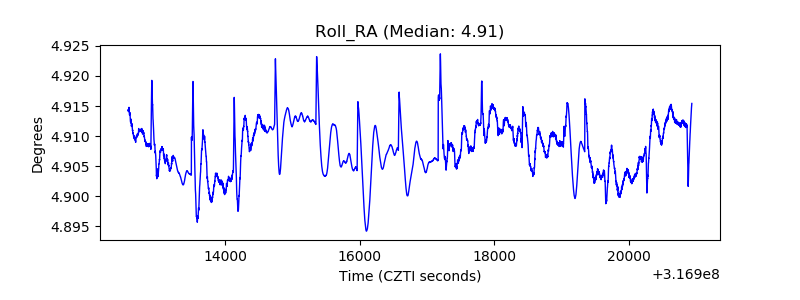

| _Roll_RA |  |
| Veto Counter |  |
