| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_004T03_9000003438_23270cztM0_level2.evt | modeM0/AS1A08_004T03_9000003438_23270cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,386,240 | 88,669,440 |
| Size | 502.0 MB | 84.6 MB |
| Events in quadrant A | 3,330,550 | 570,195 |
| Events in quadrant B | 3,409,604 | 577,149 |
| Events in quadrant C | 3,632,121 | 546,201 |
| Events in quadrant D | 5,112,463 | 522,018 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14145 | 2 |
| B | 0 | 14326 | 2 |
| C | 0 | 15137 | 2 |
| D | 0 | 19646 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6737 | 62 | 0.920291% |
| B | 6737 | 71 | 1.053882% |
| C | 6737 | 120 | 1.781208% |
| D | 6737 | 384 | 5.699866% |

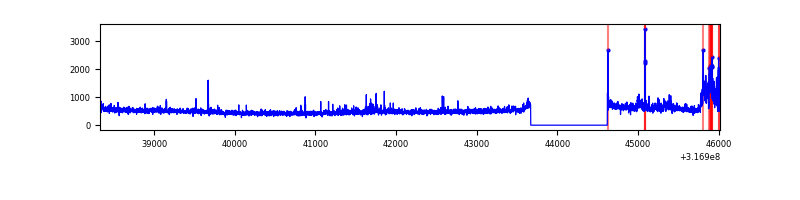

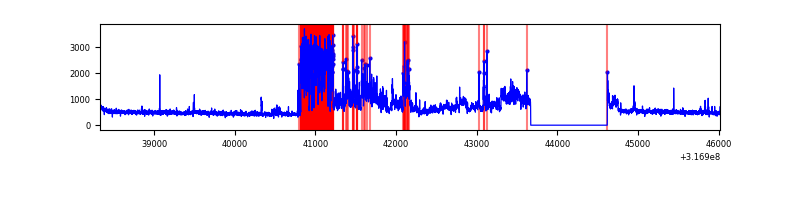

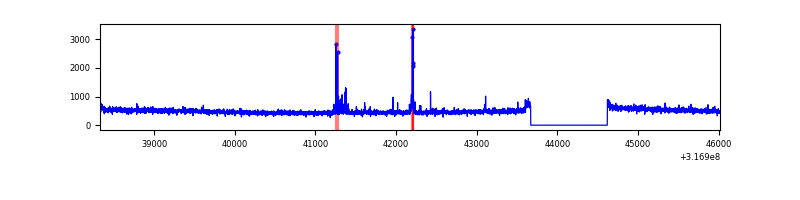

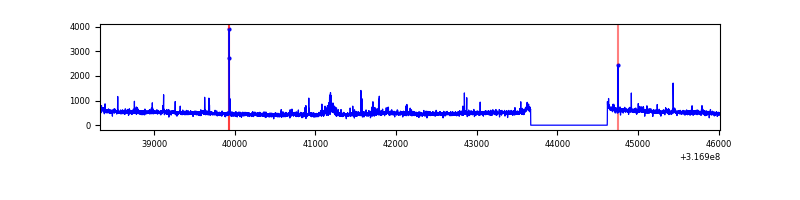

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6737 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7687 | 6737 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7687 | 6737 | 15 | 15 | 0.20% | 0.22% |  |
| D | 7687 | 6737 | 330 | 330 | 4.29% | 4.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 85500 | 495.82 | 842 | 825 | 170.8 |
| A | 13 | 254 | 10475 | 56.51 | 842 | 825 | 170.8 |
| A | 3 | 137 | 7403 | 38.52 | 842 | 825 | 170.8 |
| B | 3 | 64 | 67327 | 415.31 | 835 | 815 | 160.1 |
| B | 5 | 172 | 27195 | 164.72 | 835 | 815 | 160.1 |
| B | 12 | 111 | 19934 | 119.38 | 835 | 815 | 160.1 |
| C | 10 | 9 | 321905 | 1722.61 | 796 | 803 | 186.4 |
| C | 14 | 238 | 127833 | 681.48 | 796 | 803 | 186.4 |
| C | 0 | 207 | 75242 | 399.34 | 796 | 803 | 186.4 |
| D | 12 | 233 | 842102 | 4280.12 | 800 | 778 | 196.6 |
| D | 1 | 52 | 810511 | 4119.4 | 800 | 778 | 196.6 |
| D | 7 | 238 | 179080 | 907.09 | 800 | 778 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

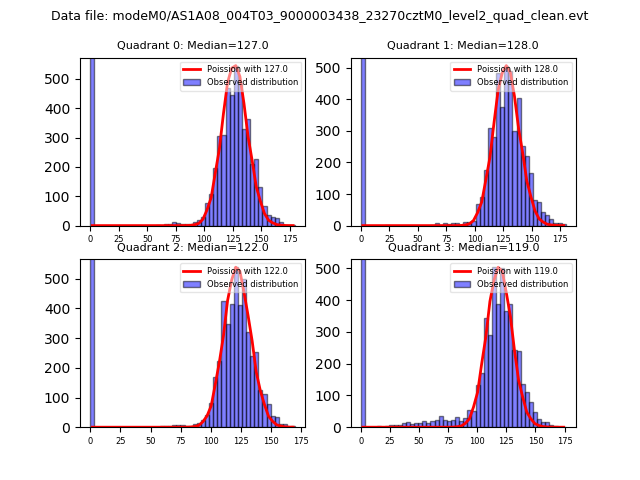

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

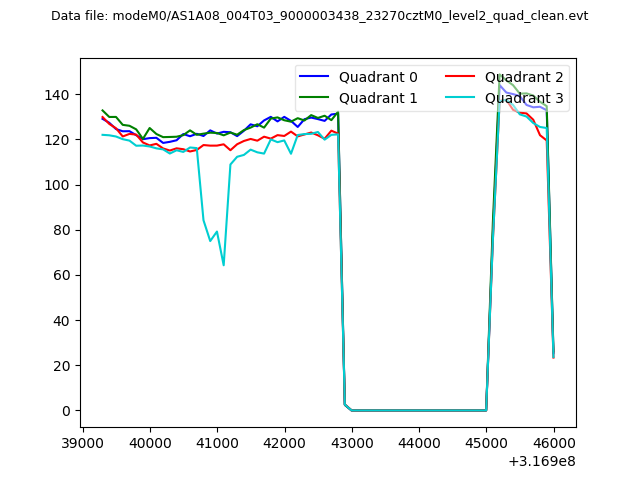

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

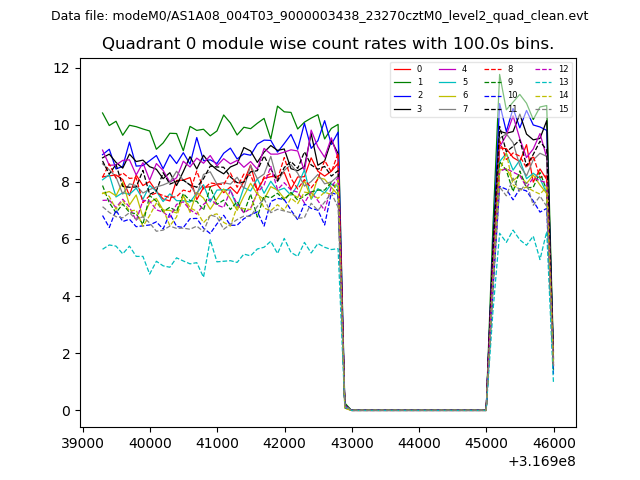

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

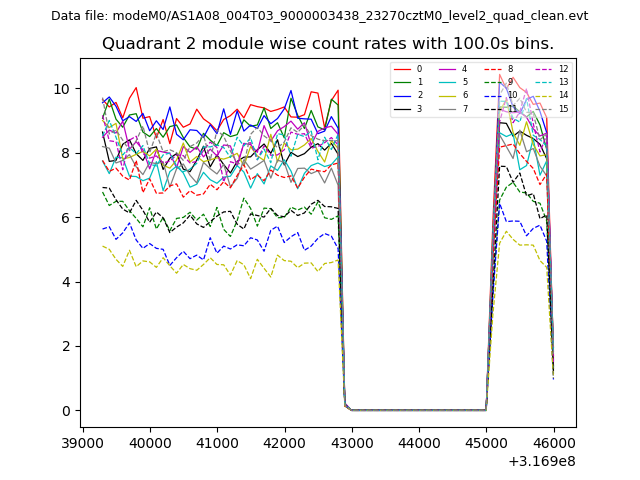

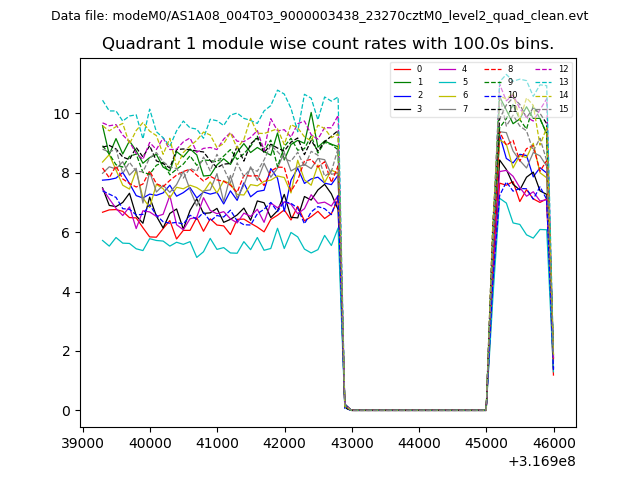

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

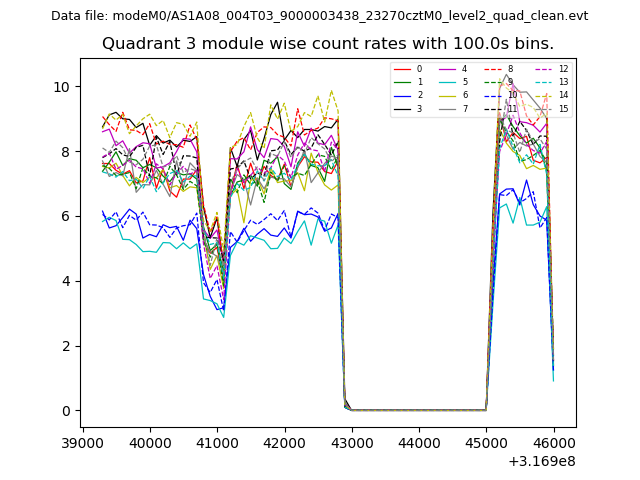

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

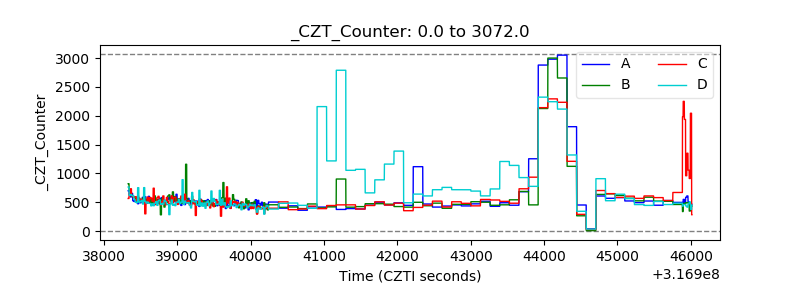

| CZT HV Monitor |  |

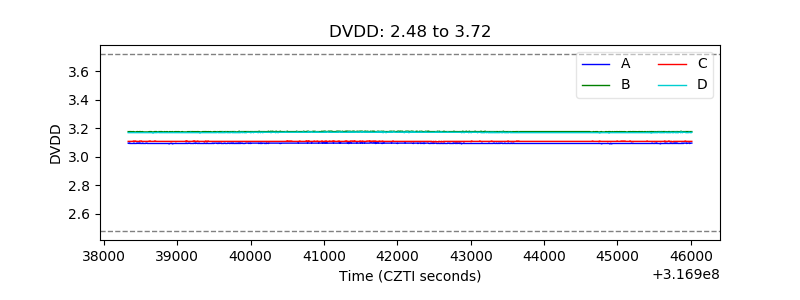

| D_VDD |  |

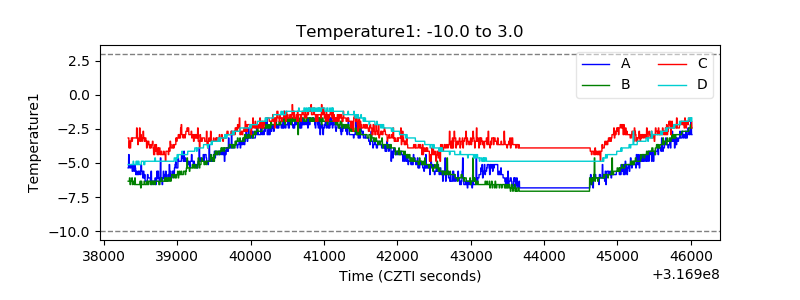

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

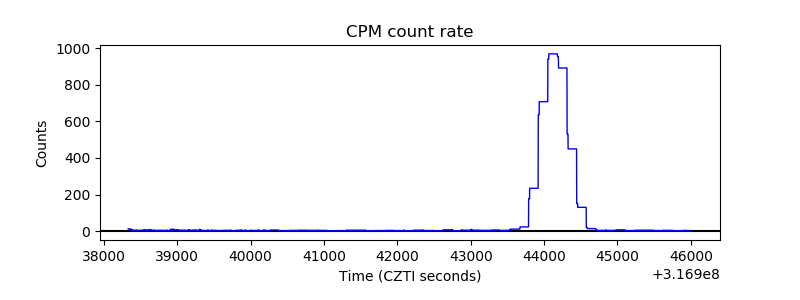

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

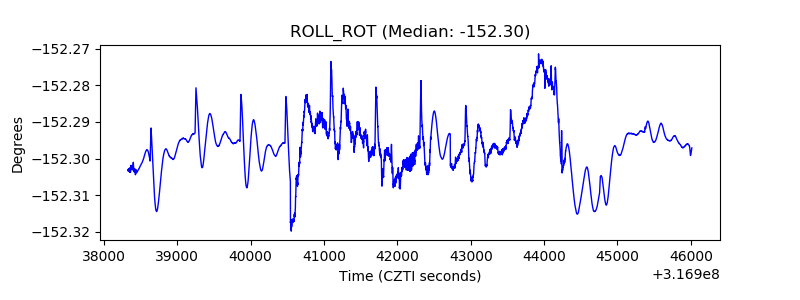

| _ROLL_ROT |  |

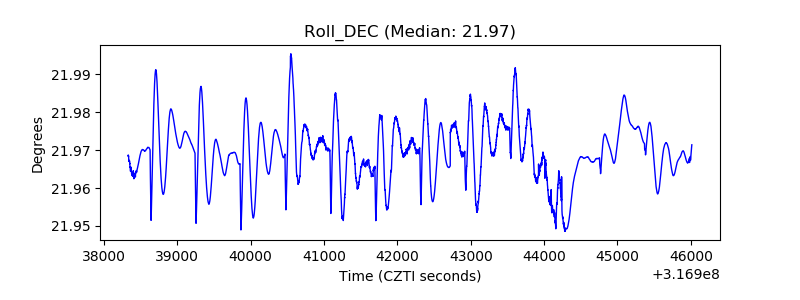

| _Roll_DEC |  |
| _Roll_RA |  |

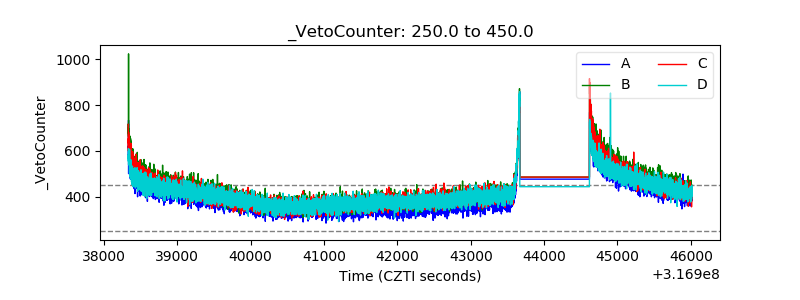

| Veto Counter |  |
