| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_005T01_9000003440_23284cztM0_level2.evt | modeM0/AS1C05_005T01_9000003440_23284cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,404,910,080 | 287,403,840 |
| Size | 1.3 GB | 274.1 MB |
| Events in quadrant A | 9,698,386 | 1,826,347 |
| Events in quadrant B | 9,989,437 | 1,860,332 |
| Events in quadrant C | 10,304,252 | 1,789,029 |
| Events in quadrant D | 11,106,946 | 1,754,840 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 434 | 0 |
| B | 0 | 434 | 0 |
| C | 0 | 434 | 0 |
| D | 0 | 434 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43659 | 4 |
| B | 0 | 43986 | 4 |
| C | 0 | 45134 | 4 |
| D | 0 | 48443 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21418 | 108 | 0.504249% |
| B | 21419 | 154 | 0.718988% |
| C | 21419 | 349 | 1.629394% |
| D | 21419 | 281 | 1.311919% |

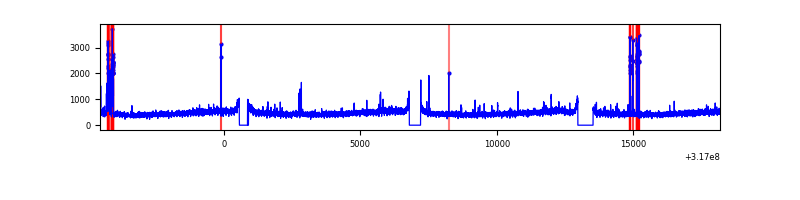

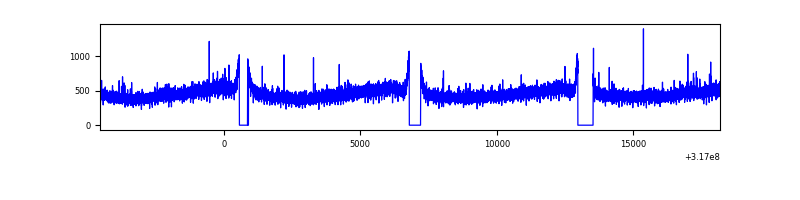

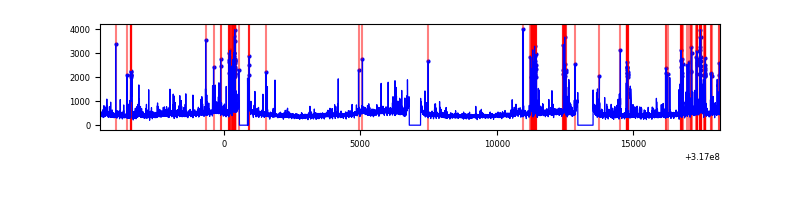

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22713 | 21421 | 0 | 0 | 0.00% | 0.00% |  |
| B | 22714 | 21422 | 2 | 2 | 0.01% | 0.01% |  |
| C | 22714 | 21423 | 70 | 70 | 0.31% | 0.33% |  |
| D | 22714 | 21423 | 171 | 171 | 0.75% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 33182 | 60.91 | 2512 | 2453 | 504.5 |
| A | 3 | 137 | 22854 | 40.44 | 2512 | 2453 | 504.5 |
| A | 0 | 226 | 21396 | 37.55 | 2512 | 2453 | 504.5 |
| B | 4 | 206 | 77285 | 157.98 | 2508 | 2442 | 473.8 |
| B | 12 | 111 | 59676 | 120.81 | 2508 | 2442 | 473.8 |
| B | 11 | 111 | 52575 | 105.82 | 2508 | 2442 | 473.8 |
| C | 10 | 9 | 433809 | 768.8 | 2411 | 2427 | 561.1 |
| C | 14 | 238 | 384004 | 680.03 | 2411 | 2427 | 561.1 |
| C | 2 | 16 | 48960 | 82.93 | 2411 | 2427 | 561.1 |
| D | 1 | 52 | 607587 | 1022.48 | 2441 | 2370 | 591.9 |
| D | 12 | 233 | 322404 | 540.68 | 2441 | 2370 | 591.9 |
| D | 7 | 238 | 284797 | 477.14 | 2441 | 2370 | 591.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

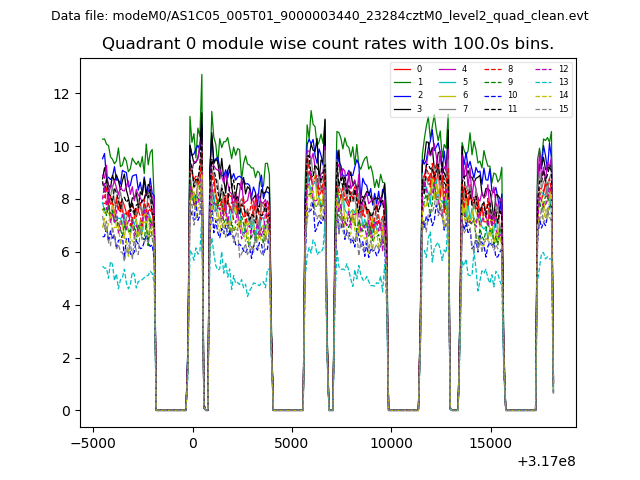

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

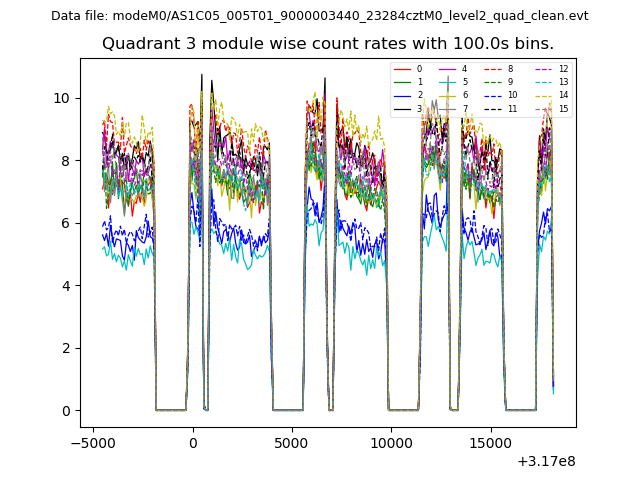

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
