| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T02_9000003444_23313cztM0_level2.evt | modeM0/AS1A07_148T02_9000003444_23313cztM0_level2_quad_clean.evt |
| Size (bytes) | 654,235,200 | 124,306,560 |
| Size | 623.9 MB | 118.5 MB |
| Events in quadrant A | 4,358,094 | 793,776 |
| Events in quadrant B | 4,403,681 | 803,540 |
| Events in quadrant C | 4,794,015 | 774,346 |
| Events in quadrant D | 5,636,930 | 757,597 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 186 | 0 |
| B | 0 | 186 | 0 |
| C | 0 | 186 | 0 |
| D | 0 | 186 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19174 | 2 |
| B | 0 | 19126 | 2 |
| C | 0 | 20111 | 2 |
| D | 0 | 23023 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9164 | 59 | 0.643824% |
| B | 9165 | 96 | 1.047463% |
| C | 9165 | 180 | 1.963993% |
| D | 9165 | 166 | 1.811238% |

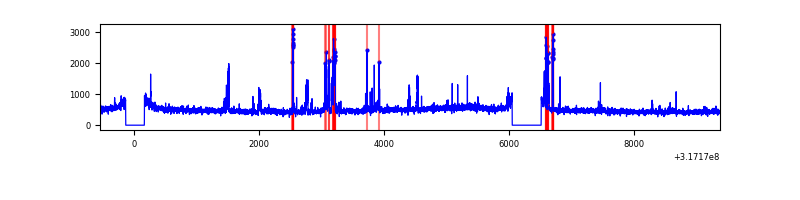

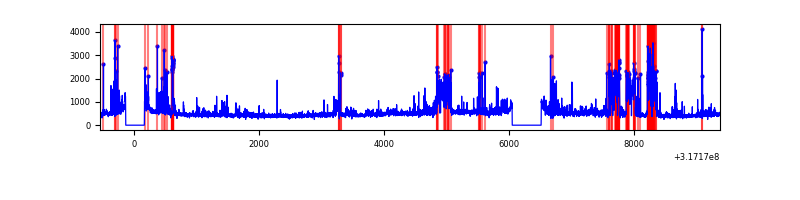

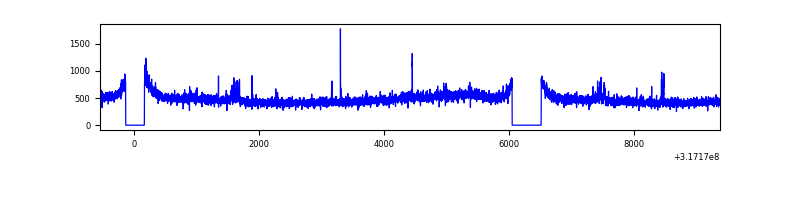

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9929 | 9166 | 2 | 2 | 0.02% | 0.02% |  |
| B | 9930 | 9167 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9930 | 9167 | 45 | 45 | 0.45% | 0.49% |  |
| D | 9930 | 9167 | 149 | 149 | 1.50% | 1.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 98443 | 433.79 | 1105 | 1081 | 224.4 |
| A | 13 | 254 | 13945 | 57.31 | 1105 | 1081 | 224.4 |
| A | 3 | 137 | 9954 | 39.53 | 1105 | 1081 | 224.4 |
| B | 0 | 230 | 43106 | 197.82 | 1101 | 1073 | 212.5 |
| B | 12 | 111 | 26397 | 119.18 | 1101 | 1073 | 212.5 |
| B | 11 | 111 | 23233 | 104.29 | 1101 | 1073 | 212.5 |
| C | 10 | 9 | 442416 | 1751.96 | 1065 | 1071 | 251.9 |
| C | 14 | 238 | 165561 | 652.96 | 1065 | 1071 | 251.9 |
| C | 7 | 247 | 26617 | 101.41 | 1065 | 1071 | 251.9 |
| D | 1 | 52 | 1276396 | 4855.91 | 1071 | 1039 | 262.6 |
| D | 7 | 238 | 262294 | 994.72 | 1071 | 1039 | 262.6 |
| D | 2 | 234 | 40998 | 152.14 | 1071 | 1039 | 262.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

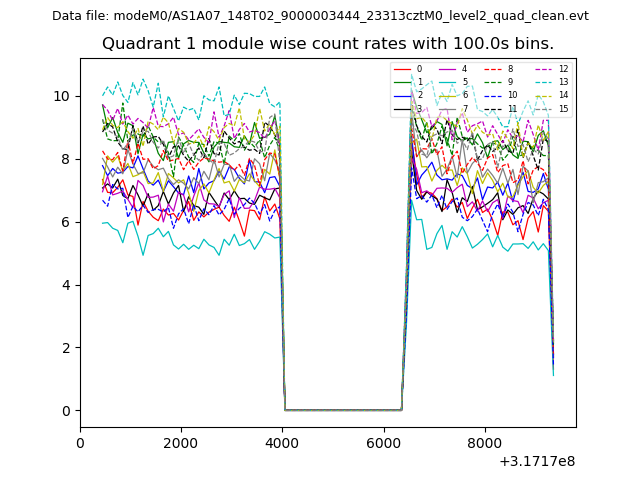

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

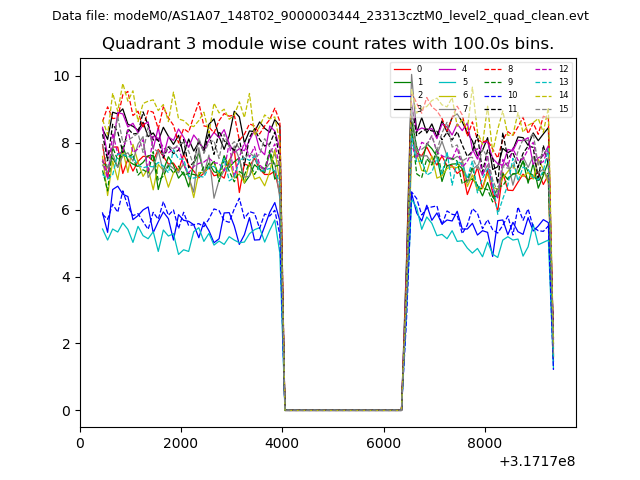

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

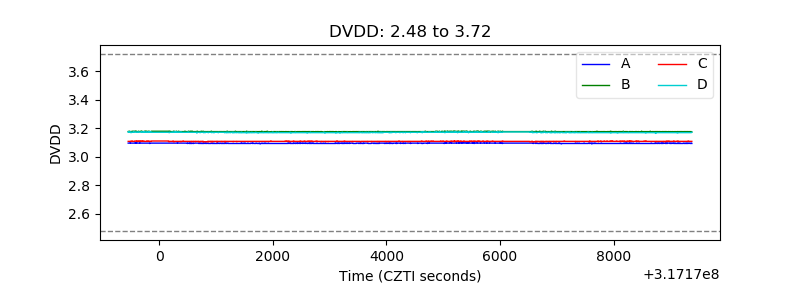

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

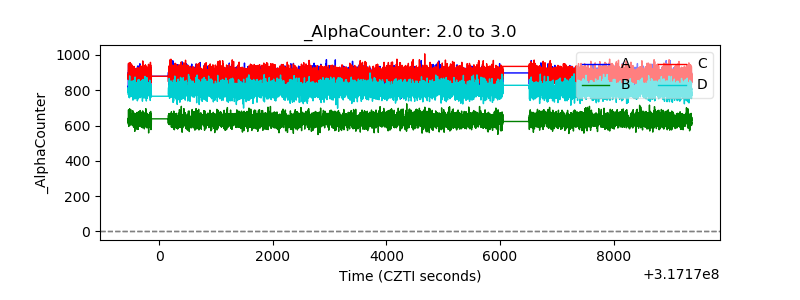

| Alpha Counter |  |

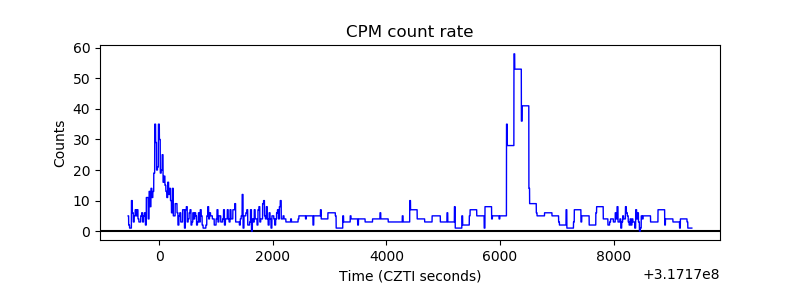

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
