| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_148T05_9000003446_23327cztM0_level2.evt | modeM0/AS1A07_148T05_9000003446_23327cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,590,456,960 | 236,560,320 |
| Size | 1.5 GB | 225.6 MB |
| Events in quadrant A | 9,094,032 | 1,499,324 |
| Events in quadrant B | 9,186,884 | 1,527,526 |
| Events in quadrant C | 10,795,280 | 1,458,313 |
| Events in quadrant D | 17,814,265 | 1,375,661 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39399 | 4 |
| B | 0 | 39491 | 4 |
| C | 0 | 44198 | 4 |
| D | 0 | 65998 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18919 | 168 | 0.887996% |
| B | 18919 | 226 | 1.194566% |
| C | 18919 | 499 | 2.637560% |
| D | 18919 | 3086 | 16.311644% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21274 | 18921 | 23 | 23 | 0.11% | 0.12% |  |
| B | 21274 | 18921 | 14 | 14 | 0.07% | 0.07% |  |
| C | 21274 | 18920 | 162 | 162 | 0.76% | 0.86% |  |
| D | 21274 | 18922 | 2704 | 2704 | 12.71% | 14.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 173832 | 371.06 | 2304 | 2250 | 462.4 |
| A | 2 | 79 | 42560 | 87.17 | 2304 | 2250 | 462.4 |
| A | 13 | 254 | 30015 | 60.04 | 2304 | 2250 | 462.4 |
| B | 0 | 229 | 135281 | 304.91 | 2287 | 2228 | 436.4 |
| B | 12 | 111 | 54456 | 119.69 | 2287 | 2228 | 436.4 |
| B | 4 | 216 | 49630 | 108.63 | 2287 | 2228 | 436.4 |
| C | 10 | 9 | 1476315 | 2859.25 | 2191 | 2203 | 515.6 |
| C | 14 | 238 | 346321 | 667.47 | 2191 | 2203 | 515.6 |
| C | 0 | 207 | 269973 | 519.38 | 2191 | 2203 | 515.6 |
| D | 1 | 52 | 8093152 | 15650.13 | 2092 | 2029 | 517.0 |
| D | 7 | 238 | 1486966 | 2872.22 | 2092 | 2029 | 517.0 |
| D | 13 | 104 | 133468 | 254.23 | 2092 | 2029 | 517.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

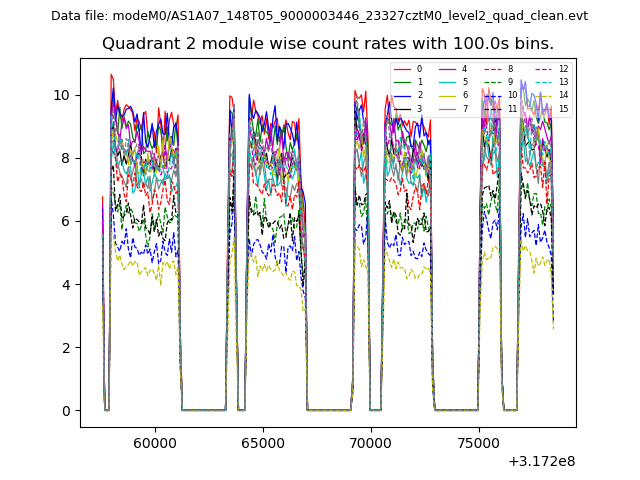

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

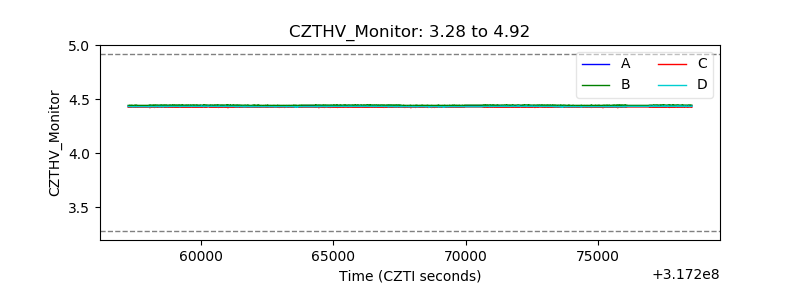

| CZT HV Monitor |  |

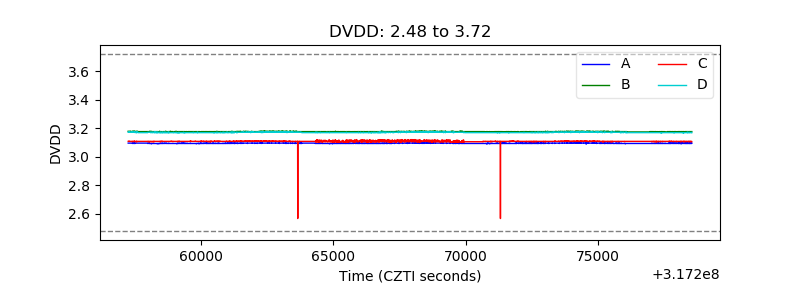

| D_VDD |  |

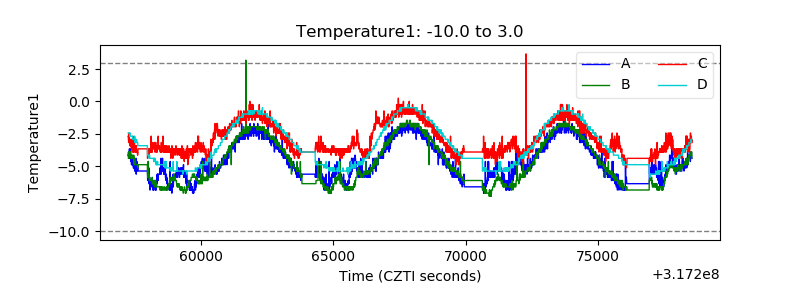

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

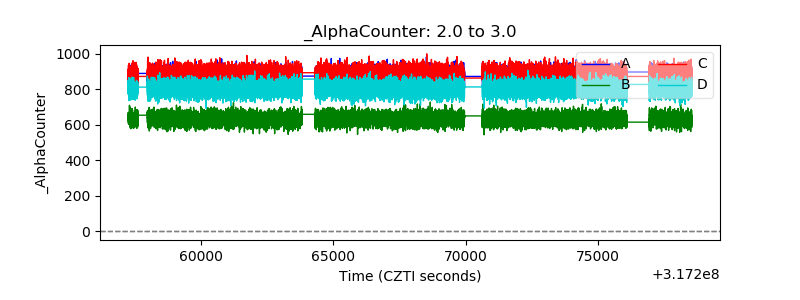

| Alpha Counter |  |

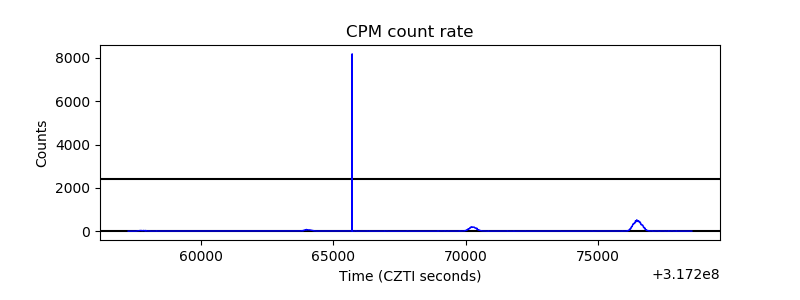

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
